Overview

Basic Info.

Model NO.
PS18T
Certification
CE
Customized
Customized
Supply Voltage
10-30V DC
Light
Infrared LED(850nm)
Warranty
2 Years
Detection Distance
20m
Delivery Time
Within 3 Days After Receipt of Money
Shipping Method
DHL,EMS,TNT,FedEx
Response Time
Max.4ms
No-Load Current
Emitter: Max.12mA; Receiver: Max.7mA
Housing Material
Housing: PC +ABS Wire: PVC
Application
Swing Barrier Gate Turnstiles
Transport Package
One Unit in One Plastic Bag
Specification
18mm
Trademark
G-TEK
Origin
Tianjin China
HS Code
9032900090
Production Capacity
5000 Units/Month

Product Description



Detailed Photos

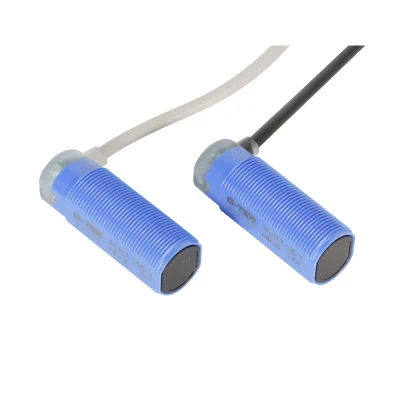

10-30V Opposed 20m Optical Position Sensor for Access Control
PS18T series photoelectric sensor is one economical plastic shell product that can be a replacement for PM18T, a New optical structure, that effectively suppresses light interference; the Special outlet design saves installation space.
This model is one, especially for turnstile gates, has a 20m detection range with high stability, is an attractive price, and is the most cost-effective product.

Features
1. The new optical structure can effectively suppress optical interference
2. Special air outlet design saves installation space
3. Strong stability, cost-effective



10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control



10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control



Product Parameters
Product Parameters
Photoelectric sensor PS18T
Detection type Opposed type
Detection object MinΦ18mm opaque object
Detection distance 20m
Supply voltage 10-30v DC
No-load current Emitter: Max.12mA; Receiver: Max.7mA
Response time Max.4ms
Light Infrared LED(850nm)
Action mode Selecting Light On/Dark On on a product model basis

Control output
NPN open collector, Load voltage: Max.30VDC,
Load current: Max.100mA,Voltage drop: Max.3.0VDC;
PNP open collector, Output voltage: supply voltage-1.5V,
Load current: Max.100mA;
Indicator Emitter Power indicator: Green; Receiver Action indicator: Red
Protection circuit Short-circuit protection, Reverse polarity protection
Ambient brightness Sunlight: Max.60000lux Fluorescent: Max.3000lux
Ambient temperature -30ºC~60ºC (No-freezing),Storage: -40ºC~80ºC
Ambient humidity 0~90%RH
Housing material Housing: Pc +ABS  Wire: PVC
Shape and size As dimension
Cable Emitter: black, Receiver: Grey
Protection rating IP67 (IEC)
Accessory Screw
Model
Installation Product Model Detection Distance

Opposed  type
PS18T-2ND 20m
PS18T-2NL 20m
PS18T-2PD 20m
PS18T-2PL 20m
Installation Instructions
10-30V Opposed 20m Optical Position Sensor for Access Control
Product Application


10-30V Opposed 20m Optical Position Sensor for Access Control

10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control
Certifications

10-30V Opposed 20m Optical Position Sensor for Access Control

10-30V Opposed 20m Optical Position Sensor for Access Control


Packaging & Shipping
10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control

10-30V Opposed 20m Optical Position Sensor for Access Control


Product self-inspection steps

1. Detect whether the installation position of the object and the proximity sensor has deviated, slacked, or skewed; whether there is slack, poor contact, or disconnection in the wiring and connection parts
2. Whether there is adhesion or accumulation of metal dust, etc.
3. Is there any abnormality in using temperature conditions and environmental conditions?
4. Set whether the flashing of the display lamp type is abnormal.
If you must be careful not to disassemble and repair by yourself during the inspection, and to easily find out the fault, you can investigate the operating state of the sensor through the connection with the portable detector, and then repair it according to the situation.

In order to make the photoelectric sensor work stably for a long time, it should be regularly checked with the same contents as the general control equipment to maintain its long-term function. The photoelectric sensor can also be stocked. Once a problem with the photoelectric sensor is found, we can replace it in time without affecting the use of the sensor.

10-30V Opposed 20m Optical Position Sensor for Access Control
Company Profile

Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider,  which was established in 2003 with business ranges from Proximity switches, photoelectric sensors, measurement, and safety light curtains to Laser rangefinder sensors, laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 in Xiqing District, Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacturing base.

10-30V Opposed 20m Optical Position Sensor for Access Control10-30V Opposed 20m Optical Position Sensor for Access Control
10-30V Opposed 20m Optical Position Sensor for Access Control10-30V Opposed 20m Optical Position Sensor for Access Control

10-30V Opposed 20m Optical Position Sensor for Access Control10-30V Opposed 20m Optical Position Sensor for Access Control10-30V Opposed 20m Optical Position Sensor for Access Control

Q: Is the product shipped and arrived fast?
A: The production cycle for large quantities of products takes 15-30 days, depending on the product.

Q: Can you provide professional advice promptly?
A: We have a professional technical team that can patiently help you answer all professional questions.

Q: Can you provide customized products/services?
A: Yes, we can provide customized products, but the customization needs to meet a certain quantity.

Q: How is the quality of the product? Is the quality stable?
A: G-TEK Sensors has been focusing on the sensor field for 23 years. The quality of the sensor has the double affirmation of the CE certificate and customer reputation.

Q: What is your MOQ?
A: We offer MOQ per piece; it depends on your specific order.

Q: Is there any relevant terms of service and warranty information?
A: We offer a warranty on all items. The sensor products are guaranteed for 15 months, and the light curtain and lidar products are guaranteed for 18 months. For after-sales questions, you can directly contact the product salesperson.

Q: Is there any relevant information available for download on the website?
A: Yes, if you want to download the relevant product manual, you can go to our official website to download it.

Q: Can I be your reseller?
A: Yes, we are looking for distributors in overseas markets.
