12-35V U-Shaped Infrared NPN Groove Optical Position Sensors

Buy high-quality 12-35V U-Shaped Infrared NPN Groove Optical Position Sensors direct from the factory. Accurate and durable, perfect for industrial use.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Product Parameters
  • Installation Instructions
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
PMK50T
Certification
CE
Customized
Customized
Supply Voltage
12~35V DC
No-Load Current
Max.25mA
Light
Infrared LED
Protection Circuit
Over-Voltage /Short Circuit Protection
Housing Material
Housing: ABS
Sensitivity Adjustment
Vr Adjustment
Delivery Time
Within 3 Days After Receipt of Money
Shipping Method
DHL,EMS,TNT,FedEx
Application
Elevator
Transport Package
Standard Carton Package
Specification
30mm
Trademark
G-TEK
Origin
Tianjin, China
HS Code
9032900090
Production Capacity
1000 Sets/Month

Product Description

Detailed Photos

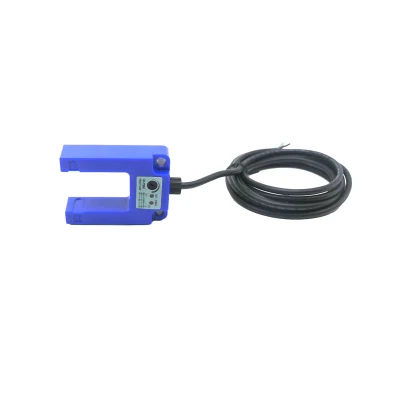

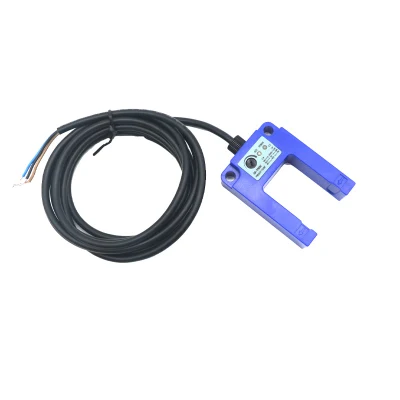

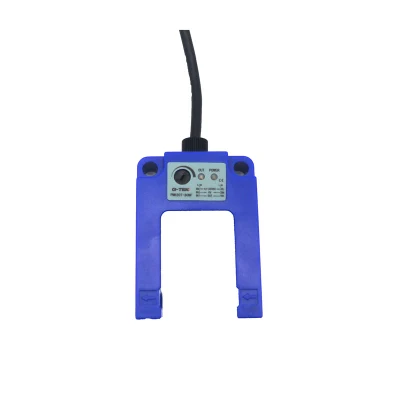

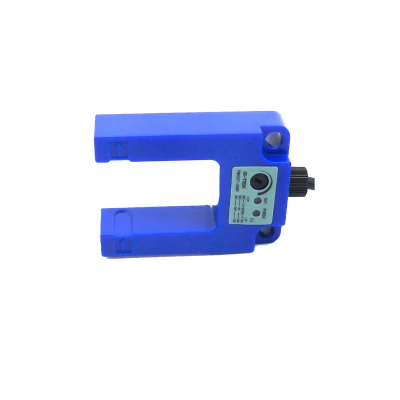

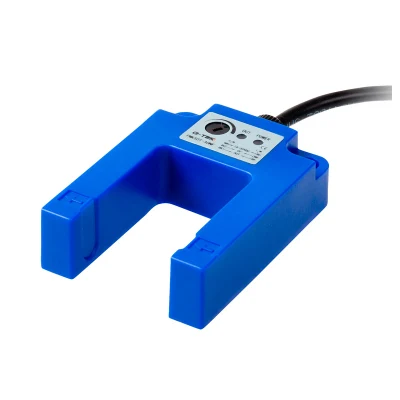

Opposed type,Cable type,Groove width 30mm,CE certification
PMK50T Groove Photoelectric Sensor is mainly used for the layer detection and position limit of elevator.

12-35V U-Shaped Infrared NPN Groove Optical Position Sensors

12-35V U-Shaped Infrared NPN Groove Optical Position Sensors
12-35V U-Shaped Infrared NPN Groove Optical Position Sensors

Product Parameters
Product Parameters
Photoelectric sensor PMK50T DC4-wires
Detection type Opposed type
Detection object MinΦ13mm opaque object
Groove Width 30mm
Supply voltage 12~35V DC
No-load current Max.25mA
Response time Max.1ms
Light Infrared LED
Sensitivity adjustment VR adjustment
Action mode Selecting L .On/D .On by changing wire connecting order

Control output
NPN,PNP binary output
Indicator Power indicator: green;Action indicator: red
Protection circuit Over-voltage protection, short circuit protection
Insulation resistance Min.100MΩ
Anti-interference ±4KV analog square wave interference (width: 0.1ms)
Withstand voltage Voltage: 1000VAC, time: 60s
Shock resistance Acceleration: 500m/s²
Anti-vibration Frequency: 10~50Hz,amplitude: 1mm
Ambient brightness Sunlight: Max.11000lux, fluorescent:Max.3000lux
Ambient temperature -25ºC~65ºC
Ambient humidity 0~90%RH
Housing material Housing: ABS
Shape and size As dimension
Cable Φ 5, 4×0.2mm²
Protection rating IP67 (IEC)
Model
Installation Product Model Detection Distance

Opposed  type
PMK50T-30F 30mm
Installation Instructions

12-35V U-Shaped Infrared NPN Groove Optical Position Sensors

Certifications
12-35V U-Shaped Infrared NPN Groove Optical Position Sensors



Company Profile

12-35V U-Shaped Infrared NPN Groove Optical Position Sensors12-35V U-Shaped Infrared NPN Groove Optical Position Sensors

12-35V U-Shaped Infrared NPN Groove Optical Position Sensors 12-35V U-Shaped Infrared NPN Groove Optical Position Sensors 12-35V U-Shaped Infrared NPN Groove Optical Position Sensors 12-35V U-Shaped Infrared NPN Groove Optical Position Sensors 12-35V U-Shaped Infrared NPN Groove Optical Position Sensors
FAQ

Q: What kind of products do you manufacture?
A: Our products includes photocell sensor, proximity switch, infrared light curtain, Vehicle separator, Loop detector and laser radar.,etc.

Q: Can I get some samples?
A: Yes, Sample orders are welcomed.

Q: Have photocell sensors 100% assembled well in stock?
A: We have some standard photocell sensors in stock with limited quantity; While
almost all photocell sensors will be newly produced according to your order.

Q: What is the delivery time?
A:  15-30 days for mass production depends on different products

Q: What is your MOQ?
A: We provide small MOQ for each item; it depends on your specific order.

Q: Do you have customization service?
A: Yes, We can provide customized products while the customization needs to meet certain quantity.

Q: Do you test all goods before delivery?
A: Yes, We have 100% test before delivery.

Q: What is your payment term?
A: We usually use 100% T/T in advance; West union and Paypal are also available for small order.
11
Q: Do you provide warranty for the goods?
A: Yes, We provide warranty for all the goods from us. For the sensor product the warranty is 15 months, For the light curtain , laser radar product the warranty is 18 months.

Q: May I visit your factory?
A: Sure, You are always welcome to visit us.
