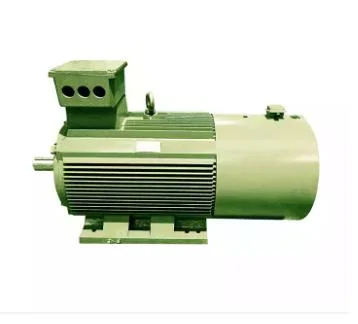

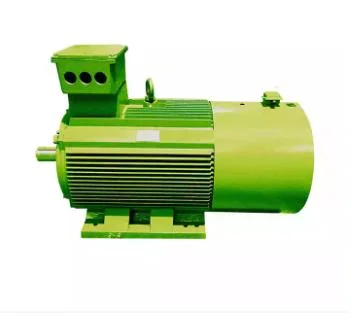

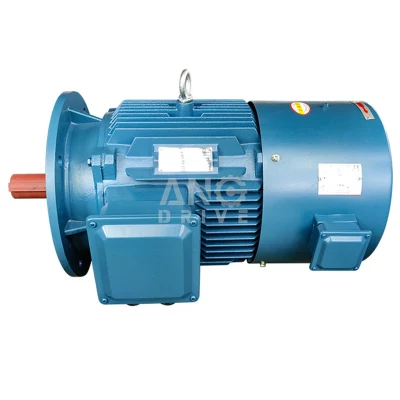

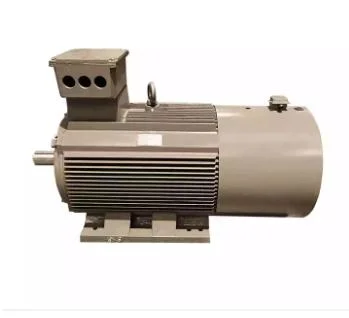

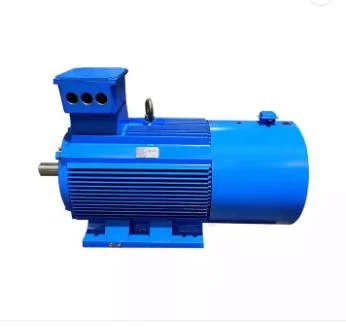

Product Description
| Technical Data | |
| Center height of the frame | 400mm |
| Power range | 450kw |
| Rated voltage | 690V(special should order) |
| Rated Frequency | 50HZ or 60HZ |
| Protection class | IP55 |
| Insulation class | F |
| Duty type | S1 |
Type of Meaning
Example: YJTG200L1-6
YJTG state for Type of motor
200 state for Center Height
L state for Frame Size
1 state for Core Length
6 state for the Number of Pole
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40ºC and -15ºC.
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25ºC.
4. Termination: Y(star) connection below Frame 280. (Delta) connection for Frame H315-H355.
5. Operation Mode(duty): S1.
Motor Construction
1. Protection Degree: IP44/IP54
2. Cooling Method: IC416
3. It can carry high-resolution sensors (the electro-optical encoder, the rotary transformer, and the tacho-generator) according to the customer's requirement.
4. It can carry magnetic brake(both circulation and lose electric brake is ok), gearspeed reducer, etc.
5. Standard terminal box mounting is on the right-hand side seen from the shaft end of the motor. As an alternative, mounting at the top or on the left-hand side is possible on request.
Mounting
Frame Size(H80-H160): IM B3, B5, B35, V1, B6, B7, V3,V5, V6, V15, etc.
Frame Size(H180-H280): IM B3, B5, B35, V1.
Frame Size(H315-H355): IM B3, B35, V1
