Basic Info.
Model NO.
S30
Installation Form
Axle Sleeve Type
Protection
IP51
Voltage
5V/8-30V
Diameter
Customized
Shaft Diameter
Customized
Operating Temperature
-30~85 Deagrees
Transport Package
Carton
Specification
0.5kg
Trademark
Fagor
Origin
China
Production Capacity
500/Pieces/Month
Product Description

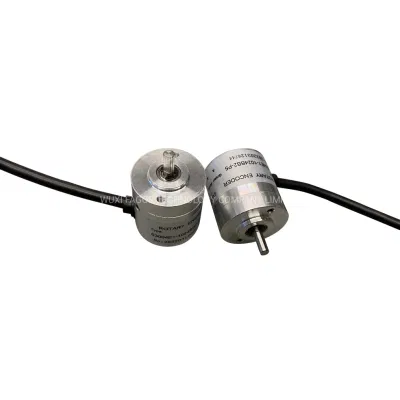

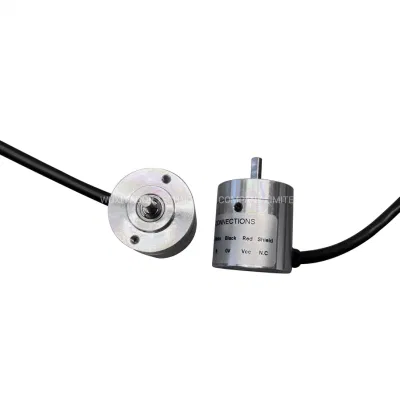

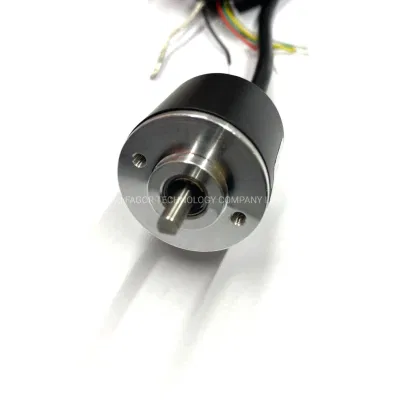

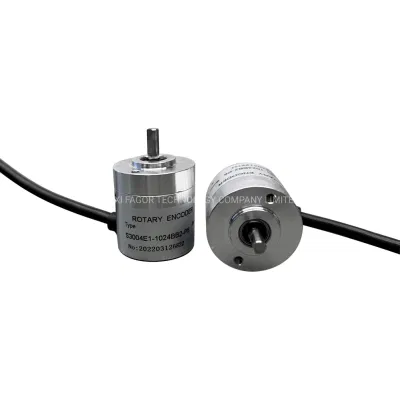

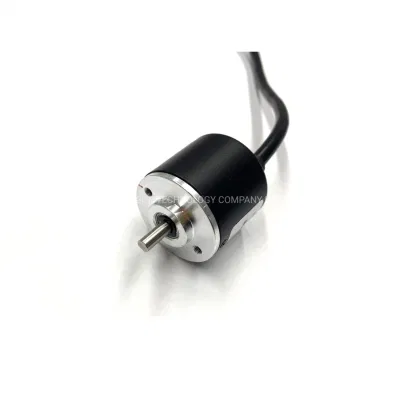

INTRODUCTION:Small-scale encoder (External Diameter φ25, φ30)
1.Fit the need of marketing position, includes a base point output (Phase Z).
2.Full impulse under 1024. lt is suitable for narrow area application because it is small, light and has good performance. ORDERING GUIDE:
WIRING TABLE
| Signal | A | B | Z | A | B | Z | Vcc | GND |
| Color | Green | White | Yellow | Brown | Gray | Orange | Red | Black |
MECHANICAL SPECIFICATION
| Max. Shaft Speed (r/min) | Starting Torque | Max. Shaft Loading | Shocking | Vibration |
| 5000 | <0.03Nm | Radial:15N, Axial:10N | 50G/11 ms | 10G 10-2000Hz |
| Rotor Inertia | Operating Temperature | Storage Temperature | Protection | Weight |
| 4<10-8kgm² | -30ºC~85ºC | -35ºC~95ºC | IP51 | 100g |
ELECTRICAL SPECIFICATION
| Output Circuit | Open Collector | Voltage | Push-Pull | Line Drive |
| Voltage Vcc | DC 5, 8 - 30 | DC 5, 8 - 30 | DC 5, 8 - 30 | 5 |
| Current | ≤80 mA | ≤80 mA | ≤80 mA | ≤150 mA |
| Load Current | 40mA | 40mA | 40mA | 60mA |
| High-level output | MIN Vcc*70% | MIN Vcc-2.5V | MIN Vcc-1.5V | MIN 3.4V |
| Low-Level output | MAX 0.4V | MAX 0.4V | MAX 0.8V | MAX 0.4V |
| Rise Time Tr | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
| Fall Time Tf | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
| Max Responding Frequency | 200kHz | 200kHz | 200kHz | 200kHz |
OUTPUT PHASE SHIFT
DIMENSION
