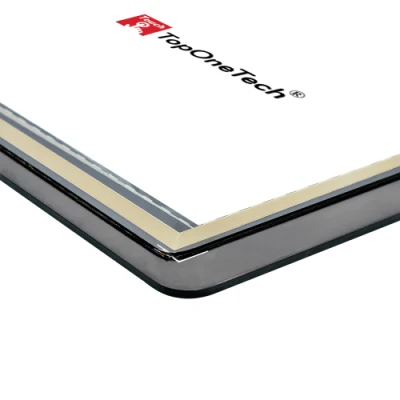

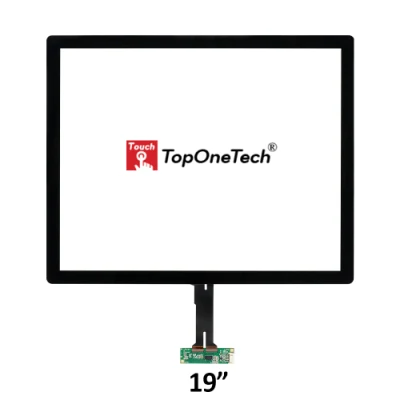

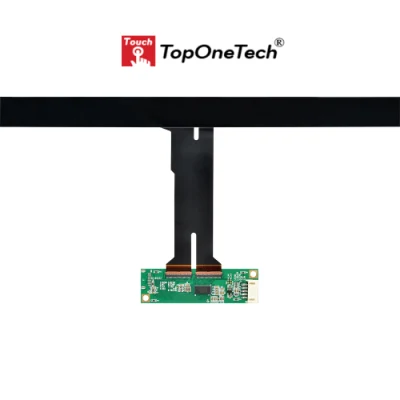

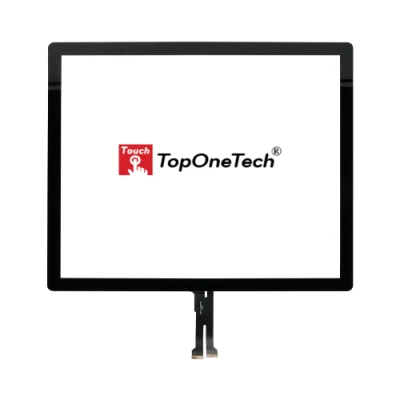

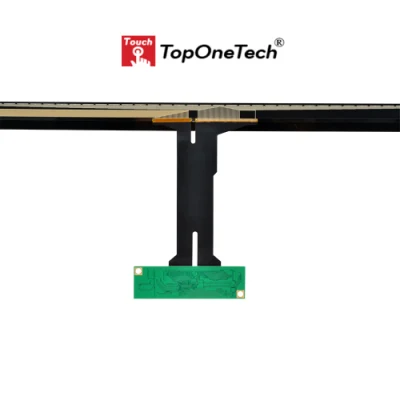

Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module

Get the best Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module from our factory. High-quality and durable products guaranteed.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
TOT190UCA111
Touch Type
Projected Capacitive
Number of Touches
Multi Touch (10)
Active Area
14.82" × 11.85"/ 376.32mm × 301.06mm
Interface
USB (Standard), I2c (Optional)
Overall Thickness
2.7mm
Cover Glass Thickness
1.8mm
Operating Temp
-20° to 70°c
Humidity
Rh <90% (Non-Condensing)
Input Methods
Finger, Gloved Hand, Passive Stylus
Regular Warranty
1year
MOQ
1 Piece
Delivery Time
5-8 Working Days
Certification
CCC, Ce, RoHS, FCC
Transport Package
10 Piece Per Carton
Specification
16.60" × 13.65" × 0.11"
Trademark
TopOneTech
Origin
Shenzhen China
HS Code
8548900030
Production Capacity
5000 Pieces/Year

Product Description

Toponetech's 19 inch projected capacitive (PCAP) touchscreens through various touch panel structures including anti sacratched glass layers.
Due to its highly durable and smooth surface,projected capacitive touch screen is suitable for industrial touchscreen display applications,Gaming,
Transprotation,and so on.the waterproof technology of Projected capacitive touchscreen, which can be operated with Works with water,dust,oil,
moisten and provides a high quality touch experience under harsh condition. (up to 10 touch points). Toponetech offers both standard and custom
industrial display sizes, Toponetech's 19 inch projected capacitive touch screens are form, fit or function replacements for 3M™ and Elo™ touch
sensors.
Customizable:Top One Tech® offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and surface treatments such as anti-glare.


Specifications:
Part Number(s) PCAP (Worldwide) -TOT190UCA111
Technology PCAP (TopOneTech® Projected Capacitive)
Number of Touches Multi Touch (10)
Input Methods Finger
Gloved hand
Passive stylus
Dimensions sizes from 7" to 55"
Active Area (mm) 14.82" × 11.85"/ 376.32mm × 301.06mm
Touch Panel Dimensions 16.60" × 13.65" ×0.11" /421.6mm × 346.6mm × 2.7mm
Light Transmittance ≥ 90%
Haze < 1%
Overall Thickness 2.7mm
Cover Glass Thickness 1.8mm
Surface Treatment Anti-glare  (optional)
Anti-fingerprint (optional)
Anti-smudge (optional)
Durability Over 50 million touches in one location
Positional Accuracy ± 1.5mm
Interface USB (Standard), I2C (Optional)
Report Rate ≥ 100Hz
Operating System Windows XP
Windows 7
Windows 8
Windows 1
Linux
Android
Utilities Multiple monitor
Touch zones
Various touch modes
Operating Temperature -20° to 70°C (Non Condensing)
Humidity RH <90% (Non-Condensing)
Safety Approvals CE,FCC,ERP
Warranty 1-year limited warranty
Note Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.

Mechanical Dimensions
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module

Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module
Custom OEM ODM 19 Inch Pcap Capacitive Multiple 10 Point USB Touch Screen Sensor with Thin Bezel Shaped Toughened Glass for Optical Bonded Industrial LCD Module

Other PCAP Touch Screen:
Size Ratio Thickness(mm) Controller Connector type AA(MM) OD(MM) Part Number
5" 16:10 1.95 GT911 USB 108.60*65.40 116.91*75.54 TOT005UCA111
7" 16:09 2 ILI2511 I2C 154.60*86.32 173.03*115.50 TOT007UCA111
8" 4:03 1.3 GT911 USB 162.15*121.45 175.85*137.31 TOT008UCA111
10.1" 16:09 2 ILI2511 USB 216.58*135.36 246.69*165.70 TOT101UCA111
10.4" 4:03 2.9 WEIDA USB 212.80*160.20 264.30*203.80 TOT104UCA111
12.1" 4:03 3 WEIDA USB 248.00*186.50 291.84*195.09 TOT121UCA111
15" 4:03 3.9 ILI2302 USB 305.00*229.01 339.85*263.85 TOT150UCA111
15.6" 16:09 2 WEIDA USB 344.23*193.954 386.72*236.85 TOT156UCA111
17" 4:03 2.8 WEIDA USB 337.92*270.34 382.00*314.00 TOT170UCA111
18.5" 16:09 2.8 WEIDA USB 409.80*230.40 458.00*283.00 TOT185UCA111
19" 4:03 2.8 WEIDA USB 377.32*302.05 414.32*302.50 TOT190UCA111
21.5" 16:09 2.8 WEIDA USB 476.64*268.11 521.64*312.60 TOT215UCA111
23.6" 16:09 4.3 ILI2302 USB 523.50*295.20 582.20*362.50 TOT236UCA111
23.8" 16:09 4.35 ILI2302 USB 525.50*297.00 573.05*349.05 TOT238UCA111
24" 16:09 3.3 ILI2302 USB 519.50*325.10 556.20*359.06 TOT240UCA111
27" 16:09 4.3 ILI2302 USB 598.02*336.02 649.03*389.03 TOT270UCA111
32" 16:09 4.3 ILI2302 USB 698.70*393.30 754.70*449.30 TOT320UCA111
