Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm

Shop our Cylindrical Optical Lens Round Shape with AR Coating in various sizes. As a factory, we offer top quality lenses for your optical needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
yt313
Shape
Single-lens
Material
Optical Glass
Lenses Color
Clear
Certification
RoHS
Customized
Customized
Coating
HC
Color
Transparent
Polished
Yes
Diameter
1.5-300mm
Diameter Tolerance
+/-0.02 mm
Thickness Tolerance
+/-0.02mm
Surface Quality
60/40, 40/20 or Better
Clear Aperture
90%
Centring Error
<3 Arc Minute
Transport Package
Safety Green Carton
Specification
25
Origin
Changchun
HS Code
9001909090
Production Capacity
40000/Year

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description

Optical Plano-Convex/aspheric Cylindrical Lens(BK7) , Ge, UV-grade fuse silica (JGS1, JGS2 and JGS3) and other optical glass

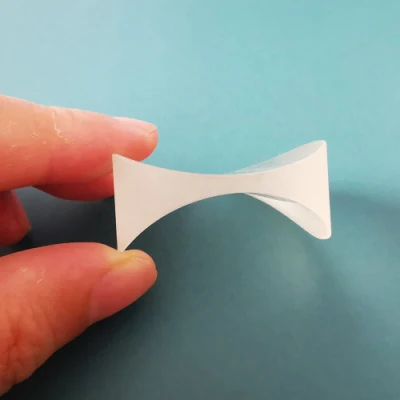

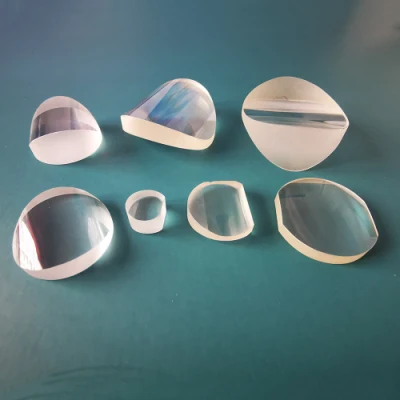

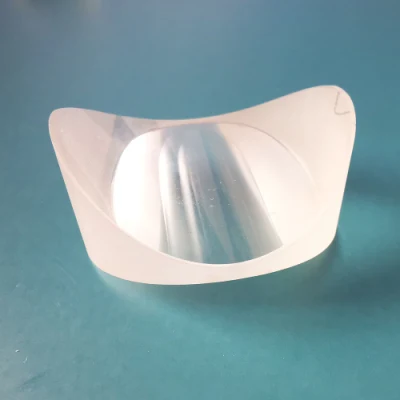

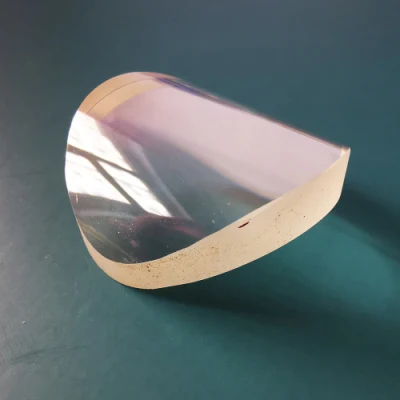

Changchun Yutai Optics Co., Ltd. can offer many kinds of normal cylindrical lenses.Including Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave, Meniscus, Aspherical Cylindrical lens, Toroidal mirror etc.. Cylindrical lens is used to correct astigmatism in the eye, and, in rangefinders, to produce astigmatism, stretching a point of light into a line...They are available in either plano concave or plano convex configurations.

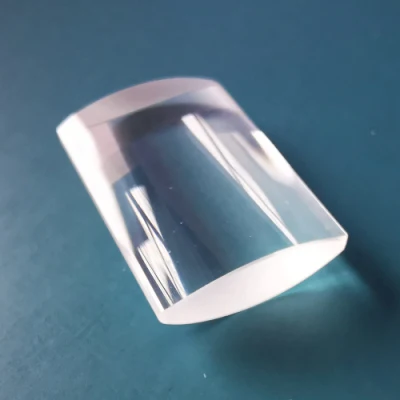

Plano convex cylinder lenses are ideal for UV beam shaping, or for applications operating in harsh or rugged environments. Focusing light in only one dimension, cylinder lenses are commonly used with linear sensor arrays, or to create a line from a laser source.


specification:
Material optical glass
Design Wavelength 1.5-300mm
Surface Figure λ/2
Diameter Tolerance +0.2, -0.2 mm
Thickness Tolerance ±0.2 mm
Paraxial Focal Length ±2%
Centration <3 arc minutes
Clear Aperture >85%
Surface Quality 60-40 scratch and dig
Protective Bevel 0.25 mm x 45°

Other Items

Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm
Factory information

Yutai Optics, we specialize in the design and volume manufacturing of high performance optical components such as lens,prisms, windows,filters,mirrors and more for use in optical instruments and laser systems, as well as for  telecommunications,medical, environment monitoring industry,material is widely ranged from optical glass to IR and UV glass.
    As a Fast-growing supplier in Optics, Yutai Optics offers excellent service and good quality items,our products have been appreciated by many European and American customers,of course we build a long-term cooperation.YuTai Optics has quickly established itself as a leader in optical components from its advanced technology and quality control.

Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm

Our Advantage

Sales Team
Yutai Optics has a professinal sales team with excellent service, we tracking from inquiry to delivery of items.We try our best to meet each customers'request.

Production Team
Yutai Optics has many experienced engineers and advanced machines, they are the important guarantee for the higher quality products.Our advanced production machines list:
Ring polishing machine, Single axis machine,  Two axis machine, Four axis machine,Centering edging machine,Mechanical milling machine,Spectrograph,  Grinding machine,nanotech.250upl,talysurfi120.

Inspection Team
Advanced testing equipment and methods are important guarantee for the production of high-precision products.Our testing machine is ZYGO, Stereo interferometer,Horizontal interferometer.We provide testing report for each batch for your items.

Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm
Process for most optics
Material-cutting-rounding-milling-grinding-polishing-edging-cleaning-coating-gluing-edging-blacking-accembly-packing-shipping

Packaging & Shipping
 1 Package Detail: A. Standard carbon and envelop with plastic foam.
                               B. Safety green carton.
                               C. Customized.

Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm


2 Delivery Detail: Within 30 days.(Also depand on the quantity) Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm



Payment:

Cylindrical Optical Lens Round Shape with Ar Coating D10 20 30 38.1mm



Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
