Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor

Get accurate and reliable dissolved oxygen measurements with our Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor. We are a factory specializing in quality sensors.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DODS625
Item
Dissolved Oxygen Sensor Electrode
Model No.
Dods625
Power/Outlet
9~36VDC/RS485 Modbus RTU
Measure Methods
Fluorescence Method
Housing Material
POM+ 316 Stainless Steel
Waterproof Grade
IP68
Measurement Range
0-20mg/L
Accuracy
±1%F.S
Pressure Range
≤0.3MPa
Temperature Compensation
Ntc10K
Temperature Range
0-50ºC
Measuring/Storage Temperature
0-45ºC
Calibration
Oxygen Free Water Calibration and Air Calibration
Connection Methods
4 Core Cable
Cable Length
Standard 10m Cable, Can Be Extended to 100m
Transport Package
A5 Export Standard Carton
Trademark
OEM
Origin
China
Production Capacity
50000

Product Description

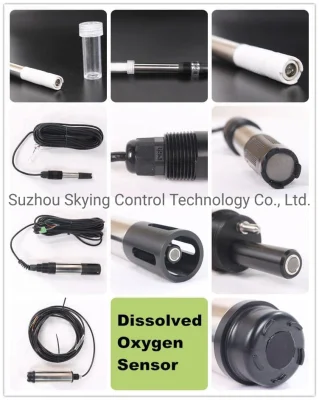

DODS625 Digital Dissolved Oxygen Sensor Electrode

Product Description:

The fluorescent dissolved oxygen sensor automatically realizes a wide range of ppm measurement. It has the characteristics of fast response, stability and reliability, and low cost of use. It is suitable for large-scale use in water plants, aeration tanks, aquaculture, and sewage treatment plants.

The fluorescent dissolved oxygen sensor adopts the principle of optical physics. There is no chemical reaction in the measurement, and it is not affected by air bubbles.
Careful selection of materials and strict selection of each circuit component greatly improves the stability of the circuit during long-term operation.
The default English parameter setting, the function description is concise and clear, which conforms to the operating habits of most people and provides convenience for the operator.

The electrode lead is made of PVC material, which is waterproof and anti-corrosion, and can cope with more complicated working conditions.
The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be titanium-plated, which also performs well under strong corrosion.

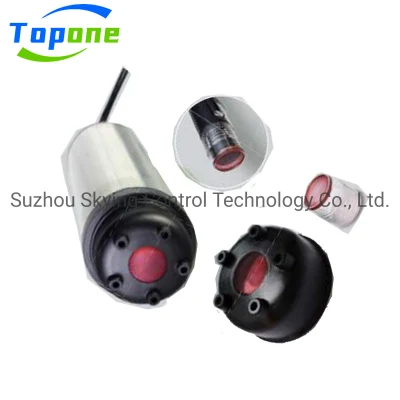

The fluorescent cap is corrosion-resistant, has better measurement accuracy, and has a longer service life. No oxygen consumption, low maintenance, long life.


Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen SensorDigital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor
Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen SensorDigital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen SensorDigital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor


Technical parameters:


Model No.: DODS625
Power/Outlet: 9~36VDC/RS485 MODBUS RTU
Measure methods: Fluorescence method
Housing material: POM+ 316 Stainless steel
Waterproof grade: IP68
Measurement range: 0-20mg/L
Accuracy: ±1%F.S
Pressure range: ≤0.3Mpa
Temperature compensation: NTC10K
Temperature range: 0-50ºC
Measuring/Storage Temperature : 0-45ºC
Calibration: Oxygen Free Water Calibration and Air Calibration
Connection methods:
4 core cable
Cable length: Standard 10m cable, can be extended to 100m
Installation thread: G3/4 End thread




Application:

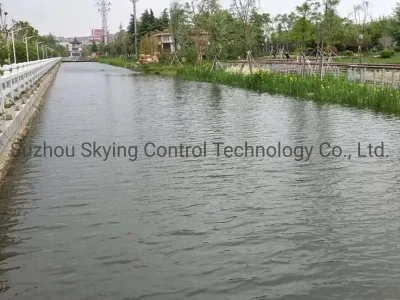

General application, river, lake, drink water, environmental protection, etc.

Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen SensorDigital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor


Production:
Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor

Company profile:

We-Suzhou Skying Control Technology Co., Ltd. is a leading manufacturer, supplier and exporter of water analysis instruments.
We specialize in the production water quality analysis instruments and various sensors:
1. Online PH/ORP meter and sensors; Conductivity meter, TDS meter, dissolved oxygen meter,
    fluorescence dissolved oxygen meter, residual chlorine analyzer, chlorine dioxide analyzer,
    acid-base salt analyzer, dissolved ozone meter, nitrate meter, turbidity meter,
2. Multi-parameter water quality analysis instrument controller, portable water quality analysis instrument
3. Digital online controllers and sensors, (PH/ORP/Conductivity/TDS/dissolved oxygen/residual chlorine......)
4. COD sensor
5. Pen type
6. Portable


The product range covers industrial, handheld, laboratory, aquarium, agriculture and other application fields.
In addition, we also provide instrument-related products such as instrument protection boxes, integrated systems, and control panels.
Products are widely used in power plants, petrochemicals, mining and metallurgy, environmental protection water treatment, light industry electronics, water plants and drinking water pipe networks, food and beverages, hospitals, hotels, aquaculture, new agricultural planting and biological fermentation processes and other industries.

Excellent Quality, best price, excellent after-sales service and technical support, as well as good communication with customers, that makes us be preferred the partner for many overseas customers.


Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor Digital Dissolved Oxygen Sensor Online Probe Fluorescence Dissolved Oxygen Sensor
