Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor

Get accurate and reliable water quality monitoring with our Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor. We are a factory with top-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
A10
Measuring Liquid
Chemical Liquid
Transport Package
Standard Packing
Specification
Plastic/Metal
Trademark
Other
Origin
China
HS Code
9027809900
Production Capacity
500 Pieces/Month

Product Description

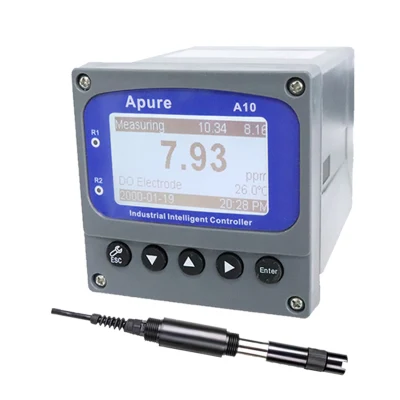

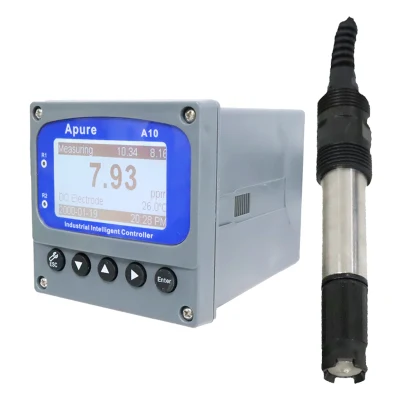

Digital Optical Water DO Controller Dissolved Oxygen Meter with Sensor

Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor


Product Introduction

A10 dissolved oxygen meter is an online intelligent dissolved oxygen detector, we introduce the foreign technology, using imported components and dissolved oxygen membrane head, new polarographic analysis technology based on, and advanced production technology and surface mount technology. This series of advanced analytical techniques are used to ensure the stabilityreliability and accuracy of the instrument over a long period of time. It has functions of Chinese and English menu, RS485 communication and so on. It can be widely used in chemical, fertilizer, metallurgy, environmental protection, water treatment projects, pharmaceutical, biochemical, food, aquaculture and tap watersuch as continuous monitoring of dissolved oxygen value.



Product Name:
High Quality cheap DO probe/DO Meter/Dissolved oxygen controller sensor water tester

Brand:
APURE

Measuring range:
0-20mg/L, automatic range switching; 0-60ºC

Resolution:
0.1mg/L, 0.1ºC

Precision:
±0.5% FS, ±0.3ºC

Automatic temperature compensation:
0-60ºC
Control interface:
two sets of normally open relay contact, divided into high and low alarm signal, photoelectric isolation output

Signal isolation output:
photoelectric coupler isolated protection 4-20mA signal output

Relay:
arbitrary setting of hysteresis, relay load 3A 220VAC

Working conditions:
ambient temperature of 0-60ºC, relative humidity ≤ 90%

Output load:
<300Ω (4-20mA)

Working voltage:
110-220VAC±10%, 50/60Hz

Dimensions:
96×96×115mm

Cut off dimensions:
91×91mm

Weight:
0.9Kg

Warranty period:
1 year




Characteristics:

Large screen dot matrix LCD display, English menu operation.
Multi parameter simultaneous display: oxygen value, temperature, output current, alarm point and so on. Visually readable and with range overrun hints.
The alarm status is displayed on the screen, and the output of the switch ON signal can be simultaneously connected.
Communication function (optional): RS-485 communication interface (MODBUS Protocol Part compatible), 4-20 mA current output corresponding to the DO value can be arbitrarily set
Arbitrary setting function of hysteresis, Avoid frequent action of switch and relay.
Watchdog function: Make sure the instrument does not crash.
The core components come from famous foreign brands.

If you have any questions or want to know more details about the product, please contact us!

Comparative table of dissolved oxvgen in air

Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor
Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor



Certificate


Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor


Company Profile


Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor Click here to view more information about the company


Packing & Shipping


Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor
Digital Optical Water Do Controller Dissolved Oxygen Meter with Sensor


FAQ

Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.


More information please contact us, we will provide the timely feed
