Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

Get accurate highway speed measurement with our Double-Way Speed Radar Module Vehicle Loop Radar Sensor. We are a factory specializing in high-quality radar sensors.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • Product Description
  • Product Parameters
  • Certifications
  • Our Exhibition
  • Test Equipment
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
TSR20
Detection Range
1:300m
Theory
Doppler
Transmit Frequency
24GHz
Detection Target
Vehicle
Speed Range
10-300km/H
Protection Class
IP66
Transport Package
Packed by Carton
Specification
137*117*35mm
Trademark
Nanoradar
Origin
China
Production Capacity
1000000PCS/Year

Product Description



Company Profile



Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.

Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

Product Description



Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

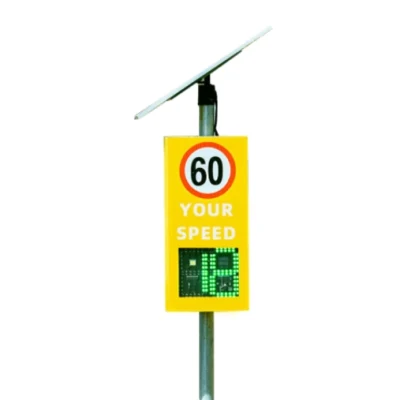

Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.



The speed sign system is made up of following:

Speed detection: Traffic speed radar

Video Records: Camera, Lights

Front Data Process

Unit: Identification on Server

Networking Unit: Switch, Optical Transmitter & Receiver

Multiple installation is controlled at the management center.

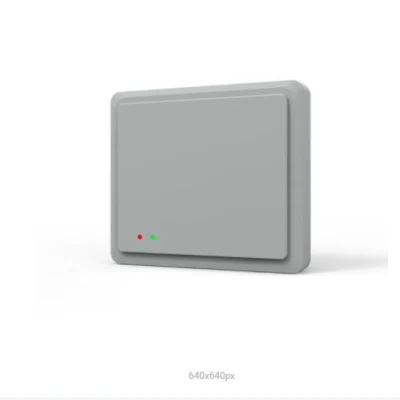

Product Parameters

Transmit frequency  24GHz
Transmit power(EIRP)  20dBm
Response time  20ms
Transmit frequency error  -45~40MHz
Power  1.6W
Communication interface  RS484/RS232/Wifi/L(H) level
Speed range  10~300km/h
Speed accuracy  -1~0km/h
Direction  Coming/going direction could be distinguish
Distance range  15~150meters
Distance accuracy  ±0.5meter
Beam width/TX Azimuth(-6dB)7deg
Elevation(-6dB)28deg
Working voltage  9~16V DC
Working current  0.13A@12V DC
Working temperature  -40~85ºC
Working humidity  5%~95%RH
Size  148*124.5*26.5mm
Protection class  IP66



Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

Nano Radar Advantages:

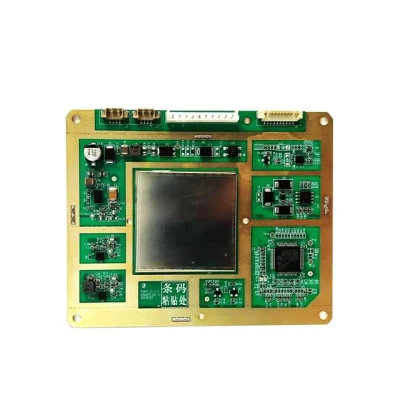

*Adopt 24 GHz MMIC Technology

*Small size, light weight and convenient installation

*Accurate speed measurement and difference within 1km/h

*Trigger distance up to 250-300 Speed measurement range: 10-300km /

*Multiple lanes supported

*All weather resistance, not affected by light, dust, rain, snow, haze and other harsh environment

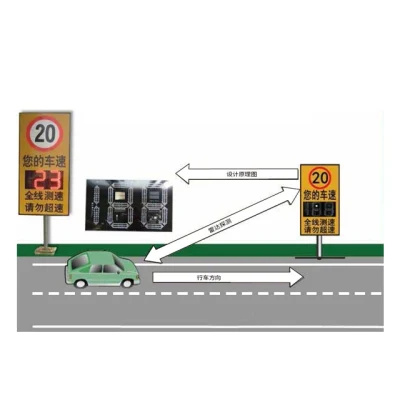

Installation Cases on Real Site

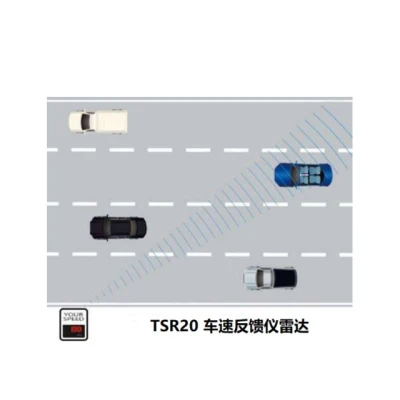

 TSR20 speed detection radar adopts CW modulation to realize the speed measurement. It is mainly deployed in expressway, ordinary highway, community gate, corner intersection and school road section etc to accurately detect and display vehicle speed, timely remind drivers of over-speeding, so as to effectively reduce road traffic accidents.Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

Certifications



Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

Our Exhibition

Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

Test Equipment

Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

After Sales Service

Double-Way Speed Radar Module Vehicle Loop Radar Sensor for Highway Speed Measurement

FAQ



1 Q:Do you have any discount?

A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.



2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.



3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.



4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.



5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.



6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.



7 Q:How the stability of products?
A:3~5 years is ok in normal situation.



8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
