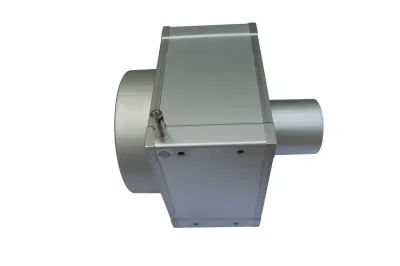

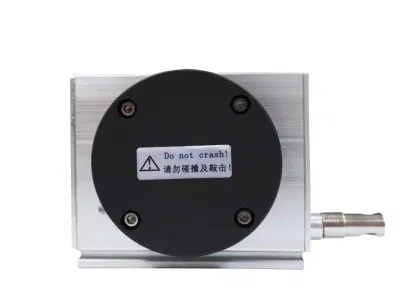

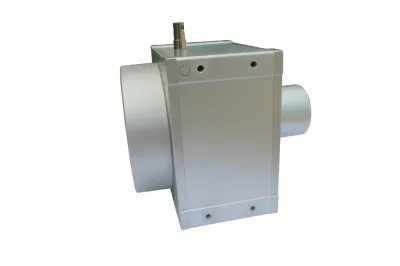

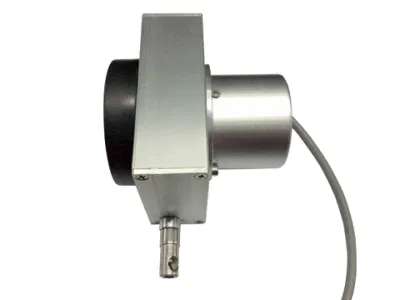

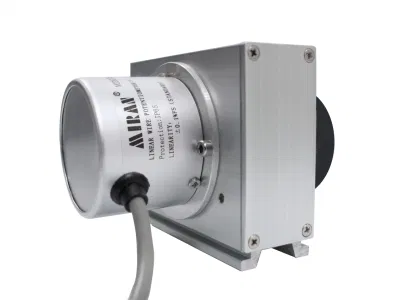

Draw Wire Rope Displacement Motion Sensor Absolute Encoder

Get precise and reliable motion sensing with our Draw Wire Rope Displacement Motion Sensor Absolute Encoder. Designed and produced in our factory for unparalleled quality.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MPS- XL-9000mm-R
IP Rating
IP67
Certification
ISO
Customized
Customized
Item
Mps-XL-R-9000mm
Measurement Stroke
9000mm-10000mm
Linearity
± 0.3%Fs(Normal Standard); ± 0.1%Fs
Resistance
5kohm
Resolution
Infinite
Repeatability Precision
±0.02%Fs
Temperature
-40ºC~+80ºC
Very Long Life
>100*1000000 Cycles, >25*1000
Power Supply
3V~36V
Max Speed
500mm/Sec
Transport Package
Each Piece Is Packed in a PVC Tube with Foam
Specification
Aluminium Case
Trademark
MIRAN
Origin
China
HS Code
8543709990
Production Capacity
9999999

Product Description


Product Description
MIRAN Manufacturer Supply Draw Wire Linear Displacement Sensor

Attention: The length of this sensor is 9000mm.If you need any other lengths, please contact with supplier. The price is change with the Stroke. The model is: MPS- XL-9000mm-R,  MPS is the brand of MIRAN ;XL stands for Large stroke;9000mm stands for the stroke ;R stands for Voltage output .This product is customized, which include the stroke and output signal, 0-5V, 0-10V, 4-20mA, RS485, Square-wave signal output.
Draw Wire Rope Displacement Motion Sensor Absolute Encoder


Draw Wire Rope Displacement Motion Sensor Absolute Encoder


Company Information
  MIRAN Manufacturer Supply Draw Wire Linear Displacement Sensor

Draw Wire Rope Displacement Motion Sensor Absolute Encoder
Draw Wire Rope Displacement Motion Sensor Absolute Encoder



My Dear Friends,welcome to visit our company!



Shenzhen Miran Technology Co., Ltd. is the largest Linear Position Sensor manufacturer in China.

Since 2003 we have been developed and produced Linear Position Sensor(brand:MIRAN,LinecSKI,WANSUNGM),Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angle Sensor,Lubricating Pump(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other Motion control products to support many different industries.

Our Products have been widely used in injection molding machines,die casting machines,rubber machines,footwear machines,EVA injection machines,bottle blowing machines,woodworker machines, hydraulic machinery,level control, suspension stroke control,construciton machinery,seaport machinery,industrial robots,etc.



We can offer you the competitive advantage products.

We also support to put your logo on the products if you need.


Please find the product you need and confirm the order.
If you cannot find what you need,please leave a message with your email or




Hope we can build up the long-term and harmonious business relationship!
Wish you have a happy shopping and visit us again!
