Electronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk

ElectroHealth Touch Screen Kiosk - Get an advanced health examination at your convenience with our self-service kiosk. Factory direct quality.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
SH-T15
Gross Weight
80kg
Transport Package
Wooden Carton
Trademark
SHANGHE
Origin
China
HS Code
8423100000
Production Capacity
1000sets Per Month

Product Description

Product Description

Electronic Balance Self Service  Health Examination Kiosk Touch Screen Kiosk

1.Ultrasonic height measuring instrument
2.Face recognition/no contact temperature meter
3.Fat body composition analysis system
4.Oxygen measuring meter
5.Blood pressure heart rate measurement system
6.Human weight measurement system
7.A4 print report system
8.Smart identity recognition system
9.Natural sitting position adjustment system
10.ECG measurement system
11.System testing system
12.Main operation platform, data show, health education
13.Visual, mental health, Chinese medicine physical examination health testing system
14.Move -resistant all -elephant pulley, convenient movement transfers


Electronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk

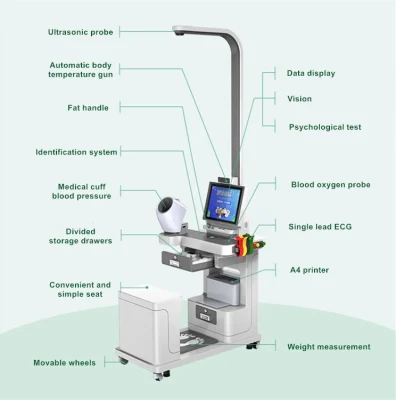

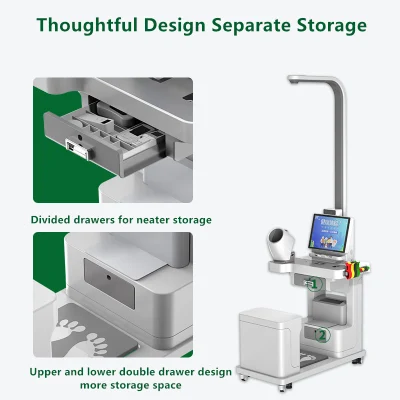

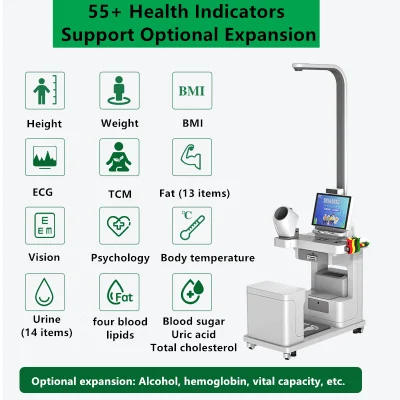

Detailed Photos


Electronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen KioskElectronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk

Product Parameters

Model SH-K5 Smart Health Checkup Kiosk
Main control system

15.0-inch high-definition touch screen, new Android system

Identification Face recognition, ID card, mobile phone number/etc., social security card (optional), QR code/barcode recognition (optional), etc.

Height measurement

New high-precision altimeter sensor
range: 50-205CM, accuracy ±0.5CM


Weight measurement

Industrial-grade large-capacity load cells
range: 5-500KG, accuracy ±0.1KG


Fat measurement

Range: 5.0%-75%, division value: 0.1%; can analyze body fat mass, body muscle mass, body bone mass, basal metabolism, protein and other human body components

Blood pressure measurement

Electronic sphygmomanometer,
blood pressure: 0-299mmHg (0-39.9kpa) pulse: 40-180times/min


Blood oxygen measurement

The finger clip oximeter measures blood oxygen, the measurement range is 35%-100%; the accuracy is ±2% within the range of 75%-100%; the accuracy is ±3% within the range of 50%-74%;

Temperature measurement

Infrared forehead thermometer to measure body temperature, optional wireless temperature measurement, measuring range: 32.0°C-42.5°C. Resolution: 0.1°C Measuring distance 1-5;

Blood sugar measurement

20-600mg/dl (1.1-33.3Mmol/L);
±20% when blood glucose concentration ≥ 75mg/dl (4.17mmol/L)


Uric acid test

Detection range: 3-20mg/dl (0.18-1.19mmol/L)

Cholesterol testing

Detection range: 100-400mg/dl (2059-10.35mmol/L)

Waist to hip ratio measurement

Waist and hip measurements;

Vision measurement

Vision depression and other mental health screenings

Mental Health Test

Mental health screening for stress, anxiety, depression, etc.

TCM constitution identification

Automatic judgment and analysis of the nine constitutions of TCM, including yang-deficiency constitution, qi-deficiency constitution, and phlegm-dampness constitution

Urinalysis

Test items: white blood cells, nitrite, urobilinogen, protein, pH value, occult blood, specific gravity, ketone bodies, bilirubin, glucose, vitamin C, microalbumin, creatinine, calcium ion and other fourteen items
Four blood lipidsc

Test items: total cholesterol, high-density lipoprotein, triglyceride, low-density lipoprotein

ECG detection

Single-lead/12-lead ECG (optional)

Print report

Thermal printer; optional A4 black and white/color printer

Data upload

Standard configuration: RS-232 serial port, optional configuration: Bluetooth, 4G, WIFI, cloud transmission, etc.

Docking system

APP, public health system, HIS/LIS system, membership management system, health software, etc.

Branding

Health education, you can customize screen pictures, videos, audios, text slogans, etc.

Health report

Print small ticket, A4 color/black and white report (optional), mobile phone WeChat scan code to view

Expand options

12-lead ECG, hemoglobin, vital capacity, glycosylated hemoglobin, alcohol testing, etc.;

Product Size

L*W*H: 965*709*2316mm;
Packing size: 1080*760*1550mm;
Net weight: 55KG
Gross weight: 80KG
(This is a full-featured specification, the actual product shall prevail)


Certifications

Electronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk

Packaging & Shipping
Electronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk
Electronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk
Company Profile
Electronic Balance Self Service Health Examination Kiosk Touch Screen Kiosk

After Sales Service

1. Always making an all-over inspection of product before delivery and get archived .
2. We will keep serving you to do the best before-sale and after-sale service.
3. We provide user manual and instruction video for scale assembly. And we will also timely instruct you how to assemble and operate through online call and video if you need.
4. The product is in a warranty of one year, and lifelong technical service.
5. We can provide customized software and hardware service to meet your different needs.

FAQ

FAQ 1:
Q1. What is your terms of packing?
A: Generally, we pack our goods in strong carton per set.
Or customized according to the order quantity.
Q2. What is your terms of delivery?
A: EXW, FOB,CIF,CFR
Q3. How about your delivery time?
A: Generally, it will takes 3-5days after receiving your down payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers' benefit ;
We sincerely do business with each customer to establish long and reliable relationship and be friend with each other.
