Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable

High-quality Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable from a reliable factory. Order now for superior performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Products advantages
  • Specification
  • Application
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
No
Core
Multicore
Certification
RoHS, ISO9001, CCC
Brand
Kolorapus
Sheath Material
LSZH
Package Material
Plastic Bag/Box
Package Size
18*18*2cm
Certificate
UL/Reach/CCC/CE/FC/RoHS/ISO9001
ODM&OEM
Accept
Transport Package
Package Carton
Specification
18*18*2cm
Trademark
Kolorapus
Origin
China
HS Code
854470
Production Capacity
10000 Pieces/Month

Product Description


Kolorapus Fiber Optic Equipment SC LC ST FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable
Products advantages

1. The material of Ceramic Ferrule: Zirconium  quality stable and easy for polishing
2. Good supply capacity(20K-30K pieces connectors each day)
3. Fast delivery time(5-7days)
4. Complied to ISO9001 quality system
5. 100% testing before shipment
6. 3D passed testing with report for option
7. All kinds of connector for option(SC,LC,FC,ST,MU,MTRJ,MPO/MTP,ODC,ODLC,SMA905 and so on)

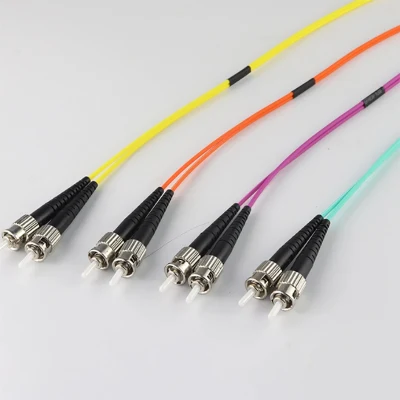

Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable

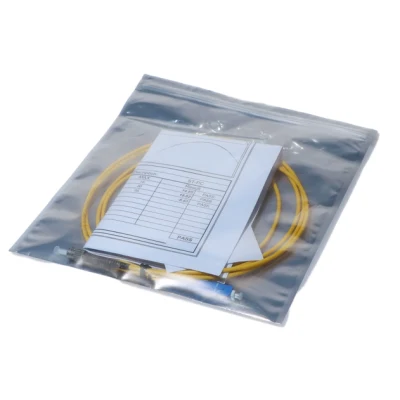

Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable

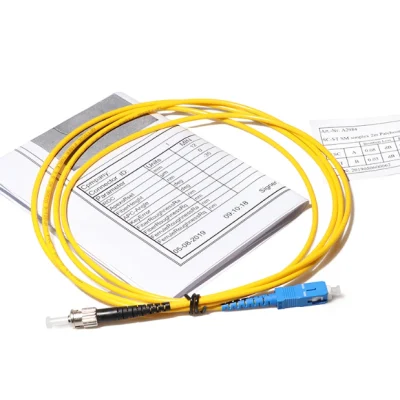

Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable

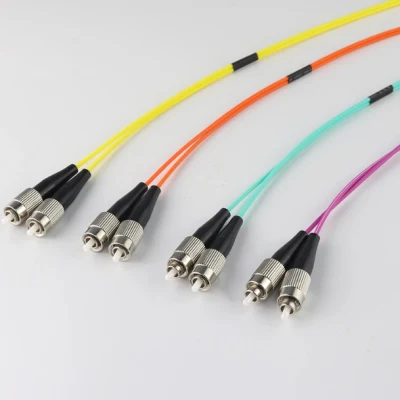

Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable



Specification
Mode Single mode Multimode
Polish UPC APC PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB
Return Loss ≥55dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Salt Spray ≤0.1dB
Repeatability ≤0.1dB (1000 times)
Vibration ≤0.2dB (550Hz  1.5mm)
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB  (+25+65 93 R.H.100 hours)
Apex Offset 0μm ~ 50μm
Radius of Curvature 7mm ~ 25mm
Standards-Compliant ROHS,IEC and GR-326

Fiber type Min.Bandwidth Distance attenuation
62.5/125 850/1300nm
200/500 MHz/Km
@100Mbps 2km @1Gig 220m 850/1300nm
3.0/1.0dB/km
50/125 850/1300nm
500/500 MHz/Km
@100Mbps 2km @1Gig 500m 850/1300nm
3.0/1.0dB/km
50/125
10Gig Optimized
850/1300nm
2000/500 MHz/Km
@100Gig Varies by VCSEL typical 300m 2850nm 850/1300nm
3.0/1.0dB/km
9/125 1310/1550nm
Approx 100 Terahertz
Up to 100km Varies by transceiver 1310/1550nm
0.4/0.3dB/km

Fiber type Single mode:
1,9/125-G652D
2,9/125-G655
3,9/125-G657
Multimode:
4,50/125-OM2
5,62.5/125-OM1
6,50/125-OM3
Fiber  Corning,China Fiber,other
Connector1 SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Connector2 SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others
Polishing PC,UPC,APC,MTRJ Male connector,MTRJ female connector
Cord type Simplex ,Duplex
Cable diameter 0.9mm ,2.0mm,1.8mm 3.0mm
Cable jacket PVC,LSZH,OFNR,OFNP
length(M) 0.5m,1m,3M,5m,10m,20m,200m
Application

1.FTTH (Fiber To The Home)
2.Optical fiber data communication
3.Optical fiber access networks
4.Optical fiber communications system
5.Telecommunications
6.CATV, LAN, MAN, WAN, Test &Measurement
7.Medical

Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable




Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable

Certifications



Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable
Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable
Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable
Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable



Company Profile



Fiber Optic Equipment Sc LC St FC Fiber Optic Patch Cord Fiber Patchcord Jumper Cable
Kolorapus is a factory direct supplier specializing in the research and development of wires and cables and supporting equipment. Cables, flexible towline cables, elevator flat cables, various special cables and related accessories, such as modules, panels, distribution frames, jumpers, pigtails, couplers, photoelectric converters, cabinets, bridges, etc., products It has passed CCC, ROHS, CE and other certifications, and provided a tripartite test report issued by the national authoritative testing and certification center. The product performance fully complies with domestic and foreign and industry-related standards. The company's management system has passed GB/T19001-2016/ISO9001:2015 quality management system certification, GB/T24001-2016/ISO14001:2015 environmental management system certification and GB/T45001-2020/ISO45001:2018 occupational health and safety management system certification.



FAQ

What Kind Of Services Can We Enjoy Buy From Kolorapus.Co.Ltd.?

Arrange the shipping and delivery asap.
Inspect the quality carefully of your goods.
Good packaged avoid the damage of goods during shipping.
Make documents for you to do custom clearance,packing list and commercial invoice

Can We Get The Sample Order?
We welcome sample test and quality check.
Some products that are relatively small in size can be sent by express.
We need to charge the double sample fee, and don't worry the sample fee will refund you in your next further bulk order.

How Can You Guarantee The Quality Of The Products?
We have always placed great emphasis on quality control to make sure that excellent quality level is maintained.furthermore, every order will be checked out to guarantee the quantity and quality.

Which Logistics You Sent And How Long Can We Get The Goods?
It's up to your order quantities,we accept sea transportation and air transportation.

What Kinds Of Certificates Do You Have?
We have passed the inspection of GB,CE,UL,ROHS,3C etc,and Comprehensively guarantee the quality of the products.

Which Payment Method Do You Accept?
We accept T/T,Paypal and so on, any one method that we can negociate.
