Basic Info.
Model NO.
ACE-TM
Application
Energy Metering
Type
Thermal Flow Meter
Measuring Media
Gas
Measuring Principle
Thermodynamic
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, ISO
Transport Package
Paper Box, Pollywood Carton
Specification
Depends on Flow Meter Size
Trademark
ACE
Origin
Made in China
HS Code
9026100000
Production Capacity
20000 Sets/Year
Product Description

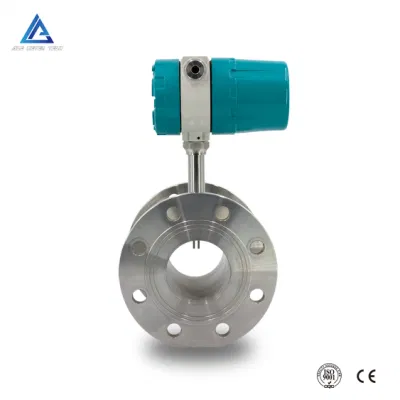

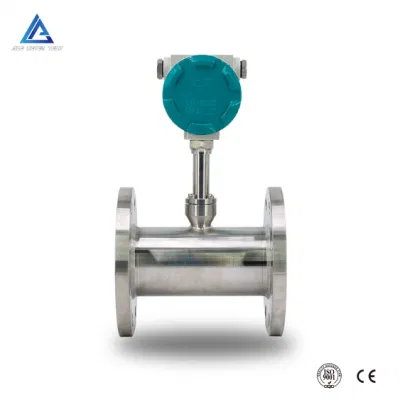

Flange Connection Thermal Gas Flowmeter Gas Mass Flow Meter For Oxygen
| Item | Description |
| Type | Inline Type |
| Available Medium | Dry Gas |
| Range of Diameter | DN15-DN400 1/2"-16" |
| Accuracy | 1.50% |
| Velocity Range | 0-80Nm/s |
| Medium Temperature | -20-250ºC |
| 250-350ºC | |
| Rated Pressure Range | PN16(DN15-DN200) |
| PN10(DN250-DN400) | |
| Body Material | Stainless Steel 304 |
| Carbon Steel | |
| Sensor Material | Stainless Steel 316L |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Thread(NPT,BSP,GB or Customize) | |
| Straight Pipe Section | 5*DN Upstream 3*DN Downstream |
| Display | LCD Display with Adjusting Button |
| Volume Correction | Gas Temperature and Pressure Compensation(@20ºC,1 ATM) |
| Power Supply | 24VDC |
| 220VAC | |
| Signal Output | 4-20mA |
| Communication Protocol | RS485 MODBUS |
| Electricity Entry | M20*1.5 |
| 1/2" NPT | |
| Protection Grade | IP65 |
| Explosion Proof Grade | ExdIIBT6(Sensor) Exd{ia}IICT4(Transmitter) |
Flange Connection Thermal Gas Flowmeter Gas Mass Flow Meter For Oxygen
