High Accuracy Oxygen Cell Medical Oxygen Sensor

Get reliable and precise oxygen monitoring with our High Accuracy Oxygen Cell Medical Oxygen Sensor. As a factory, we ensure top-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
CHH-07
Application
Measuring Oxygen Concentration
Type
Gas Flow Sensors
Measuring Media
Gas
Housing Material
White ABS
Measurement Range
0-100 Vol.% O2;
Temperature Compensation
<2% O2;
Response Time
<15 S
Operating Temperature Range
0- +50 C
Operating Pressure Range
0.5 Bar - 2.0 Bar
Operating Humidity Range
0% to 99% Rh Noncondensing
Transport Package
Carton
Specification
40g (nominal)
Trademark
ICLEAR
Origin
China
Production Capacity
1000 Pieces/Month

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg

Product Description

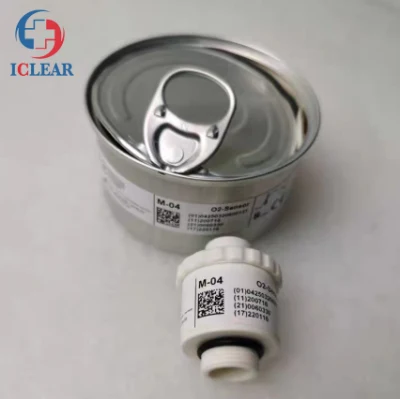

Multi-type Medical Oxygen Battery M-04 Oxygen Cell OOA101-1 Oxygen Sensor

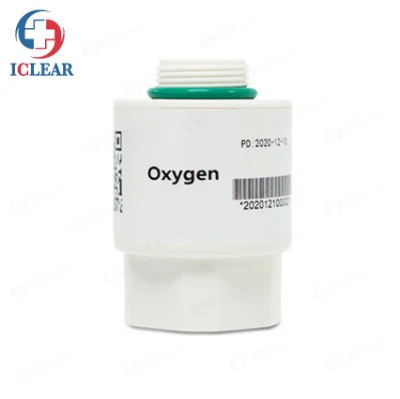

High Accuracy Oxygen Cell Medical Oxygen Sensor
High Accuracy Oxygen Cell Medical Oxygen Sensor
High Accuracy Oxygen Cell Medical Oxygen Sensor

Product Overview
Offering long life and fast response, the high-quality replacement sensor incorporates a molded body design, specific for medical use. Best of all, the CHH-07 costs less than the sensors it replaces, creating additional savings while providing superior quality.



Applications
CHH-07 Medical Oxygen Sensors are intended as oxygen-sensing components of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following

applications:
- Sensing device for oxygen in
- control device of oxygen concentrators
- medical ventilators
- anesthesia equipment
- incubators.
The use is limited to system monitoring. The sensors are not suited for breath-by-breath analysis of breath gases. Please refer to the Instructions for Use. To avoid cross-infection, please strictly follow the instructions of the oxygen analyzer manufacturer

Product Feature
- Linear output
- No external power supply
- Temperature compensation
- Accurate and reliable
- Fast response
- Anti-interference



Technical parameter

Output 9 mV to 13 mV in 21%O²
Measurement Range 0 - 100 Vol.% O²
Temperature Compensation  <2% O² equivalent(0ºC-40ºC)
Response Time <15 s
Operating Temperature Range  0ºC - +50ºC
Operating Pressure Range 0.5 Bar - 2.0 Bar
Operating Humidity Range  0% to 99% RH noncondensing

Note:
The technical parameters of the three oxygen cells are the same, but the interface is different. Please choose the interface that meets your needs.
