Hospital End Tidal Mainstream CO2 Module Etco2 Sensor

Get reliable Hospital End Tidal Mainstream CO2 Module Etco2 Sensors direct from the factory. Ensure accurate monitoring with our quality products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Our Advantages
  • Product Parameters
  • After Sales Service
Overview

Basic Info.

Model NO.
UN900
Principle of Operation
Non-Dispersive Infrared (Ndir)
Initialization Time
Capnogram Displayed in Less Than 20 Seconds
Color
Black, Blue, White
Power
5.0 VDC ±5%
Calibration
No Routine User Calibration Required
Data Interface
Compatible with Communication Protocol
Regulatory
Designed to Comply Yy0601 and ISO21647
OEM
Acceptable
Transport Package
Carton
Specification
146L x 67W x 30H (mm)
Trademark
OEM/ODM/Union Medical
Origin
China
HS Code
9018199000
Production Capacity
100000/Year

Product Description


Product Description

Portable Mainstream CO2 Sensor Module for Patient Monitor Compatible with Many Brands
Model: UN900

Capnography is the monitoring of the concentration or partial pressure of carbon dioxide (CO2) in the respiratory gases. Its main development has been as a monitoring tool for use during anesthesia and intensive care.


Mainstream  ETCO2 module is the ideal capnography solution. It is plug-in and play  features advanced technology for measuring instaneous concentration,  end-tidal concentration, inspired concentration . The sensor  CO2 respiration rate,  CO2 CO2 . It resist the vapour better with patented
technology, make the measured result more accurate.

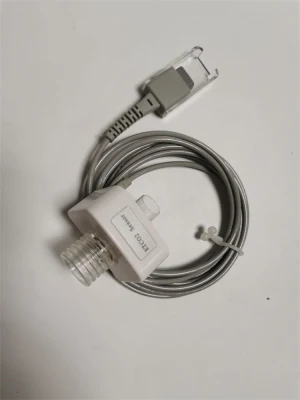

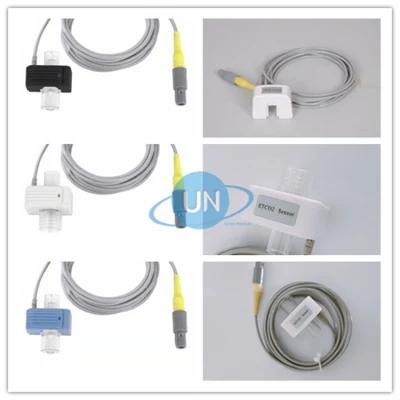

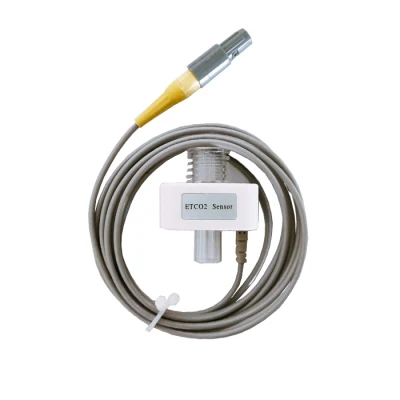

Detailed Photos
Hospital End Tidal Mainstream CO2 Module Etco2 Sensor
Hospital End Tidal Mainstream CO2 Module Etco2 SensorHospital End Tidal Mainstream CO2 Module Etco2 Sensor
Hospital End Tidal Mainstream CO2 Module Etco2 SensorHospital End Tidal Mainstream CO2 Module Etco2 SensorHospital End Tidal Mainstream CO2 Module Etco2 Sensor
Our Advantages

Application Field:

1.Monitoring the patient's respiratory status
2.Assists in determining when to intubate or extubate
3.Verification of ET tube placement
4.Alerts if accidental extubation occurs

5.Ventilator disconnect detection
6.Verification of ventilation during transport

Product Parameters
Transducer Type
Mainstream CO2 sensor(un 900)
Principle of Operation
Non-dispersive infrared (NDIR)
Initialization Time
Reaching full specifications within 2 minutes
Co2 Measure Range
0 - 150 mmHg
0 - 19.7%
0 - 20kPa
Co2 Measure Resolution
0.1mmHg
Co2 Accuracy
0 - 40 mmHg                             ±2 mmHg
41 - 70 mmHg                           ±5% of reading
71 -100 mmHg                          ±8% of reading
101 -150 mmHg                        ±10% of reading
Respiratory Rate
Range: 3 - 150 BPM
Accuracy: ±1 breath
Calibration
No routine user calibration required.
The mainstream sensor an airway adapter
zero is required when changing to a different airway adapter
Compensation
Barometer Pressure 450 - 850 mmHg.
Operator selectable O2 , N2O, He compensation.
Temperature / Humidity
Operating: 0 to 40 , 10 to 90% RH
Storage: -40 C to 70 C, <90% RH
Data Interface
Rs232, 19200 baud rate, standard N-8-1.
Fully compatible with Respironics Co2 module's communication protocol
Regulatory
Designed to comply YY0601 and ISO21647



After Sales Service

Main unit for 12 months, accessories for 6 months. All items are tested 3 times before shipping.

Outline dimension:

Size:      18.5*13.5*7cm
Weight:  350g


Applications:
Hospital End Tidal Mainstream CO2 Module Etco2 SensorHospital End Tidal Mainstream CO2 Module Etco2 SensorHospital End Tidal Mainstream CO2 Module Etco2 Sensor

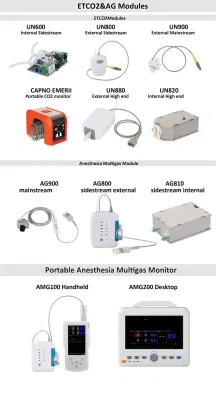

Other Related Series products:
