Inline Optical Do Probe Continuous Dissolved Oxygen Measurement for Waste Water

Get accurate and real-time dissolved oxygen measurements for waste water with our Inline Optical Do Probe. Perfect for factories and industrial applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Application
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
DOG-209FYD
Response Time
<60s (90% Right Value)
Communication
Standard RS485 Modbus
Protection Grade
IP68
Transport Package
Carton Box
Specification
46*45*106cm
Trademark
BOQU
Origin
Shanghai, China
HS Code
90278099
Production Capacity
1500PCS/Month

Product Description

 Digital Optical Dissolved Oxygen Sensor
 DOG-209FYD

Product Description

DOG-209FYD dissolved oxygen sensor uses fluorescence measurement of dissolved oxygen, blue light emitted by the phosphor layer, a fluorescent substance is excited to emit red light, and the fluorescent substance and the concentration of oxygen is inversely proportional to the time back to the ground state. The method uses a measurement of dissolved oxygen, no oxygen consumption measurement, the data is stable, reliable performance, there is no interference, installation and calibration simple. Widely used in sewage treatment plants each process, water plants, surface water, industrial process water production and wastewater treatment, aquaculture and other industries on-line monitoring of DO.

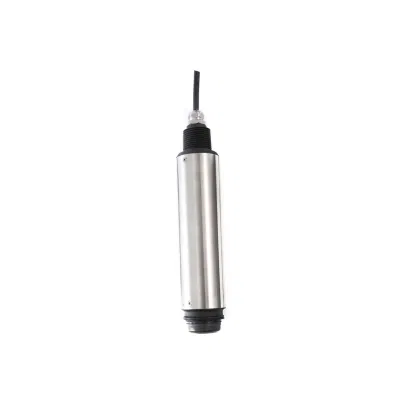

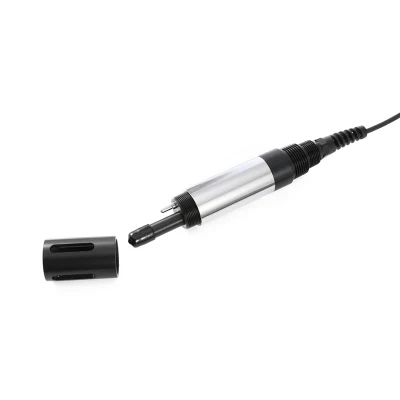

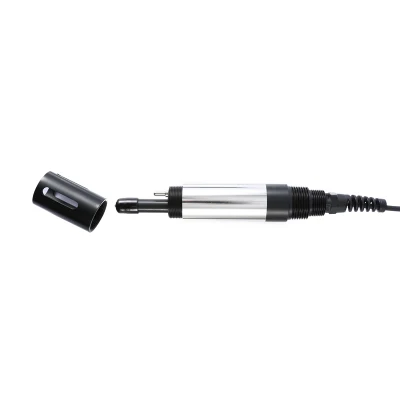

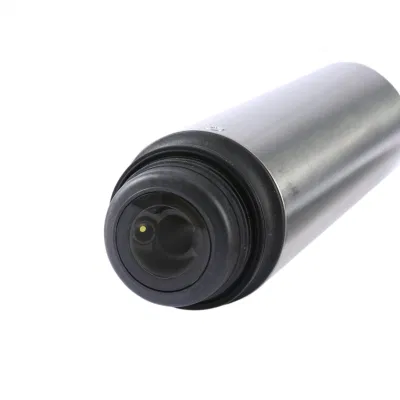

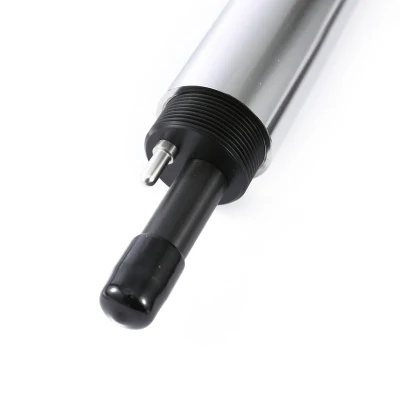

Detailed Photos


Inline Optical Do Probe Continuous Dissolved Oxygen Measurement for Waste WaterInline Optical Do Probe Continuous Dissolved Oxygen Measurement for Waste Water

Product Parameters

Technical Features
1. The sensor uses a new type of oxygen-sensitive film with good reproducibility and stability.
Breakthrough fluorescence techniques, requires virtually no maintenance.
2. Maintain prompt the user can customize the prompt message is automatically triggered.
3. Hard, fully enclosed design, improved durability.
4. Use simple, reliable, and interface instructions can reduce operational errors.
5. Set a visual warning system to provide important alarm functions.
6. Sensor convenient on-site installation, plug and play.


Technical Indexes

Material Body: SUS316L + PVC (Limited Edition), titanium (seawater version);
O-ring: Viton;
Cable: PVC
Measuring range Dissolved oxygen:0-20 mg/L,0-20 ppm;
Temperature:0-45ºC
Measurement
accuracy
Dissolved oxygen:measured value ±3%;
Temperature:±0.5ºC
Pressure range ≤0.3Mpa
Output MODBUS RS485
Storage temperature -15~65ºC
Ambient temperature 0~45ºC
Calibration Air autamatic calibration, sample calibration
Cable 10m
Size 55mmx342mm
Waterproof rating IP68/NEMA6P

Optical DO Sensor Dimension

Inline Optical Do Probe Continuous Dissolved Oxygen Measurement for Waste Water

Installation of Sensors

  1. Install the 8 (mounting plate) on the railing by the pool with 1 (M8 U-shape clamp) at the sensor mounting position;
  2. Connect 9 (adapter) to 2 (DN32) PVC pipe by glue, pass the sensor cable through PVC pipe until the sensor screws into 9 (adapter), and do waterproof treatment;
  3. Fix 2 (DN32 tube) onto 8 (mounting plate) by 4 (DN42U-shape clamp).
Inline Optical Do Probe Continuous Dissolved Oxygen Measurement for Waste Water                                               Figure 2  Schematic Diagram on the Installation of Sensor

1-M8U-shape Clamp(DN60) 2- DN32 Pipe (outside diameter 40mm)
3- Hexagon Socket Screw M6*120 4-DN42U-shape Pipe Clip
5- M8 Gasket(8*16*1) 6- M8 Gasket(8*24*2)
7- M8 Spring Shim 8- Mounting Plate
9-Adaptor(Thread to Straight-through)
