Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture

Get accurate readings for gas flow with our Intelligent Gas Vortex Flowmeter. Perfect for measuring water vapor, compressed air, nitrogen, hydrogen gas mixture. Buy direct from the factory.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • FAQ
Overview

Basic Info.

Model NO.
QZLUG
Application
Industrial Production
Type
Vortex Flow Meter
Measuring Media
Gas /Liquid
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
CE
Customized Support
OEM, ODM
Output
4-20mA /RS485/ Pulse
Display
LCD
Connection
Clamping Flange/Integrated Flange/Thread
Protection Class
IP65/IP68
Power Supply
24VDC/Battery
Medium
Gas /Liquid /Stream
Body Material
304ss,316L
Medium Temperature
-40°c~350°c
Transport Package
Wooden or Carton
Specification
DN15-DN400
Trademark
QZHI-SETSAIL
Origin
Anhui, China
HS Code
9026100000
Production Capacity
7000 Set/Sets Per Month

Product Description

Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Measurable Media


Gas

Compressed Air

Superheated Steam

Saturated Steam

Heat Transfer Oil

High Temperature Liquids

Nitrogen

Hydrogen

Oxygen

Water

Applicable Industries
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Product Description

The vortex flowmeter is designed based on the Karman vortex principle, which can measure the flow, temperature, pressure and other parameters of the medium fluid of industrial pipelines according to different types, and has the functions of pulse frequency output, 4-20mA analog signal output, RS485 communication, Hart protocol and so on. It is widely used in heating, gas supply, textile, steel, medicine and other industries to measure and control gas, compressed air, steam, nitrogen, heat transfer oil and other media.

It is known as Tongjing 15/20/25/32/40/50/65/80 /100/125/150/200/250/300 (300-1000) plug-in
Nominal pressure DN15-DN2004.0 (> 4.0), DN250-DN3001.6 (>1.6)
Medium temperature °C -40~150,-40~250,-40~350;
Accuracy ±1%R,±1.5%R; Plug-in: ± 2.5%R
Range 1:6~1:30
Supply voltage Sensor: DC12V, DC24V; Transmitter: DC24V; Battery-powered type: 3.6V battery
Output signal Square wave pulse (excluding battery-powered type): high ≥ 5V, low ≤ 1V;     Current: 4~20mA
Pressure loss coefficient Conform to JB/T9249 standard Cd≤24
Explosion-proof signs Intrinsically safe type: ExdIlia CT2-T5 flameproof type: Ex db IIC T6 Gb
Ingress protection Ordinary IP65 type
Environmental conditions The temperature is -20°C~55°C, the relative humidity is 5%~90%, and the atmospheric pressure is 86~106kpa
Applicable media Gases, liquids, vapors, mixed gases, flammable and explosive gases
Transmission distance Three-wire pulse output type: ≤100m, two-wire standard current output type (4~20mA)≤200m: load resistance≤750Ω; RS485/HART≤500m

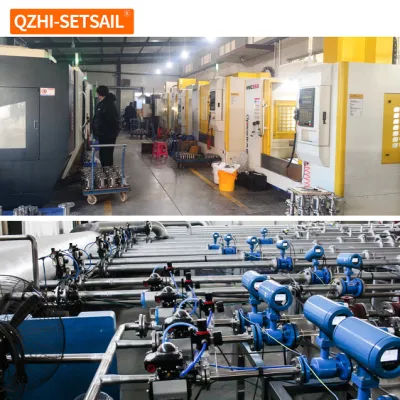

Fully Automatic Inspection And Calibration Equipment In The Factory
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture

No Temperature And Pressure Compensation Integrated Temperature And Pressure Compensation

Product Upgrades
The square fastening screws are reinforced from the normal round to squarefastening columns which can adapt to a higher degree of on-site vibration.
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture

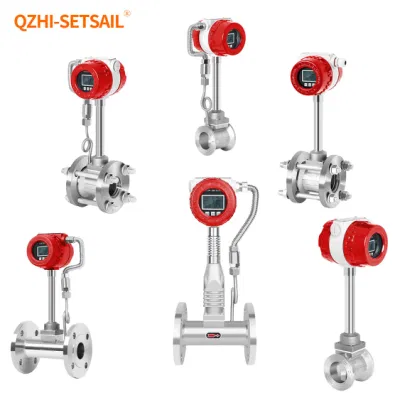

Threaded Connection Clamp Flange Connection One-piece Flange Connection

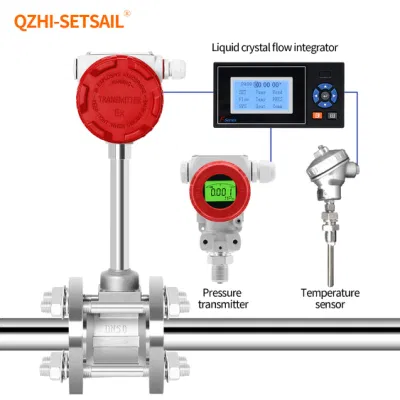

Note: Choose Temp And Pressure Compensation For Gas Measurement
Gases are highly susceptible to pressure and temperature, which requires accurate measurements, temperature 25ºC and standard atmospheric pressure.

However, field conditions often can not be satisfied, therefore, it is necessary to involve temperature and pressure compensation.
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas MixtureIntelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas MixtureIntelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas MixtureIntelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture

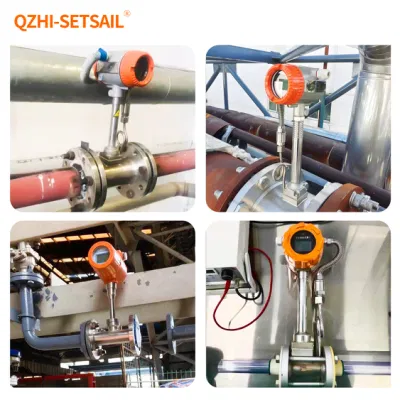

Feedback From Customers
Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
Instrument Diameter(mm) Liquid Gas
Measuring Range (m3/h) Output Frequency Range (Hz) Measuring Range (m3/h) Output Frequency Range (Hz)
15 0.3~5 35~450 4~20 352~1761
20 0.6~10 29~380 6~30 250~1273
25 1.2~16 25~320 8~50 160~1100
32 1.8~20 18~200 10~150 97~1180
40 2~40 10~190 20~200 130~1040
50 3~60 8~150 35~350 87~952
65 4~85 6~120 45~450 71~764
80 6.5~130 4.1~82 86~1100 54~696
100 15~220 4.7~69 133~1700 42~548
125 20~350 3.2~57 150~2000 26~346
150 30~450 2.8~43 347~4000 34~392
200 45~800 2~31 560~8000 22~315
250 65~1250 1.5~25 890~11000 18~221
300 95~2000 1.2~24 1360~18000 16~213

Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture Intelligent Gas Vortex Flowmeter Water Vapor Flow Meter Compressed Air Nitrogen Hydrogen Gas Mixture
