IP67 PNP No/Nc 24VDC Infrared Laser Tof Reflection Photoelectric Sensor

Get precise detection with our IP67 PNP No/Nc 24VDC Infrared Laser Tof Reflection Photoelectric Sensor. We are a factory specializing in high-quality sensors.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • About LANBAO
  • LABAO Partner
  • LANBAO Exhibition
  • LANBAO Certification
Overview

Basic Info.

Model NO.
PSE-CC60DPB-E3
Certification
CE
Sensing Distance
60cm
Supply Voltage
10...30VDC
Degree of Protection
IP67
Housing Material
PBT
Transport Package
a Pieces /Box
Trademark
LANBAO
Origin
Shanghai
HS Code
9031809090
Production Capacity
5000000 Pieces/Year

Product Description

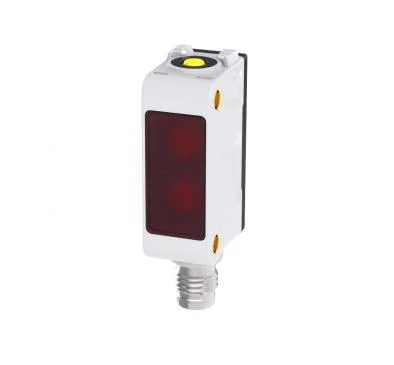

IP67 PNP No/Nc 24VDC Infrared Laser Tof Reflection Photoelectric Sensor
LANBAO Plastic square shape photoelectric sensors PSE series

  Features
Universal housing, an ideal replacement for a wide range of sensor types;
IP67, suitable for harsh environments;
One-key distance setting, accurate and fast setting
Using TOF principle, the difference between black and white of the prod
uct is small, and the detection is stable






IP67 PNP No/Nc 24VDC Infrared Laser Tof Reflection Photoelectric Sensor
NPN NO/NC
PSE-CC60DNB-E3
PNP NO/NC
PSE-CC60DPB-E3

Detection type
TOF Reflection
Detection range
0.5...60cm
Adjustment range
8...60cm
Output type
NPN NO/NC or PNP NO/NC

Operating temperature

-20...55ºC(No condensation,No icing)
  Response Time

≤100ms
Hysteresis
3…20%
Indicator
Green light: power; Yellow light: output
Adjustment method
Button adjustment
Protection circuit
Short circuit protection,Polarity protection, Overload protection

  Supply voltage   10...30VDC   Storage temperature   -25ºC…70 ºC
  Consumption current   ≤20mA   Protection degree   IP67
  Load current   ≤100mA   Certification   CE
  Voltage drop   ≤1.5V
Shell material
PC+ABS
Anti ambient light
Sunshine ≤10,000Lux

Weight
50g
Light source
Infrared laser(940nm)
Connection
M8 4-pin connector
Accessory
Mounting Bracket ZJP-8
Light spot size
Ф130mm@60cm
NO/NC adjustment
Press the button for 5...8s, when the yellow and green light flash synchronously at 2Hz, and lift. Finish state switch.
Distance adjustment
Press the button for 2...5s, when the yellow and green light flash synchronously at 4Hz, and lift to finish the distance setting.
If the yellow and green lights flash asynchronously at 8Hz for 3s, and the setting fails.

                                                                       Dimension
