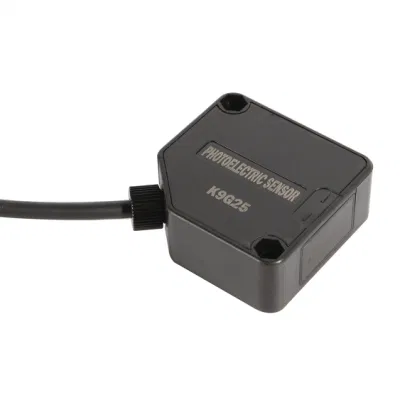

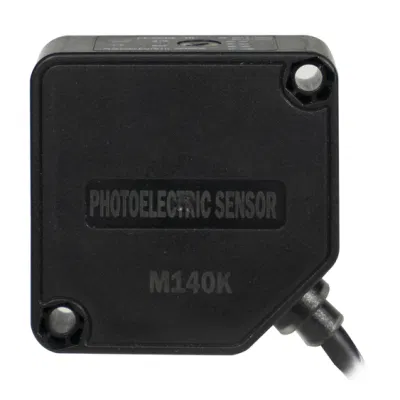

IP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security Door

Looking for IP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security Door? Look no further! We are a factory with top-quality products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Certifications
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
PF50D
No-Load Current
Max.60mA
Application
Revolving Doors, Parking
Protection Circuit
Reverse Polarity Protection
Ambient Brightness
Sunlight: Max.30000lux Fluorescent: Max.3000lux
Delivery Time
Within 3 Days After Receipt of Money
Function
Reverse Polarity Protection
Laser Class
Level 1
Transport Package
Standard Carton Box
Trademark
G-TEK
Origin
Tianjin
Production Capacity
100000

Product Description

Product Description
  1. Aspheric optical lens totally eliminate stray light and special optical structure has strong light resistance
  2. Red LED indicates working status, easy for installation.
  3. LIGHT ON/DARK ON can be selected
  4. Protection rating IP67 with complex process
  5. Built-in reverse polarity protection
  6. The wiring outlet is integrally formed, and the sealing performance is better
  7. Failure rate, 0.1%

IP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security Door

Product Parameters
Photoelectric sensor PF50D
Detection type Diffused
Detection object opaque object
Detection distance 0.1-1.5m
Supply voltage 12-24VDC±10% /12-240VDC/AC
No-load current Max.60mA
Power consumption 3VA(AC)
Response time Max.20ms
Sensitivity Adjust the detection distance by potentiometer
Light source Infrared light
Spot diameter Φ150mm(0.7m)
Action mode Selection light on /dark on by model
Control output Relay output,(contact rating: 30VDC 3A resistance load,
250VAC,3A resistance load,contact component: 1C)
Indicator Power indicator: green;Action indicator: red
Protection circuit Reverse polarity protection
Ambient brightness Sunlight: Max.30000Lux fluorescent: Max.3000Lux
Ambient temperature -20ºC~60ºC (No-freezing)
Ambient humidity 35~85%RH
Housing material Housing: ABS  Lens: PMMA
Shape and size As dimension
Cable Φ 5, 5×0.2mm²,standard line 2m
Protection rating IP67
Accessory Bracket: IB02,Screw: M4×25
Model
Installation Product Model Detection Distance
Diffused type PF50D-RD 0.1-1.5m
PF50D-RL
PF50DF-RD
  PF50DF-RL
Certifications
IP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security Door
Company Profile

IP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security DoorIP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security Door

Packaging & Shipping

IP67 Relay Output Diffused Reflective Optical Sensor for Automatic Revolving Security Door

FAQ

Q: What kind of products do you manufacture?
A: Our products includes photocell sensor, proximity switch, infrared light curtain, Vehicle separator, Loop detector and laser radar.,etc.

Q: Can I get some samples?
A: Yes, Sample orders are welcomed.

Q: Have photocell sensors 100% assembled well in stock?
A: We have some standard photocell sensors in stock with limited quantity; While
almost all photocell sensors will be newly produced according to your order.

Q: What is the delivery time?
A:  15-30 days for mass production depends on different products

Q: What is your MOQ?
A: We provide small MOQ for each item; it depends on your specific order.

Q: Do you have customization service?
A: Yes, We can provide customized products while the customization needs to meet certain quantity.

Q: Do you test all goods before delivery?
A: Yes, We have 100% test before delivery.

Q: What is your payment term?
A: We usually use 100% T/T in advance; West union and Paypal are also available for small order.

Q: Do you provide warranty for the goods?
A: Yes, We provide warranty for all the goods from us. For the sensor product the warranty is 15 months, For the light curtain , laser radar product the warranty is 18 months.

Q: May I visit your factory?
A: Sure, You are always welcome to visit us.
