Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN

Shop the Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN at our factory for high-quality industrial sensor solutions. Get PNP and NPN options. Contact us today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KJT-LS12-DS-ZPK/ZNK
Material
Nickel-Copper Alloy
Voltage Type
10-36VDC Voltage
Protection Degree
IP 65
Response Time
<8.2ms
Transport Package
Bag
Specification
CE
Trademark
KJTDQ
Origin
Nanjing, Jiangsu, China
HS Code
9033000000
Production Capacity
10000PCS/Month

Product Description

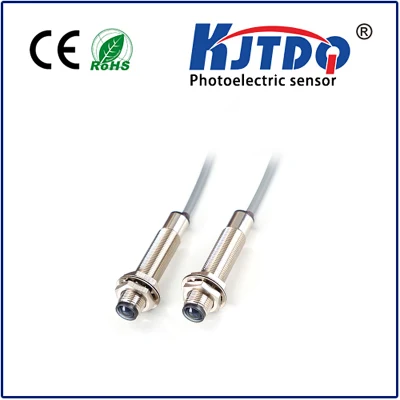

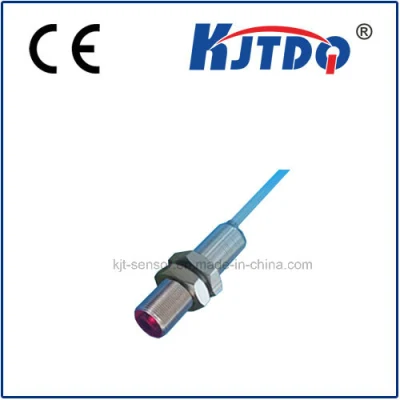

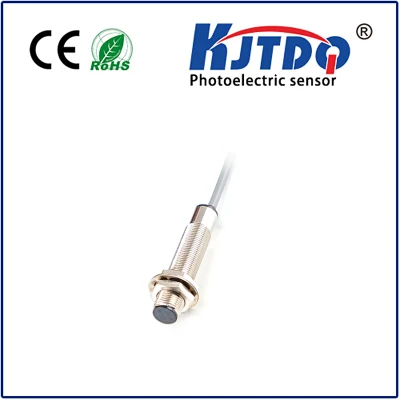

 M12 Laser Diffuse Infrared  Photoelectric sensor
Detailed Product Description
Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN Kjt - M12 Fiber Optic Infrared Diffuse Sensor Photocell Sensor PNP NPN
Features:

----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A

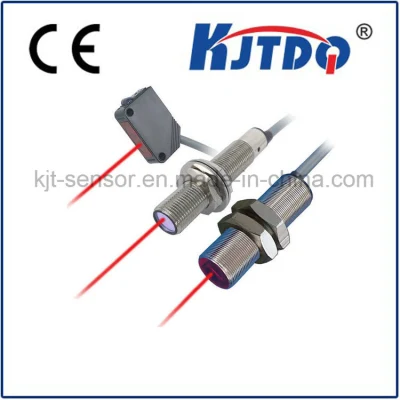

Variety:

----Diffuse reflection type
----Retro reflection type
----Through beam type
   Housing size KJT-LS12-DS-ZPK
   Object tested opacity
   Power supply 12~24VDC±10%
   Consumption current 40mA
   Response time 1ms
   Load current 100mA
   Protection circuit Reverse polarity and surge protection
   Light Source Infrared LED
   LED Power: green LED ;output: red LED
   Ambient temp. -10~+55°C
   Ambient RH 35~85%RH
   Intensity of illumination arround Daylight lemp:photic illumination 3,000еx
   Dielectric strength AC1,000V ,60s, 50/60Hz
   Insulation resistance ≥50MΩ(500VDC)
   Vibrancy 0.75mm amplitude at frequency of 10-50Hz in each of X,Y,Z directions for 2 hours
   Impact stress 500m/s2(50G) in each of X,Y,Z directions
for 3 times
   Protection degree IP67
   Housing material PC/ABS

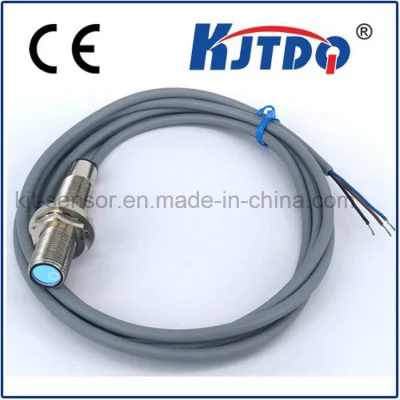

   Connection PVC Cable 2m


Company profile

Nanjing KJT Electric Co., Ltd. is located in Nanjing, the ancient capital of the Six Dynasties in the Yangtze River Delta. Relying on university technology and independent R & D, kaijite has developed into a national high-tech enterprise specializing in R & D, production and sales of automation industrial control products. The company has more than 20 invention and utility model patents, and has won the titles of "private scientific and technological enterprise", "small and medium-sized scientific and technological enterprise" and "national high-tech enterprise". The company has set up offices in Thailand, Hebei, Chongqing, Shandong and other places, and its products are exported to Southeast Asia, Europe, Africa, America and other markets.

Quality standard

While continuously developing and expanding, kegit has formulated strict standards for product quality, and has passed iso9001:2015 international quality management system certification. All products have passed CE certification to ensure that product performance and quality reach the advanced level of similar international products and are in a leading position in the industry.

Industry application

KJT products include various industrial automation sensors, industrial safety products, measurement products, wireless transmission devices, etc. they are widely used in aerospace, navigation, railway, post and telecommunications, communication, elevator, textile, petrochemical, mining, metallurgy, machine tool, machinery, tobacco, packaging, printing, food, measurement, office, household appliances and other industries, Promote the development of automation industry.



Q:  What's your warranty ?  How about the quality of your sensors ?
A:  18    mouths   .
   We have the certification of ISO,CE,CCC.Our sensors can replace many famous brand sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,Schneider,KEYENCE,
BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and we check whether can produce.

Q:   Do you have different style  ?
A:  We produce our own brand sensor(KJT),also provide OEM + ODM service.

Q:   How can we become your sale distributor  ?
A:  If you can sell our products USD  5,000 to USD  6 0,000 per year ,you could be one of our distributors in your city or area. We have price protection policy in every area.
 We still looking for more distributors,do you like to join us?

Q:   Can we have our logo or company name to be printed on your products or the package  ?
A:   Yes,you can.Logo or imprints can be printed on our products .
The minimum quantity is 500 pcs per logo.You can send us the artwork by email in JPEG or TIFF format.If you want your logo and company name to be printed on the package for the products(custom design package).Such as gift box and paper card,the MOQ is 500 pcs per model.You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats

Q:   How about the delivery time  ?
A:   We are factory and we have large warehouse for goods,if we have the sensors you need in stock,we will send in 3 days.If have not in stock,we will produce asap after received your payment in our account.the detailed delivery time is according your order qty.

Q: Does KJT  keeps goods in stock or only trading  ?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?
A: First order MOQ= 5 pcs  (different type sensor has different MOQ)

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us or send us by email, we will reply within 12 hrs.

Q:  Could  KJT  provide technology support ?
A:  We're in this field more than 1 0  years. If  there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

Q: When you use KJT's photoelectric sensor and inductive proximity sensor, the following subject should be noticed:
A:  Ensure the working voltage is 10-30 V DC or 90-250 AC.
Required the sensing distance and the material of detecting objects.
For photoelectric sensor ensure it is available through beam and reflection.
Ensure it is NPN or PNP output.

Q:   How can i get a sample  ?
A:  If you need one sample for checking-up,we will provide one free sample for one type sensor(same data sheet) for you,   .but we do not carry the freight charge.If we have no this type sample in stock,we could produce it for you.
