Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor

Get reliable Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor from our factory. High-quality, durable and efficient sensor switch for industrial use.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
KJT-GWFJ18-LY
Certification
CE
Customized
Customized
Voltage Type
10-36VDC Voltage
Protection Degree
IP 65
Response Time
<3 Ms
Sensing Distance Range
Adjustable
Operating Tem.
-25ºC ~~+55 ºC
Transport Package
Bag
Specification
CE
Trademark
KJTDQ
Origin
Nanjing, Jiangsu, China
HS Code
9033000000
Production Capacity
10000PCS/Month

Product Description

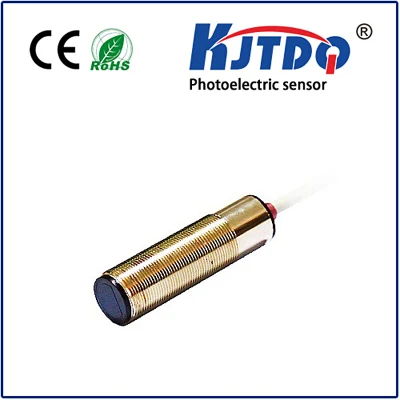

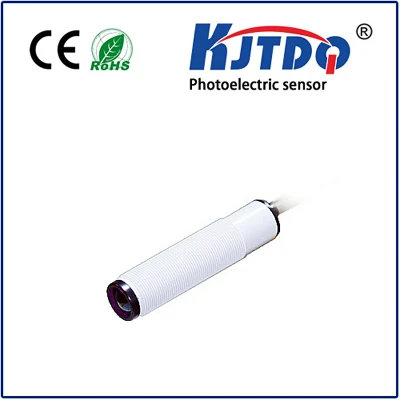

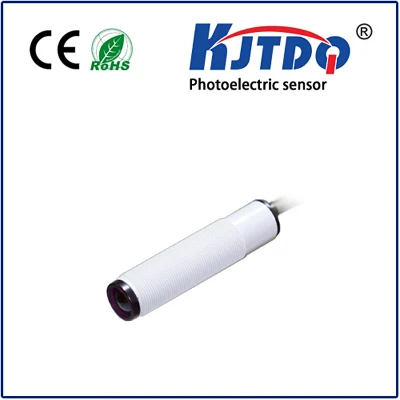

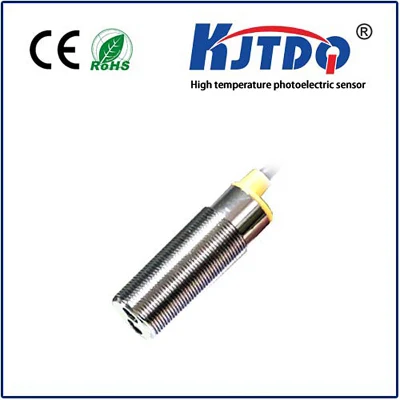

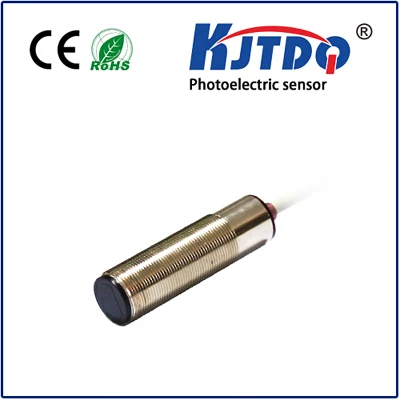

KJT-FJ18 Series High Temperature Photoelectric sensor switch

Detailed Product Description

Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor
Features:

----Easy to set up and adjust distance.
----Short-circuit protection, reverse polarity protection.
----Cable and connector connection optional.
----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.
----Light on/dark on conversion function.
----Built-in power supply, AC, DC or AC/DC universal Power supply.
----Relay output, capacity up to 250VAC*3A

Variety:

----Diffuse reflection type
----Retro reflection type
----Through beam type


   Housing size [mm]      18*1*77 mm
   Mode      Diffuse/Retro reflection
   SN [mm]      100~700mm,  2m
   Light source      Infrared LED (880nm)
   Output      NPN/PNP NO/NC
   Power supply      10-36VDC
   Protection degree      IP65
   Response time      <3 ms
   Hysteresis      3-20%
   Repeat accuracy      ≤5%
   Load current      ≤200mA
   Residual voltage      ≤2.5V
   Consumption current      ≤25mA
   Protection circuit      Surge, reverse  polarity and
     short-circuit
   Indicator      Yellow LED
   Ambient temp.[ºC]      -15~150ºC
   Ambient RH      35-95%
   Housing material      ABS/PC
   Connection     PVC cable 2 m



Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor
Kjtdq - M18 High Temperature Photocell Optical Sensor Switch CE Photoelectric Sensor

Q:  What's your warranty ?  How about the quality of your sensors ?
A:  18    mouths
   We have the certification of ISO,CE,CCC.Our sensors can replace many famous brand sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,,KEYENCE,
BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and we check whether can produce.

Q:   Do you have different style  ?
A:  We produce our own brand sensor(KJT),also provide OEM + ODM service.

Q:   How can we become your sale distributor  ?
A:  If you can sell our products USD  5,000 to USD  6 0,000 per  year ,you could be one of our distributors in your city or area. We have price protection policy in every area.
 We still looking for more distributors,do you like to join us?

Q:   Can we have our logo or company name to be printed on your products or the package  ?
A:   Yes,you can.Logo or imprints can be printed on our products .
The minimum quantity is  500  pcs per logo.You can send us the artwork by email in JPEG or TIFF format.If you want your logo and company name to be printed on the package for the products(custom design package).Such as gift box and paper card,the MOQ is  500  pcs per model.You can send us the artwork by email in JPG/TIF/AI/EPS/TIFF or coreIDraw formats

Q:   How about the delivery time  ?
A:   We are factory and we have large warehouse for goods,if we have the sensors you need in stock,we will send in 3 days.If have not in stock,we will produce asap after received your payment in our account.the detailed delivery time is according your order qty.

QDoes KJT  keeps goods in stock or only trading  ?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.

Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.

Q: What's about MOQ?
A: First order MOQ= pcs  (different type sensor has different MOQ)

Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.

Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us or send us by email, we will reply within  12  hrs.

Q:  Could  KJT  provide technology support ?
A:   We're in this field more than 1 0  years. If  there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.

Q: When you use KJT's photoelectric sensor and inductive proximity sensor, the following subject should be noticed:
A:  Ensure the working voltage is 10-30 V DC or 90-250 AC.
Required the sensing distance and the material of detecting objects.
For photoelectric sensor ensure it is available through beam and reflection.
Ensure it is NPN or PNP output.

Q:   How can i get a sample  ?
A:  If you need one sample for checking-up,we will provide one free sample for one type sensor(same data sheet) for you,   .but we do not carry the freight charge.If we have no this type sample in stock,we could produce it for you.
