Basic Info.
Model NO.
BR127
Material
Aluminum
IP Rating
IP67
Certification
RoHS
Customized
Customized
Custom
Size and Accuracy Could Be Customed
Applications
Special for Weighing Scales
Key Features
High Accuracy with Mini Dimension
Capacity
3,6,10,20 ,30kg, 50kg, 100kg
Transport Package
Carton Box
Specification
high accuracy with mini size
Trademark
BRANS
Origin
China
HS Code
84239000
Production Capacity
100000PCS/Year
Product Description

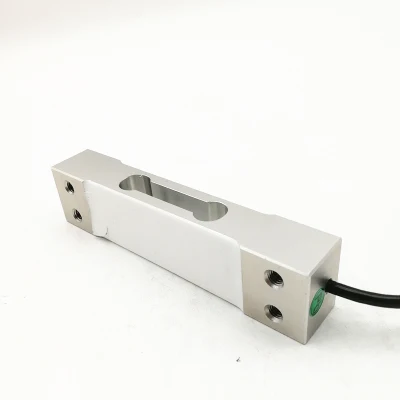

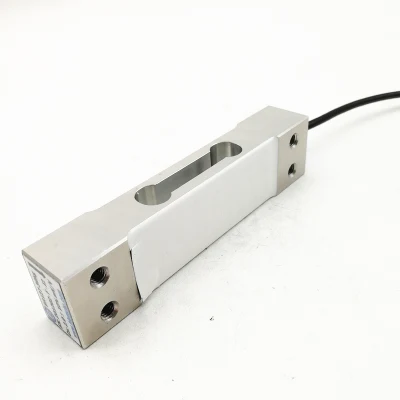

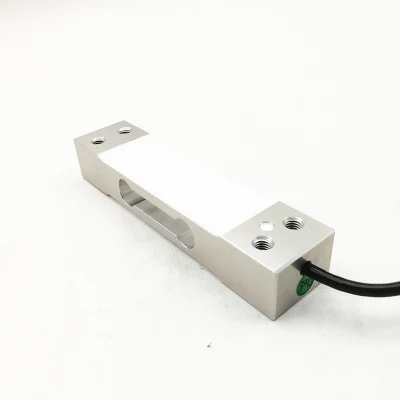

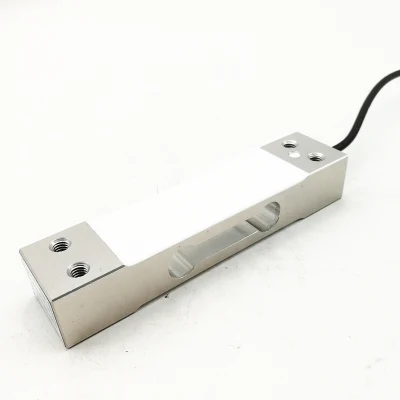

1. Name: 3,6,10,20 ,30, 50, 100kg high accuracy aluminum single point Load Cells
2. Material: Aluminum
3. Capacity: 3-100kg
4. Accuracy: C3
l Made of aluminum alloy.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, electronic balance, price computing scales and industrial weighing systems
Design
5. Datasheet
It is made of aluminum with long-term stability. Mainly used for electronic scales, electronic balance, weigh machine, weighing packing machine, weighing batcher, price computing scales and industrial weighing systems.
bransensor.en.made-in-china.com
2. Material: Aluminum
3. Capacity: 3-100kg
4. Accuracy: C3
l Made of aluminum alloy.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, electronic balance, price computing scales and industrial weighing systems
Design
5. Datasheet
| Number | Specifications | Technique |
| 1 | Capacity | 3,6,10,20 ,30, 50, 100kg |
| 2 | Accuracy class | C3 |
| 3 | Rated output | 2.0±10%mV/V |
| 4 | Zero balance | ±2%F.S. |
| 5 | Non-linearity | 0.015%F.S. |
| 6 | Hysteresis | 0.015%F.S. |
| 7 | Repeatability | 0.02%F.S. |
| 8 | Creep(30min) | 0.0166%F.S. |
| 9 | Temp.effect on output | 0.02%F.S./10ºC |
| 10 | Temp.effect on zero | 0.02%F.S./10ºC |
| 11 | Input impedance | 405±10Ω |
| 12 | Output impedance | 350±5Ω |
| 13 | Insulation | ≥5000MΩ/100VDC |
| 14 | Recommended excitation | 5~15V |
| 15 | Maximum excitation | 20V |
| 16 | Compensated temp range | -10~40ºC |
| 17 | Operation temp range | -20~60ºC |
| 18 | Safe overload | 150%F.S. |
| 19 | Ultimate overload | 300%F.S. |
| 20 | Cable size | Φ4×3000mm |
| 21 | Weight approx. | 0.3kg |
| 22 | Material | aluminum alloy |
| 23 | IP Class | IP65 |
| 24 | Max.platform size | 300mm×300mm |
It is made of aluminum with long-term stability. Mainly used for electronic scales, electronic balance, weigh machine, weighing packing machine, weighing batcher, price computing scales and industrial weighing systems.
