0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner

Discover our high-quality 0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner. As a factory, we specialize in producing reliable and accurate signal conditioners for industrial applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DIN1X1 SY(ISO) R-P-O- Series.
Certification
Ce/RoHS/FCC
Customized
Customized
Input
Potentiometer or Linear Position Sensor Signal
Input Value
0-50ohm/0-100ohm/0-200ohm/0-500ohm/0-10kohm, etc
Power Supply
24V/12V/5V/15V/220VAC, etc
Non-Isolated Type Accuracy Grade
0.1
Isolated Type Accuracy Grade
0.2, 0.5
Installation
35mm Standard DIN Rail-Mount
Dimension
83X37X51mm
Highlight
Customized Products Available
ISO
Refers to The Model with 3kv Isolation
Sy
Refers to The Non-Isolation Type.
Transport Package
Color Box
Specification
ISO9001: 2008, CE, RoHS
Trademark
SUNYUANSZ
Origin
Shenzhen
HS Code
8543709200
Production Capacity
50000PCS/Year

Product Description

0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner


Linear Position Sensor Signal Transmitter Features and Applications:
>>Accuracy Grade: (Non-isolation)0.1, (Isolation)0.05/0.2
>>Extremely high linearity in whole process(nonlinearity<0.05%)
>>Need not calibrate, modular Design, easy Maintain.
>>Input potentiometer signal: 0-50Ω /0-100Ω /0-200Ω /0-500Ω /0-1kΩ /0-2kΩ /0-5kΩ /0-10kΩ
>>Output standard voltage signal: 0-5V/0-10V/1-5V/0-± 5V/0-± 10V
>>Output standard current signal: 0-10mA/0-20mA/4-20mA, with high load capability.
>>Non-Isolation type: High linearity, high accuracy.
>>Isolation type: Electromagnet Isolation and Photoelectrical Isolation.
>>Three-port isolation: Input/power supply/output, it can improve anti-jamming capability.
>>Power supply: 220VAC/24VDC/12VDC/5VDC
>>Two wires signal transfer, supply voltage: 9~36VDC.
>>Installation type: 35mm DIN Rail-mount.
>>Linear Position transmitter signal conversion and isolation, CE, RoHS Approved
0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner

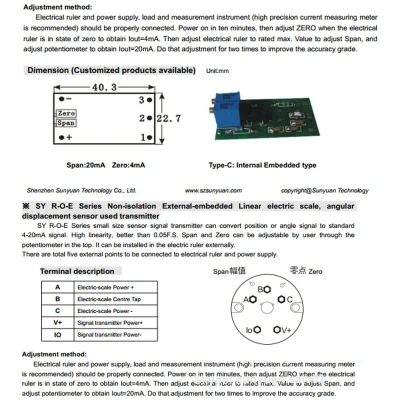

Linear Position Sensor Signal Transmitter Dimension:
0-10mA/0-20mA/4-20mA Linear Position Sensor Signal Conditioner

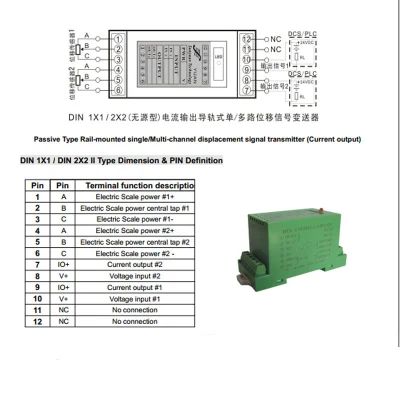

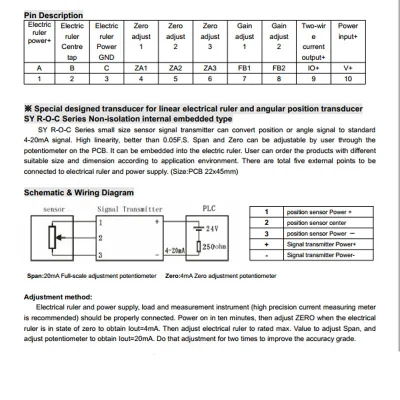

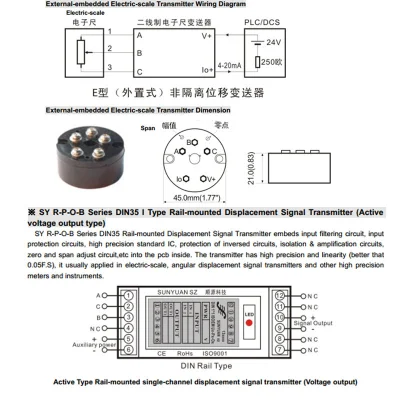

Linear Position Sensor Signal Transmitter Wiring & Terminal Defintion

Linear Position Sensor Signal Transmitter Model Selection:
Two-wire output (non-isolated)
SY - R - O -
  Input: R Output: O Install
R6: 0-2KΩ O1: 4-20mA C: Internal insert
R7: 0-5KΩ   B: DIN Rail-mounted
R8: 0-10KΩ   D: waterproof case mounting
R9: user-defined







Two-wire Output Isolated Type:
ISO - R      - O      -

  Input: R Output: O Install
R6: 0-2KΩ O1: 4-20mA A: weldable to PCB
R7: 0-5KΩ   B: DIN Rail-mounted
R8: 0-10KΩ   D: waterproof case mounting
R9: user-defined
(must> =2KΩ )



Four-wire Output: SY: Non-isolation Type  ISO: Isolation Type

        SY(ISO) - ISO - R      - P  - O      -


SY: Non-isolated type.
ISO: Isolated Type.
Input: R Aux. Power: P Output: O Install
R1: 0-50Ω P1: DC24V O1: 4-20mA B: DIN Rail-mounted
R2: 0-100Ω P2: DC12V O2: 0-20mA D: waterproof case mounting
R3: 0-200Ω P3: DC5V O4: 0-5V
R4: 0-500Ω P4: DC15V O5: 0-10V
R5: 0-1KΩ P5: AC220V O6: 1-5V
R6: 0-2KΩ P6: user-defined O7: 0-± 5V
R7: 0-5KΩ   O8: 0-± 10V
R8: 0-10KΩ   O9: -20~+20mA
R9: user-defined   O10: user-defined
