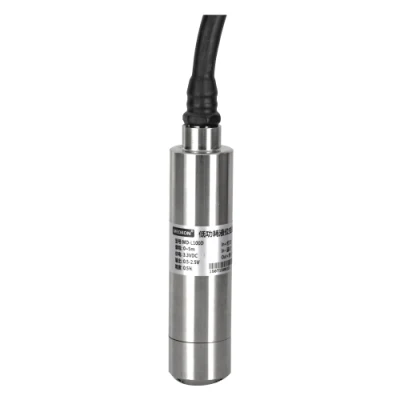

4~20mA/0~10V/0~5V/RS485 12~28V Shanghai Optical Water Fuel Level Sensor MD-L100

Shanghai Optical Water Fuel Level Sensor MD-L100 is a versatile sensor with options for 4~20mA/0~10V/0~5V/RS485 12~28V outputs. As a factory, we produce high-quality sensors for various applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MD-L100
Production Process
Submersible Type
Feature
Water or Liquid Incompatible with Stainless Steel
Material
Stainless Steel
IP Rating
IP68
Certification
CE
Customized
Customized
Power Supply
12~28V
Transport Package
Carton
Specification
0.5kg
Origin
Shanghai
HS Code
9026100000
Production Capacity
50000 PCS/Year

Packaging & Delivery

Package Size
15.00cm * 15.00cm * 8.00cm
Package Gross Weight
0.500kg

Product Description

The MD-L100 series liquid level transmitter measures liquid level or water depth based on the principle of hydrostatic pressure. It uses a high-performance isolating membrane diffused silicon sensor,and then uses sophisticated temperature compensation technology and water sealing technology to convert static pressure to standard electricity.Signal output.

The MD-L100 series liquid level transmitter adopts a 304 stainless steel shell and a shielded polyurethane cable to ensure that it has non-excellent corrosion resistance, reliable for water level measurement in reservoirs,rivers,sewage treatment,urban water supply,etc.



Technical Characteristics:

 IP 68 waterproof design
 Anti-electromagnetic interference design to ensure the stability of the signal
304 stainless steel shell with polyurethane cable, strong media compatibility
12~28V wide power supply

Application:

Civilian pool
Water tank level measurement
Hydrology and water conservancy system
Other liquid level measurement
Marine level measurement
Urban drainage system
Oil level measurement of locomotive oil truck
Water level measurement of rivers and lakes



 Specification:

Range 0~1m...5m...10m...100m H2O
Overload capacity  200%
Optional  Industrial explosion-proof shell
Transmission distance ≥1Km(4-20mA)
Accuracy  0.5%FS
Long-term stability Typical: ±0.2%FS/year
Zero temperature drift Typical: ±0.02%FS/ºC, Max:±0.05%FS/ºC
Sensitivity temperature drift Typical: ±0.02%FS/ºC, Max:±0.05%FS/ºC 12~28V(Typical 24V)
Power supply  12~28V(Typical 24V)
Output 4~20mA/RS485
Working temperature -10~60ºC
Compensation temperature -10~60ºC
Storage temperature -20~85 ºC
Electrical protection Anti-reverse connection protection, over-voltage protection
IP rate IP 68
Measuring medium  Water or liquid incompatible with stainless steel
Pressure connection throw-in
Shell material 304SS
