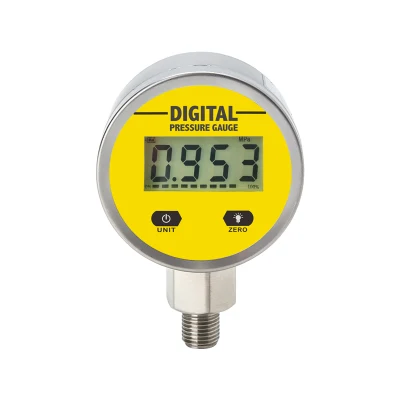

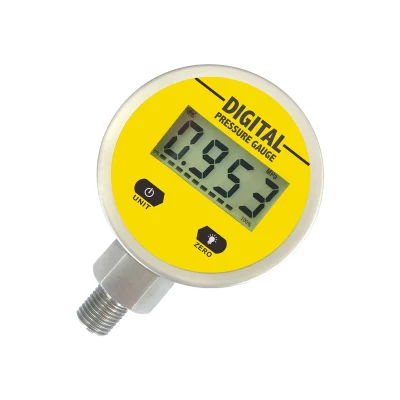

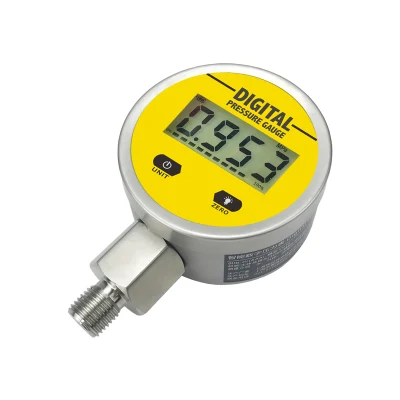

Meokon Digital Oxygen Pressure Gauge with LCD Display

Get accurate measurements with the Meokon Digital Oxygen Pressure Gauge. We are a factory that produces high-quality gauges for various industrial uses.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MD-S260
Type
Digital Display
Accuracy
1
Display
Digital
Application
Industrial
Structure
Ceramic Sensor
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
Gas Liquid Water
Indicating Pressure Reference
General Pressure Gauge
Power
2 AAA Batteries
Transport Package
Carton
Specification
0.2kg
Trademark
Meokon
Origin
Shanghai
HS Code
9026209090
Production Capacity
100000/Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 6.00cm
Package Gross Weight
0.300kg

Product Description

This gauge is a high-precision and intelligent digital pressure gauge. It has a high-precision sensor and display the pressure accurately in real time, equipped with a large size LCD. It has a various of features, such as zero clearing, backlight, on/off button, units, low voltage alarm. And it is convenient to install and easy to operate.

The surface and connector of the product is 304SS. It can be used to measure gas, liquid, oil and other non-corrosive mediums of stainless steel. It applies to these fields: portable pressure measurement, equipment supporting, equipment calibrations.


Technical Characteristics:

4 digit LCD showing the pressure accurately in real time
Different pressure units to change, zero clearing, backlight, on/off ,Battery powered,
low-power design keeping working for 18 months


All stainless steel shell, small size
Pressure percentage display

Application:

Machinery and electronic industry
Supporting equipment of instruments and meters
Pressure Laboratory
Mechanical engineering automation


Specifications:
Specifications:
Range Micropressure : (0.1…0.16…0.25)MPa
Medium Voltage : (0.4…0.6…4)MPa
High Pressure : (6…10…25)MPa
Differential Pressure : (0~10…25…40…60…100…250…400…600)kPa    (0~1…1.6)MPa
Over Pressure 150%
Backlight Color White
Dial Size 60mm
Acc. 1%FS
Long-term Stability Typical : ±0.5%FS/year
Operating Temperature -5~40ºC
Compensation Temperature En61326
Electric Protection Anti Electro Magnetic Interference
Sampling Frequency 2 Times/sec
Measurement Medium Gas,liduid,water
Connection M20*1.5, G1/4, G1/2, 1/4NPT, 1/2NPT(Customized)
Connection Material 304SS
Shell Material 304SS

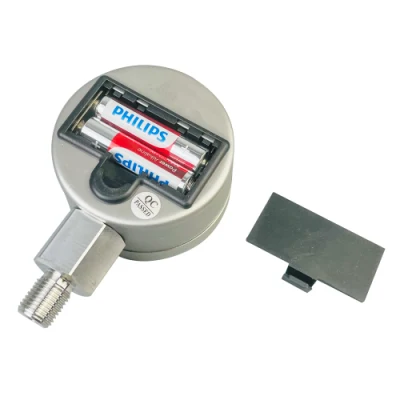

Power Supply 2AAA batteries
Function On/off, Zero Clearing, Units Changing, Backlight
Battery Model  Triple A battery
IP Rating IP50 ( IP54 with Protection Sleeve)


Meokon Digital Oxygen Pressure Gauge with LCD Display





Meokon Digital Oxygen Pressure Gauge with LCD Display
Meokon Digital Oxygen Pressure Gauge with LCD Display Meokon Digital Oxygen Pressure Gauge with LCD Display
