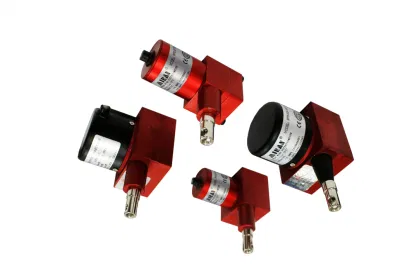

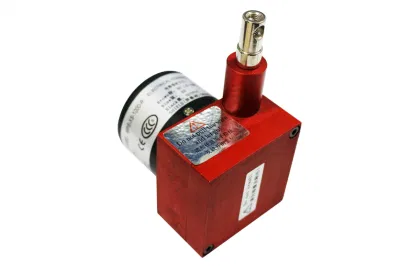

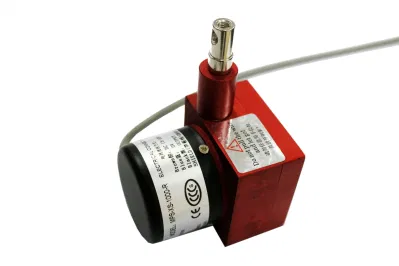

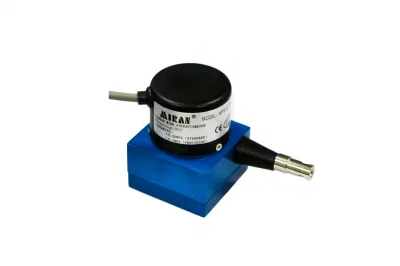

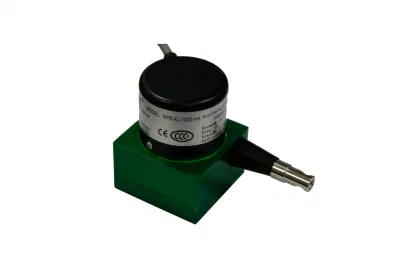

Miran Short Range Draw Wire Displacement Sensor Absolute Rotary Encoder

Get accurate measurements with Miran Short Range Draw Wire Displacement Sensor Absolute Rotary Encoder. We are a factory specializing in high-quality sensors.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MPS- XXS-500mm-R
IP Rating
IP67
Certification
ISO
Customized
Customized
Item
Mps- Xxs-500mm-R
Measurement Stroke
100-800mm
Linearity
± 0.3%Fs(Normal Standard); ± 0.1%Fs
Resistance
5kohm
Resolution
Infinite
Repeatability Precision
±0.02%Fs
Temperature
-40ºC~+80ºC
Very Long Life
>100*1000000 Cycles, >25*1000
Power Supply
3V~36V
Max Speed
500mm/Sec
Transport Package
Each Piece Is Packed in a PVC Tube with Foam
Specification
Aluminium Case
Trademark
MIRAN
Origin
China
HS Code
8543709990
Production Capacity
9999999

Product Description


Product Description
MIRAN Manufacturer Supply Draw Wire Linear Displacement Sensor

Attention: The length of this sensor is 500mm.If you need any other lengths, please contact with supplier. The price is change with the Stroke. The model is: MPS- XXS-500mm-R,  MPS is the brand of MIRAN ;XXS stands for Large stroke;500mm stands for the stroke ;R stands for Voltage output .This product is customized, which include the stroke and output signal, 0-5V, 0-10V, 4-20mA, RS485, Square-wave signal output.
Miran Short Range Draw Wire Displacement Sensor Absolute Rotary Encoder


Miran Short Range Draw Wire Displacement Sensor Absolute Rotary Encoder


Company Information
  MIRAN Manufacturer Supply Draw Wire Linear Displacement Sensor

Miran Short Range Draw Wire Displacement Sensor Absolute Rotary Encoder
Miran Short Range Draw Wire Displacement Sensor Absolute Rotary Encoder



My Dear Friends,welcome to visit our company!



Shenzhen Miran Technology Co., Ltd. is the largest Linear Position Sensor manufacturer in China.

Since 2003 we have been developed and produced Linear Position Sensor(brand:MIRAN,LinecSKI,WANSUNGM),Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angle Sensor,Lubricating Pump(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other Motion control products to support many different industries.

Our Products have been widely used in injection molding machines,die casting machines,rubber machines,footwear machines,EVA injection machines,bottle blowing machines,woodworker machines, hydraulic machinery,level control, suspension stroke control,construciton machinery,seaport machinery,industrial robots,etc.
