30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

Introducing our 30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, ideal for automated assembly lines and logistics conveyors in factories. Ensure efficient operations with our high-quality photo sensor.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Product Parameters
  • Product Application
  • Certifications
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
PF21B
Certification
CE
Customized
Customized
Adjadjustment Distance
150mm
Light Source
940nm Visible Red Light
Response Time
20ms
Output Mode
NPN/PNP Open Collector
Supply Voltage
10-30VDC
Action Mode
Select Product Light-on/Dark-on by Model
Indicator Light
Power Green Indicator, Output Yellow Indicator
Application
Logistics,Conveyor Belt
Transport Package
Standard Carton Box
Specification
21mmx11mmx31mm
Trademark
G-TEK
Origin
Tianjin
HS Code
9032900090
Production Capacity
5000/Month

Product Description

Features

The PF21 series of mini-type photoelectric sensors is a new and upgraded product. It includes through-beam, polarized reflective, and diffuse types of sensors
  • Diffuse reflection type with background suppression function
  • Non-sphere optical lens totally eliminate stray light and special optical structure has strong light resistance
  • NPN/PNP output can be selected
  • LIGHT ON/DARK ON can be selected
  • Protection rating IP67 with the complex process
  • Built-in reverse polarity protection, over-voltage protection, short-circuit protection
  • The wiring outlet is integrally formed, and the sealing performance is better

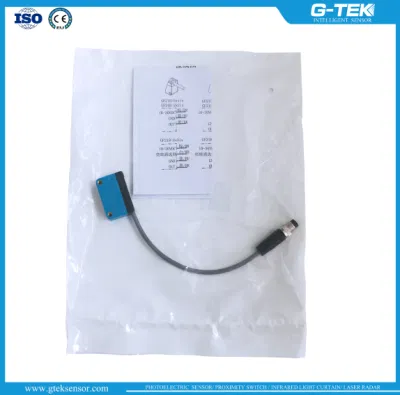

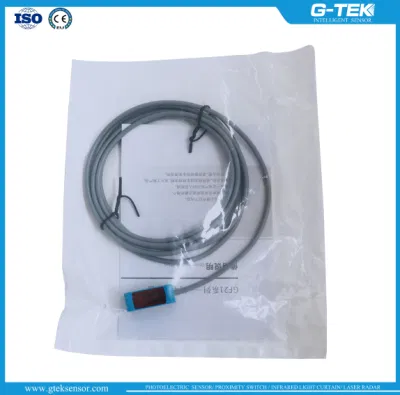

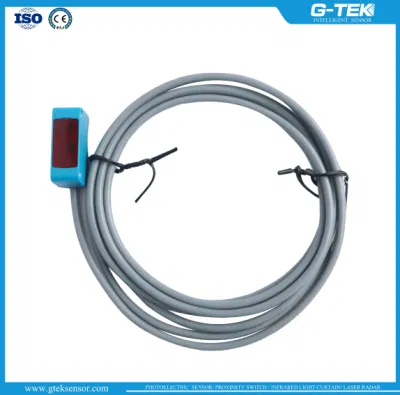

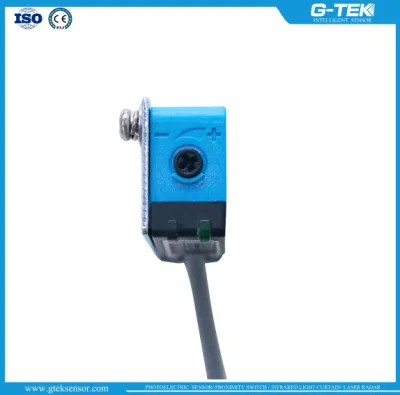

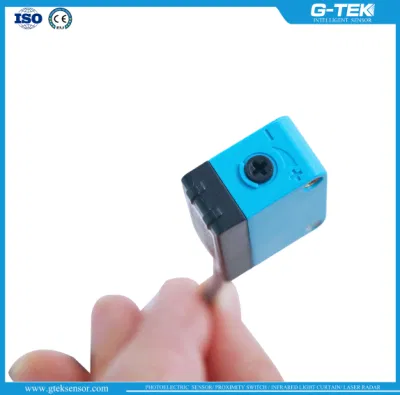

Detailed Photos
30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor
30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor
30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

Product Parameters
PF21B Diffuse Photoelectric Sensor
Model PF21B-150A PF21B-350A PF21B-900A
General parameters:
Working Principle Background suppression
Sensing Range 2~150mm 5~350mm 5~900mm
Light Source PinPoint-LED, visible red light LED, red light; Laser, infrared light
Wavelength 630nm 630nm,940nm
Spot Diameter Φ6mm @150mm Φ6.6mm @350mm LED:Φ23mm@500mm   Laser:Φ16mm@500mm
Electronic Parameters:
Operating Voltage 10~30VDC
No-load current Emitter <20mA; Receiver <15mA
Output Current  <100mA
Voltage Drop <1.5V
Response time <1.25ms <2.5ms 120ms
switching frequency  400Hz 200Hz 8Hz
Mode of Action  Light on, dark on, light/dark on switching, according to model selection
protection circuit Reverse polarity protection, short circuit protection
Indicator Power is the green indicator, output is the yellow indicator
Control output  Transistor output, NPN/PNP according to model selection
Mechanical parameters:
Appearance Size 12mm×33mm×21.5mm
Shell Material  ABS+PC
Lens Material PMMA
Connection Type 2m cable;
M8 connector;
The M8 connector with 300mm cable
Cable Diameter  Φ3.4mm
Conductor Cross
Section
 0.14mm²
Environmental Parameter:
Ambient brightness Sunlight 100000Lux; Incandescent lamp 3000Lux
Operating
Temperature
-25~55ºC
Storage Temperature -30~70ºC
Protection rating IP67
Product Application

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor
30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor
30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

Certifications

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor




Packaging & Shipping

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor
30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor


30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

Product self-inspection steps

1. Detect whether the installation position of the object and the proximity sensor has deviated, slacked, or skewed; whether there is slack, poor contact, or disconnection in the wiring and connection parts
2. Whether there is adhesion or accumulation of metal dust, etc.
3. Is there any abnormality in using temperature conditions and environmental conditions?
4. Set whether the flashing of the display lamp type is abnormal.
Suppose you must be careful not to disassemble and repair by yourself during the inspection, and to easily find out the fault. In that case, you can investigate the operating state of the sensor through the connection with the portable detector, and then repair it according to the situation.

In order to make the photoelectric sensor work stably for a long time, it should be regularly checked with the same contents as the general control equipment to maintain its long-term function. The photoelectric sensor can also be stocked. Once a problem with the photoelectric sensor is found, we can replace it in time without affecting the use of the sensor.


  30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor
Company Profile
Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider,  which was established in 2003 with business ranges from Proximity switches, photoelectric sensors, measurement, and safety light curtains to Laser rangefinder sensors, laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 in Xiqing District, Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacturing base. 30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

30-1000mm NPN Small Blind Area Background Suppression Diffuse Reflection Photoelectric Sensor, Photo Sensor for Automated Assembly Line and Logistics Conveyor

Q: Is the product shipped and arrived fast?
A: The production cycle for large quantities of products takes 15-30 days, depending on the product.

Q: Can you provide professional advice promptly?
A: We have a professional technical team that can patiently help you answer all professional questions.

Q: Can you provide customized products/services?
A: Yes, we can provide customized products, but the customization needs to meet a certain quantity.

Q: How is the quality of the product? Is the quality stable?
A: G-TEK Sensors has been focusing on the sensor field for 23 years. The quality of the sensor has the double affirmation of the CE certificate and customer reputation.

Q: What is your MOQ?
A: We offer MOQ per piece; it depends on your specific order.

Q: Is there any relevant terms of service and warranty information?
A: We offer a warranty on all items. The sensor products are guaranteed for 15 months, and the light curtain and lidar products are guaranteed for 18 months. For after-sales questions, you can directly contact the product salesperson.

Q: Is there any relevant information available for download on the website?
A: Yes, if you want to download the relevant product manual, you can go to our official website to download it.

Q: Can I be your reseller?
A: Yes, we are looking for distributors in overseas markets.
