Multi-Component Gas Analyzer for Online Analysis and Testing

Get accurate and real-time gas analysis with our Multi-Component Gas Analyzer for Online Analysis and Testing. Made in our factory for precise results.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Repeatability
≤±1%
Communication Interface
RS232 (Default) or RS485
Flow Display
Electronic Flow Meter
Sampling Method
Straight-Through Type
Hole Size
176mm × 307mm
Installation Method
Embedded
Transport Package
Wooden Case
Specification
176mm x 350mm x 356mm
Trademark
CYKY
Origin
Zhengzhou, China
Production Capacity
100pieces/Month

Product Description

Multi-component gas analyzer for online analysis and testing


Application of Multi-component gas analyzer:
It is widely used in online analysis and testing such as medical treatment, oxygen production, and air separation.

Instrument features of Multi-component gas analyzer:
1.Large-screen touch screen display, single screen displays three kinds of media concentration values, flow values and other related parameters;
2.Built-in original imported mass flow meter, the flow display is intuitive and convenient, and the service life is long;
3.The three measured media have temperature compensation function to reduce the influence of ambient temperature on measurement accuracy;
4.Historical data storage function, users can query historical data and historical curves locally at any time;
5.The user can choose the altitude module to avoid the influence of atmospheric pressure changes on the measurement accuracy;
6.H2O, CO users can choose not to use the range sensor;
7.Each measuring medium corresponds to one analog and alarm output;
8.Built-in alarm buzzer, redundant alarm points for three media;
9.The analyzer has two display modes, Chinese and English, which users can switch freely.
10. If the zirconia sensor is not energized, it does not be consumed, has a long life, and is easy to maintain;
11.Original imported fuel cell electrochemical sensor, fast response, high measurement accuracy, long calibration period, weak acid resistance;
12.Imported film capacitive sensor, fast response and high sensitivity;
13.The sensor has an automatic protection function without manual intervention;
14.No reference gas is required, and is not affected by the working environment oxygen concentration;
15.Very good selectivity for the gas to be measured.

Technical parameters of Multi-component gas analyzer:
Display mode 640 × 480 dot matrix LCD touch screen
Measuring range oxygen concentration: 10.00~ 99.99% O2
Carbon monoxide concentration: 0~ 10ppm CO
Dew point: -80.0~ 20.0 °C (basic type)
           -100~ +20.0°C (extended type)
Test accuracy oxygen concentration: ≤ ± 1% FS
Carbon monoxide concentration: ≤ ± 1% FS
Dew point: ≤±1.2%FS
Repeatability ≤±1%
Response time oxygen concentration: T90 ≤ 15S
Carbon monoxide: T90 ≤ 30S
Dew point: T 90 ≤ 50S
Analog output Three-way 4-20mA.DC (non-isolated output, load resistance less than 500 ohms), corresponding to three test media
Three-way programmable dry contact passive alarm output (contact maximum capacity 220VAC/2A), corresponding to three test media
Communication interface RS232 (default) or RS485
Sample gas flow oxygen / carbon monoxide channel 0.4 ~ 0.6L / min
Dew point channel 1.5 ~ 2L / min
Sample gas pressure inlet pressure 0.1 ~ 0.5MPa, outlet pressure is atmospheric pressure
Flow display electronic flow meter
Sampling method straight-through type
Service life oxygen sensor > 5 years (under normal use conditions)
Carbon monoxide sensor > 3 years (under normal use conditions)
Dew point sensor > 5 years (under normal use conditions)
Size 176mm × 350mm × 356mm (H × W × D)
Hole Size 176mm × 307mm (H × W)
Power supply AV170 ~ 264V 50/60Hz, power consumption is less than 20W
Air circuit interface NPT 1/8 internal thread
Installation method embedded

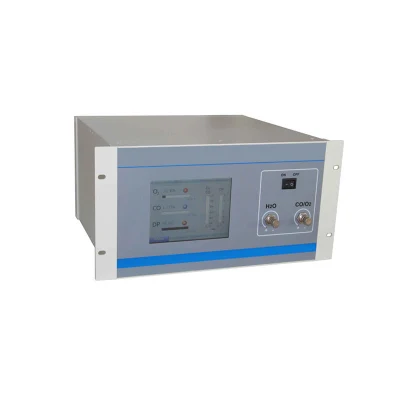

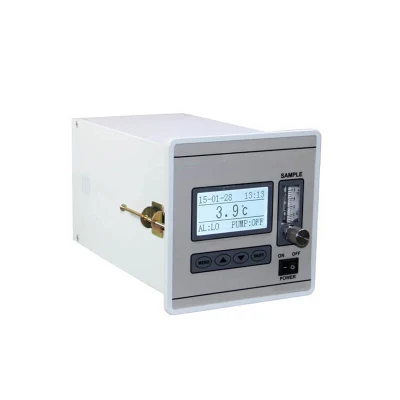

Related photos of Multi-component gas analyzer:
Multi-Component Gas Analyzer for Online Analysis and Testing
Multi-Component Gas Analyzer for Online Analysis and Testing
Multi-Component Gas Analyzer for Online Analysis and Testing

Multi-Component Gas Analyzer for Online Analysis and Testing
Multi-Component Gas Analyzer for Online Analysis and Testing

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Multi-Component Gas Analyzer for Online Analysis and Testing
Multi-Component Gas Analyzer for Online Analysis and Testing
Multi-Component Gas Analyzer for Online Analysis and Testing
