Multi Wavelength Optical Power Meter Fhp1 Mini Laser Power Meter

Looking for a reliable Multi Wavelength Optical Power Meter? Our Fhp1 Mini Laser Power Meter is designed and manufactured at our factory for accurate measurements.
Request a Quote

PRODUCTS DETAILS

  • Product Description
  • Standard Packaging
  • our product
  • Our service
  • FAQ

Product Description

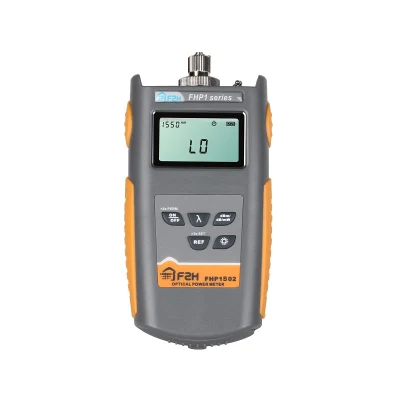

multi wavelength optical power meter FHP1 Mini Laser Power Meter



Product Description





Multi Wavelength Optical Power Meter Fhp1 Mini Laser Power Meter

Description:

Grandway provides high precision optical power meter. FHP1 Series Optical Power Meter is designed for use with an Optical Laser Source for performing optical loss measurements on fiber optic cables. FHP1 Series Optical Power Meter is designed for low budget. It can meet the basic demand in real testing. With the smaller size and light weight, it is easier to take in real testing.



Features:
1.Integrated with high performance optical detector
2.Medium size, light weight, and great portability
3.Lower power consumption
4.Easy to use
5.Integrated with auto-power-off, low power indication and measurement interchanging functions
6.Internal charging circuit, back light
7.Lower cost



Specification:

Model

FHP1A02

FHP1B02

Calibrated Wavelength

850/1300/1310/1490/1550/1625nm

Detector Type

InGaAs

Accuracy

±0.35db±10nW

Resolution

0.01dB

Linearity

±5%

Auto Power-off

Yes

Back-light

Yes

Reference Value

Yes

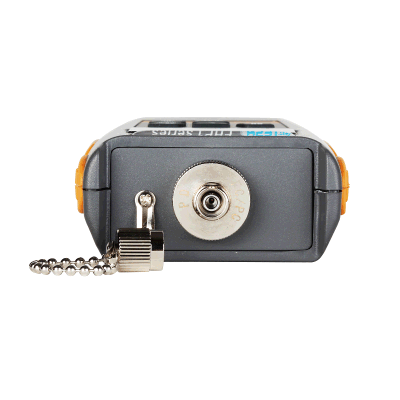

Connector

Interchangeable FC/PC, SC/PC

Measuring Range

-60 to +3dBm @1550nm

-40 to +23dBm @1550nm

USB Interface

N/A

Data Storage

N/A

Wavelength Recognition

N/A

Tone Detection

270, 1k, 2kHz (≥-40dBm)

270, 1k, 2kHz (≥-20dBm)

Operating Temperature

-10 to +50

Storage Temperature

-20 to +70

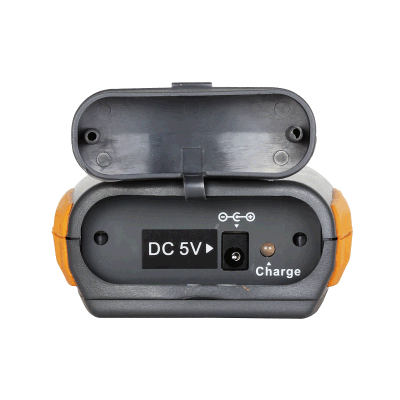

Power supply

Li-ion battery; 5V AC/DC adapter

Dimension

115L*62W*30mmH

Net Weight

140g

Standard Accessories:

FC/PC adapter, SC/PC adapter, Liion battery, AC/DC adapter, test report,

carrying bag, user manual

Optional Accessories:

interchangeable ST adapter (model: N000500);

male FC to female LC adapter for LC connector (model: HD078)



Standard Packaging

Standard Packing for Fiber Optic Power Meter F2H FHP1 Optical Power Meter:



1. Grandway Fiber Optic Power Meter F2H FHP1 Optical Power Meter
2.User Manual,
3.Software (CD),
4.USB Cable,
5.AC/DC Power Adapter,
6.Test Report,
7.Silicon Boot.
8. FC/PC,SC/PC,ST/PC interchangeable connectors
9. Carrying Bag

our product

Our main products as below:



 1

 Fusion Splicers

Japanese fusion splicer/Fitel/ Comway/DVP/;

2

OTDR

Grandway/Joinwit /Noyes / JDSU / EXFO /Yokogawa

 3

  Fiber Cleaver

INNO/Chinese/TriBrer

 4

Test instruments

     optical power meters/optical laser sources/visual fault locators / PON                      power meters /cable fault locators

 5

Accessories

patch cords/ fiber optic pigtails/fiber optic adapters/optical attenuators /optic join closures/optical fiber tools/OTDR Battery/fiber tools/electrode/;



Our service

After-sales Service(except consumables products):
> We guarantee all our electrical and mechanical parts for one year from the delivery date the machine running smooth in customer's place.
> We guarantee that each product is tested carefully and works very well before shipment. We strive for 100% customer satisfaction on every sale we complete.
> We are responsible for the whole lifespan of our products, and whenever you have questions during use, just call us, we are glad to offer technical support timely.

Life-long Maintenance Service:
> During the warranty period, we can repair or replace the defective parts for free.
> After the warranty time, we also repair the defective parts, but only charge part cost




FAQ

Why choose Beijing W&F Technology Co., Ltd ?

1.  Beijing W&F technology Co.,LTD is founded in 2006. It is a hi-tech company specialized in manufacturing and trading fiber splicing machine,otdr ,Optical Power Meter and other Fiber Optic testing equipments . Our company is one of the fiber optical test instrument suppliers which is located in Beijing - the capital of China.

2. Famous Brand of Fiber Optic Equipment are sold :  Onefind Splicing Machine ,Japanese Fusion Splicer ,EXFO OTDR ,Yokogawa OTDR , JDSU/viavi OTDR , W&F Optical Power Meter & Laser Source , VFL , FTTH fiber tools

3. The quality management is the most important part in our company.

4. "High quality production with superior service" --is our quality policy.

5. "Satisfaction of the clients is service standard" --is our marketing service strate.

6.Your opinion is precious for us.







 Multi Wavelength Optical Power Meter Fhp1 Mini Laser Power Meter
