Nanoradar Tsr20 Traffic Speed Radar Sensor with RS485, RS232 Interface

Nanoradar Tsr20 Traffic Speed Radar Sensor with RS485, RS232 Interface - We are a factory specializing in manufacturing high-quality traffic speed radar sensors with convenient RS485 and RS232 interfaces.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
  • Product Description
  • Product Parameters
  • Certifications
  • Our Exhibition
  • Test Equipment
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
TSR20
Detection Range
1:300m
Theory
Doppler
Transmit Frequency
24GHz
Detection Target
Vehicle
Speed Range
10-300km/H
Protection Class
IP66
Transport Package
Packed by Carton
Specification
137*117*35mm
Trademark
Nanoradar
Origin
China
Production Capacity
1000000PCS/Year

Product Description



Company Profile



Nanoradar Tsr20 Traffic Speed Radar Sensor with RS485, RS232 Interface

Hunan Nanoradar Science and Technology Co., Ltd is a subsidiary of Novasky, which is established in 2012 which is specialized in developing, producing and selling millimeter wave radar for security, UAV, Automotive, Smart Traffic and other industrial application, our radar sensor is covering 24GHz, 77GHz and 79GHz, we are successfully developed 10+ models MMV radar products which is mainly based on the MIMO system ray and cognitive radar technology.

Nanoradar's radar sensor detect range is 30-450meters, the accuracy is up to 85% for security radar to identify human, our product is hot-selling in the United of American, Korea, The united of Kingdom, France etc. Nanoradar is a major MMV radar manufacture in China.

Product Description



Nanoradar Tsr20 Traffic Speed Radar Sensor with RS485, RS232 Interface

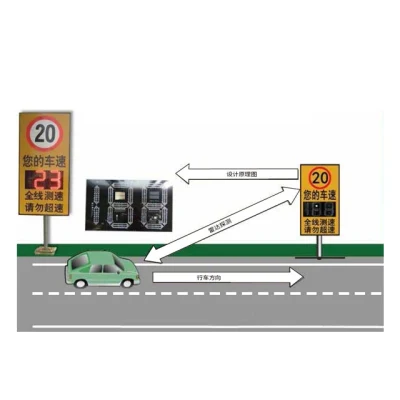

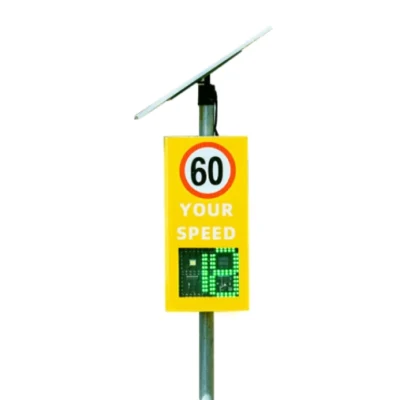

Radar speed signs are usually installed in areas where speeding is a concern or where vehicles come in close proximity to pedestrians such as school zones, construction zones, residential areas, and college campuses. In some instances, these signs are used to gather information to see if additional traffic control measures are needed.



The speed sign system is made up of following:

Speed detection: Traffic speed radar

Video Records: Camera, Lights

Front Data Process

Unit: Identification on Server

Networking Unit: Switch, Optical Transmitter & Receiver

Multiple installation is controlled at the management center.

Product Parameters

Transmit frequency  24GHz
Transmit power(EIRP)  20dBm
Response time  20ms
Transmit frequency error  -45~40MHz
Power  1.6W
Communication interface  RS484/RS232/Wifi/L(H) level
Speed range  10~300km/h
Speed accuracy  -1~0km/h
Direction  Coming/going direction could be distinguish
Distance range  15~150meters
Distance accuracy  ±0.5meter
Beam width/TX Azimuth(-6dB)7deg
Elevation(-6dB)28deg
Working voltage  9~16V DC
Working current  0.13A@12V DC
Working temperature  -40~85ºC
Working humidity  5%~95%RH
Size  148*124.5*26.5mm
Protection class  IP66



Nanoradar Tsr20 Traffic Speed Radar Sensor with RS485, RS232 Interface

Nano Radar Advantages:

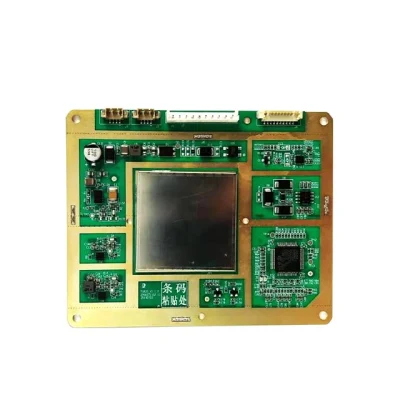

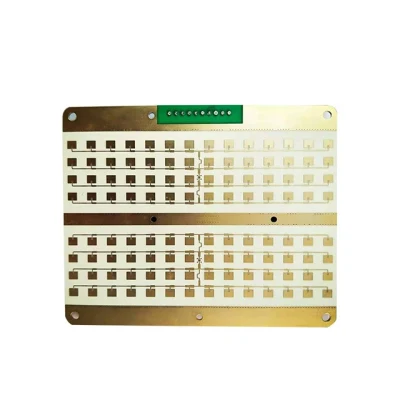

*Adopt 24 GHz MMIC Technology

*Small size, light weight and convenient installation

*Accurate speed measurement and difference within 1km/h

*Trigger distance up to 250-300 Speed measurement range: 10-300km /

*Multiple lanes supported

*All weather resistance, not affected by light, dust, rain, snow, haze and other harsh environment







Installation Cases on Real Site

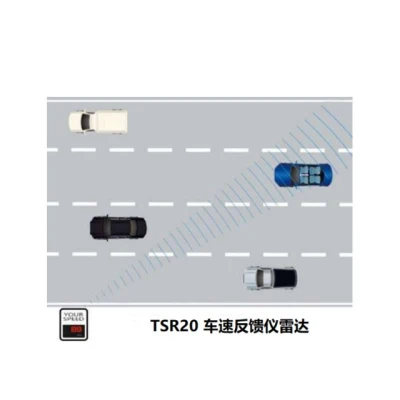

 TSR20 speed detection radar adopts CW modulation to realize the speed measurement. It is mainly deployed in expressway, ordinary highway, community gate, corner intersection and school road section etc to accurately detect and display vehicle speed, timely remind drivers of over-speeding, so as to effectively reduce road traffic accidents.Nanoradar Tsr20 Traffic Speed Radar Sensor with RS485, RS232 Interface
