Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe

Looking for a reliable fiber optic inspection probe? Our Neofibo Fk4-210p Checker Optical End Face Detector Tool is perfect for your factory needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Neofibo : Your Reliable Supplier
  • Single Core Patch Cord Polishing Solution
  • Products Description
  • Application
  • Specification
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
FK4-210P
Warranty Time
1 Years
Network
None
Product Name
200X Fiber Optic Microscope
Application
Telecom Network
Material
Steel
Color
Silver
Keywords
Fiber Optic Microscope
Connector Type
Sc FC LC St
Transport Package
Shockproof Packaging with Foam, Caton Box, or Wood
Specification
39X38X32 cm
Trademark
Neofibo
Origin
Shenzhen China

Product Description

Neofibo FK4-210P Checker Optical End Face Detector Tool Fiber Optic Inspection Probe


Neofibo : Your Reliable Supplier


Can provide you with reliable polishing solution
15-year Manufacturing Experience for OEM/ODM polishing program
Independent research and development patent - Neoholder®
Products have CE, ROHS certification
Support online video synchronization inspection machine
Equipment test report and operation guide can be provided
SGS certified factory, delivery speed and secure,50 units in stock
30 days quality problems can be returned


Single Core Patch Cord Polishing Solution



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe



Products Description





Description:

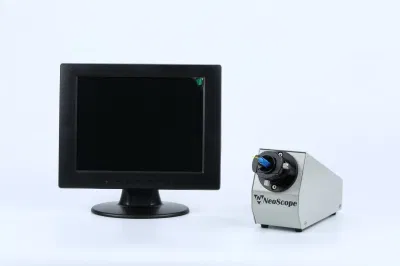

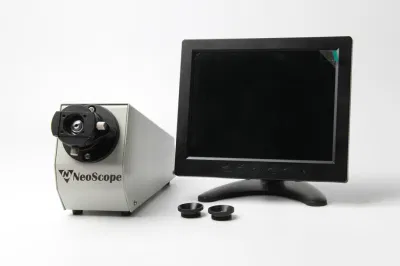

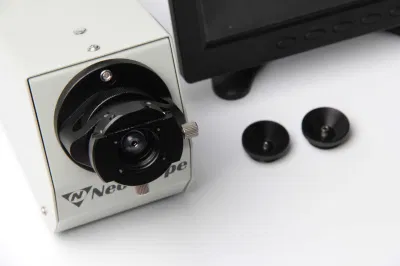

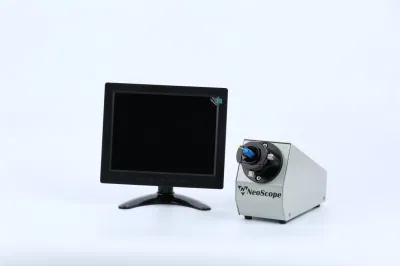

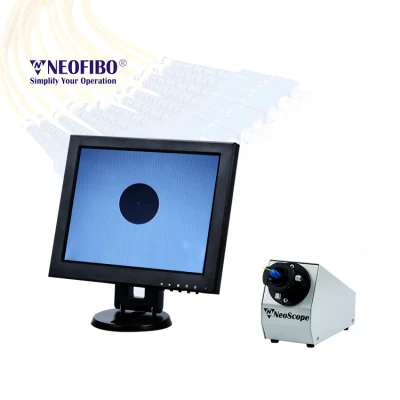

X & Y Axis Adjustable Inspection Scope is a kind of multi function inspection equipment. It is widely used for inspect fiber optic ferrule endface. Available for 1.25mm ferrule, 2.50mm ferrule, MTRJ, MPO, and MTP ferrules. The inspected connector adapter could move up & down or right & left. It is the professional microscope for fiber array.
Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe
Feature:
1.full range for X & Y Axis moving (4.0 x 3.0 mm)
2.Able to check all kinds of fiber connector endface.
3.High definition CCD procide sharp image.
4.Easy to find fiber core after changing ferrule adapters.
5.Video signal could input to LCD monitor.
6.Applicable to multi fiber end face inspection
7.Dedicated to MTRJ/MT/MPO/FA ferrules.
8.Customize special ferrule ada


Application

Adapted Connector:

FC/SC/LC/MT/MTRJ supporting UPC
FC/SC/LC/MT/MPO supporting APC
SMA905/D80/MTRJ supporting Ferrule

Specification

Standard configuration:
Product name and model
Quantity
fiber optic inspection microscope
1
FC/SC/ST interface adapter
1
MU/LC interface adapter
1
BNC signal line
1
AC power adapter
1
8 inch LCD monitor
1
Optional accessories:
Product name and model
Quantity
SC/APC interface adapter
1
FC/APC interface adapter
1
LC/APC interface adapter,ADPT-L
1
MPO/MTP interface adaptation, ADPT-MPO
1
SMA905 interface adapter, ADPT-SMA
1

Company Profile



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe




Shenzhen Neofibo Technology Limited.
We have 15 years experience.could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe

Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe
Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe





Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe


Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe



Neofibo Fk4-210p Checker Optical End Face Detector Tool Fiber Optic Inspection Probe




FAQ


1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.

2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.

3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;

4.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
