Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring

Get accurate surface water monitoring with our Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor. As a factory, we ensure high-quality and reliable products." Note: The SEO description is exactly 160 characters.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Application
  • Company Profile
  • Warehouse and Factory
  • Certifications
Overview

Basic Info.

Model NO.
OPD79
Material
ABS/PPS
Protection Level
IP68
Work Pressure
0~3bar
Measuring Range
Oxygen Content: 0.00~20.00 Mg/L
Resolution
0.01mg/L 1%
Accuracy
0.1 Mg/L 1%
Installation Size
1"NPT at Both Ends
Weight
170g
Measure Principle
Fluorescence Principle
Transport Package
Packaging
Specification
Diameter: 35mm, total length: 195mm
Trademark
drfn
Origin
China
HS Code
9026809000
Production Capacity
50000 Pieces/Year

Product Description



Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring

Product Description

Features& Advantages

No need to be calibrated and can meet the requirements of field work and short-term or long-term operations.

without consuming oxygen, especially when the oxygen concentration is very low.

All-in-one package, the luminescent dissolved oxygen sensor can be conveniently used with the online transmitters, DTU, and portable instruments.

RS485 digital interface, standard Modbus communication protocol, support access to standard industrial control system.
The protection grade is IP68

Internal storage of calibration data, support offline calibration, plug and play on site.

Product Parameters

Specification Of Digital PH Meter

Product Model OPD79
Measuring range Oxygen content: 0.00~20.00 mg/L
saturation: 0~200%
Resolution 0.01mg/L  1%
Accuracy 0.1 mg/L
1%
Response Time 90% of the value in less than 60 seconds
Temperature Compensation Built-in temperature unit, automatic temperature compensation
Calibration Method One or two points
Work Pressure 0~3Bar
Operating Temperature 0.0~50.0ºC
Material ABS
Dimensions Diameter: 35mm, total length: 195mm
Installation Size One inch 1"NPT at the beginning and end of the installation thread; insertion depth 100 (including cleaning plug 115)
Protection level IP68
Weight 170g

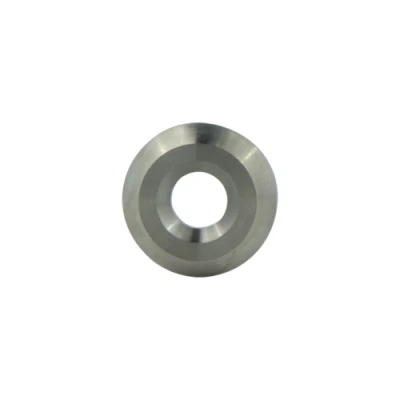

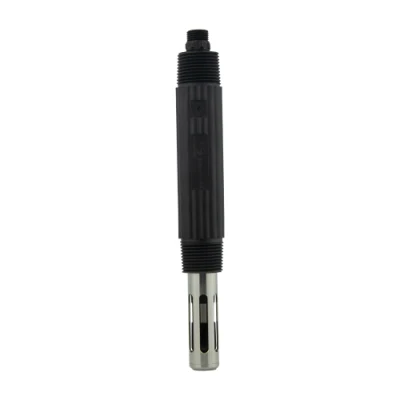

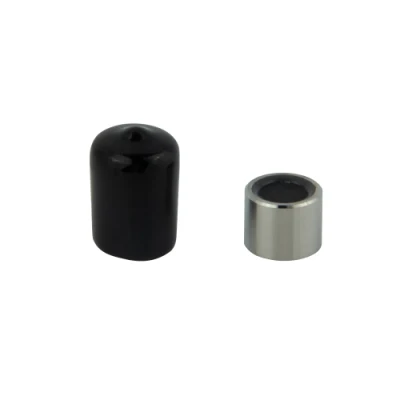

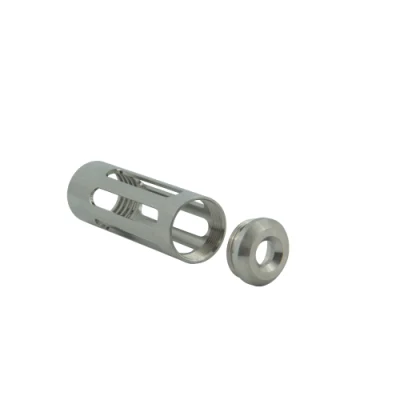

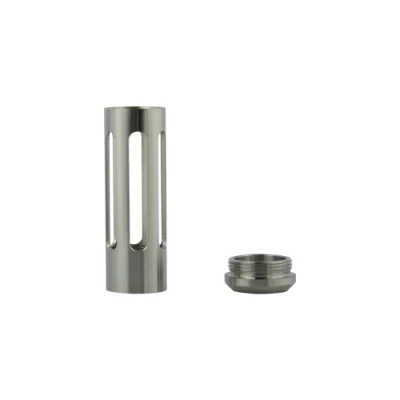

Detailed Photos

Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring

Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring
Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring


Application



Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring

Company Profile

Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring

Warehouse and Factory

Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring
Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring



Certifications

Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring

FAQ
Q: Is your company a manufacturer?
A: Our company is a professional manufacturer of water analysis instruments and sensors, integrating development and production together. The quality of our products is guaranteed strictly.

Q: What's the location of your company?
A: Our company is Located in Suzhou near Shanghai,So we enjoy convenient water, land and air transportation,which is very efficient and fast.

Q: How is your service?
A: We will try our best to offer you good before-sale and after-sale service. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.



Transportation
Ntc 0-20mg/L Measure Range Do Dissolved Oxygen Sensor for Surface Water Monitoring
