Oxygen Meter O2 Detector (0-30%VOL)

Get accurate oxygen level readings with our Oxygen Meter O2 Detector (0-30%VOL). As a factory, we produce reliable and high-quality oxygen detectors.
Request a Quote


Basic Info.

Model NO.
LCD HD Color Screen,IPS Display
Explosion Proof Sign
Exdll CT4 (Ia)
IP Rating
IP 66
Rechargeable Lithium Battery
Large Data Logger(100,000 Groups)
Alarm Type
Sound and Light Alarm
Pumping,Build-in Pump
Case Material
Transport Package
Size: 26*21*14cm
Product size: 21*8*7cm
Korno or customized
HS Code
Production Capacity

Product Description

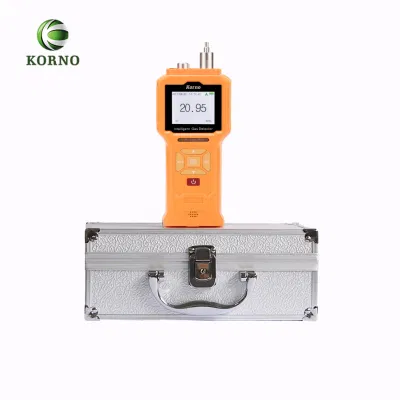

Oxygen Meter O2 Detector (0-30%VOL)
1) Applications

Confined Space Entry
Sewage treatment plant
Chenmical plants
Perimeter Monitoring
Leak Detection
Landfill Monitoring

2) Selling points
☆★ Portable,ABC+PC plastic case,IPS display
☆★ STEL&TWA readouts
☆★ Temperature and humidity detect function
☆★ Each kind of sensor can calibrate up to 6 target concentration values
☆★ Up to 100,000 group data could be storage
☆★ Can be exported to the computer to view historical data in a graph format or EXCEL format
Oxygen Meter O2 Detector (0-30%VOL)

3) Product Specifications
Product type: Portable,Oxygen(O2)
Detection Range: 0-30%VOL
Resolution: 0.01%VOL
Temperature and  relative humidity:
Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RH
Detection pattern: Pumping, the flow rate is adjustable.
Detection Accuracy: ≤±3%F.S Linearity Error: ≤±1%F.S
Reaction Time: ≤20 S(T90) Zero drift: ≤±1%(F.S/Year)
Detection Method: Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
Storage Method: Automatically saving and manually saving is available,
Up to 100,000 group data ,user can view history data on the display.
Explosion Proof Sign: Exdll CT4 (IA) Case material: ABS+PC
IP rating: IP66 Operating Temperature: -30 ~ 60ºC(-22~144ºF)
Power: 4000mA high capacity polymer rechargeable battery Operating Humidity: ≤90%RH,Non-condensing
Dimensions / Weight: 180*88*55 mm(L×W×H)
0.5 Kg(net weight)
Operating Pressure: -30Kpa ~ 100Kpa

Oxygen Meter O2 Detector (0-30%VOL)
4) Our service:
All products and accessories have been 100% tested before shipping.
We provide 12-Months warranty for non-deliberate damage.
OEM & ODM are welcomed~

Oxygen Meter O2 Detector (0-30%VOL)Oxygen Meter O2 Detector (0-30%VOL)

5) F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.

Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.

Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
