Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear

Shop now for Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear. Our factory offers reliable and high-quality sensor solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
FC-SPX307Z/D
Certification
RoHS
Customized
Customized
Item
U-Shaped Photoelectric Sensor
Reflection
Through Beam Type Sensor
Light Source
940nm Infrared Modulated Light
Standard Detection Object
Dia 2*0.8mm Opaque Object
Slot
5mm
Operating Voltage
5V-24 V DC+/-10%
Load Current
100mA
Ouput Method
NPN No.Nc(PNP No.Nc)
Wiring
4 Wires
Frequency
1kHz
Response Time
0.3ms Max
Protection Degree
IP64
Operating Temperature
-10~50ºC(No Icing)
Application
Industrial Automation
Weight
27g
Transport Package
Single Plastic Bag
Specification
27g
Trademark
F&C
Origin
China
HS Code
8536500000
Production Capacity
100000/Month

Product Description

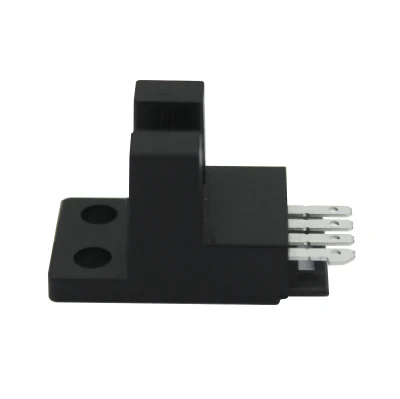

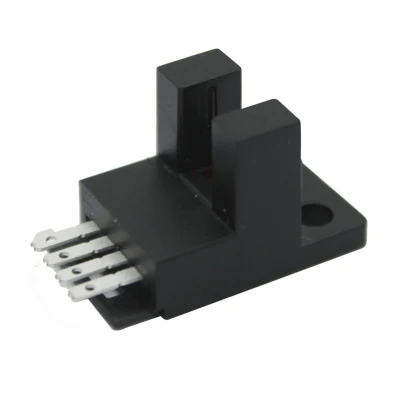

Pin type NPN ThroughBeam Optical Sensors Position Detection for XYZ Linear

micro photoelectrc switch 5V-24VDC
Model  FC-SPX307ZP/D
Shape slot/fork photoelectric switch 5mm
color  black
Amplifier Amplifier Built-in
wired 4 wires, brown, blue, black, white; 4-pin plug type
voltage  5V-24V DC
lead time  5days
certificate CE, ROHS, ISO
light source infrared
customize anti sun-light type available
output NPN transistor ;  PNP transistor
replace model  SX674,  PMY44
Models Detection Mode Detection Distance  Entry Cable
FC-SPX307PZ PNP.NO.NC 5mm 4-wires, cable type
FC-SPX307Z NPN.NO.NC
FC-SPX307PZ/15D PNP.NO.NC M8 with 150mm cable, 4 pins, Connector type.
FC-SPX307Z/15D NPN.NO.NC
FC-SPX307PZ/D PNP.NO.NC 5mm 4-pin Plug type
FC-SPX307Z/D NPN.NO.NC 5mm
Advantages
1. small volumm, little space to install. and three type for choice; 4-wire type, M8 4-pin type with150mm pre-wired cable and 4 pins type infrared photoelectric sensors.
2. Widely Voltage range 5V-24V DC.
3. Anti Strong light and Sunlight design.
4. CE , ROHS, ISO certificate.
5. OEM/ODM accepted, with MOQ 500pcs.
6. Usually Suitable for Zero-point Induction, reset detection and position limit and protect.

Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear
Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear
Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear


Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear
Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear


Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear

Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear

F&C Sensing Technology is a high-tech enterprise, specialized in R&D, manufacturing and marketing industrial automation control sensors which is mainly for limit protection, counting and presence or absence judgement.There are 14 series and around 5000 models available, based on Changsha, Dongguan and Taiwan, F&C sensors and our authorized distributors around the world are dedicated to provide wonderful one-stop-service  to all the  customers.Our main products include Fiber optic sensor, Fiber Unit, proximity sensor,photoelectric sensor, light curtain, label sensor, pressure switch, magnetic switch, din-rail power supply etc.And producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear
Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear
Photoelectric Sensor Switch factory Office, exhibition, staffs & customers
Pin Type NPN Throughbeam Optical Sensors Position Detection for Xyz Linear
