Professional and Stable DIP Wave Soldering Machine for LED Driver

Discover our professional and stable DIP wave soldering machine for LED driver at our factory. High-quality equipment for efficient LED production.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Company Profile
  • Our Advantages
  • After Sales Service
  • Packaging & Shipping
Overview

Basic Info.

Model NO.
N350
After-Sales Service
Online
PCB Width
30-350mm(400/450/500/610mm)
Solder Pot Capacity
320kg
Running Power/General Power
6-8kw/20kw
Preheating Zone
1600mm 3 Independent Hot Air Preheating
Conveyor Speed
200mm-1800mm/Min
Melting Time
80 Minutes
Solder Pot Material
316stainless Steel/All Titanium/Cast Iron Enamel
Preheating Power
10kw/Zone
Conveyor Motor
3pH 380V, 60W 3pH 380V, 90W
Flux Capacity
6.5liter
Transport Package
Wooden Box
Specification
3900*1420*1750mm
Trademark
Jaguar
Origin
China Shenzhen
HS Code
85151900
Production Capacity
100PCS/Month

Product Description

Wave Soldering Machine N350


Product Description

Introduction:

Professional and Stable DIP Wave Soldering Machine for LED Driver

1.Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2.Automatic power system, frequency converter control, automatic board input system.
3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
4. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
5.Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
6.Tin stove adopts imported high frequency conversion motor independent control, stable performance.
7.Lead-free solder furnace with independent design, environmental protection and safety,
easy to clean.
  1. Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
  2. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
  3. With black box memory function, the machine can always store the production management records, improve work efficiency.
  4. Automatic claw cleaning function ensure the cleanliness of claws.
  5. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.

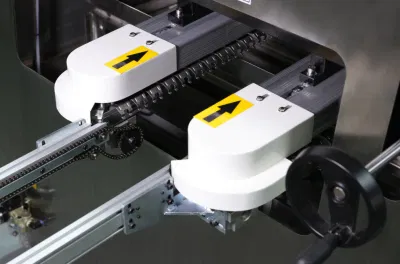

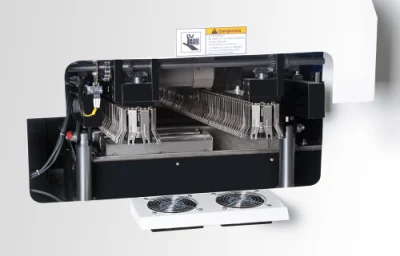

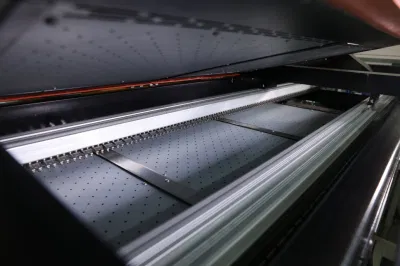

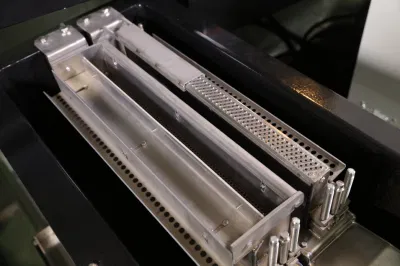

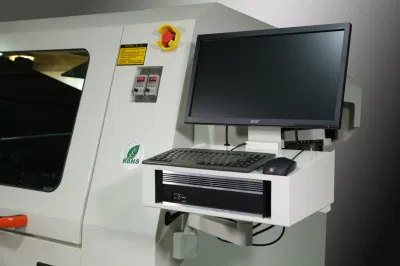

Detailed Photos



Professional and Stable DIP Wave Soldering Machine for LED Driver


Product Parameters

Specification:






General specification
Dimension;3900*1420*1750mm
Weight:Approximately:1300kg
Start Up Power:Approx 24KW
Normal running power :6-8 KW
Power supply :3ph,AC380V/220V 50HZ
Control systems:PC With Window 7+PLC
PCB counter





Conveyor systems
Direction: Left to Right ,Front Fix(R to L)
Titanium Alloy V shape Finger
350mm PCB loading buffer at entrance(Optional:400mm,450mm,500mm,610mm)
Conveyor speed control method: Motor(Panasonic)
Conveyor speed:300-2000mm
Conveyor angle:4-7°
PCB Component Height"Top 120mm bottom:15mm




Spay Flux Systems
Stepper motor drive reciprocating Spray
7-UP ST-8 Nozzles
The capacity of Flux is 6.5/liter
Flux auto Feeding (Option)
Spary air pressure:3-5bar
Modular structure for easy maintenance


Heating system
Heating zones :Bottom 3 zones,
The Length of heating zones:1600mm
Heating method:Forces hot air /
Heating zones modularization easy to maintenance


Solder pot
The capacity of solder pot :320KG
Two wave :Turbulence Wave and Lambda 2nd Wave
Materials :Titanium alloy (Op:Cast iron enamel)
Auto Solder Pot Moving (go in, go out ,up,down)
Cleaning Finger systems.



Parts List:
NO. Spares Name Brand Origin
1 Display Acer  China
2 Computer Industrial computer China
3 PLC Siemens Germany
4 Temperature control module Siemens Germany
5 90W conveying Motor Panasonic Japan
6 Solder pot wave motor ZIK China
7 Preheating Coils Taizhan China
8 Solder pot heating tube Taizhan China
9 Main Switch Mitsubishi Japan
10 Contactor and currency limiter OMRON Japan
11 Intermediate relay OMRON Japan
12 Fuse holder and fuse tube OMRON Japan
13 Programming controller CARLO GAVAZZI Switzerland
14 Frequency Converter Delta Taiwan
15 Power button and indicator light Izumi Japan
16 Temperature detector Nihon Dennetu Japan
17 SSR CARLO GAVAZZI Switzerland
18 Photoelectric sensor SICK Japan
19 Cylinder SMC Japan
20 Flux sprayer 7-UP Taiwan
21 Patented titanium alloy claws JAGUAR China
22 Air/Main Switch CHNT China
23 AC Contactor CHNT China
24 Button Switch   France
