Product Description

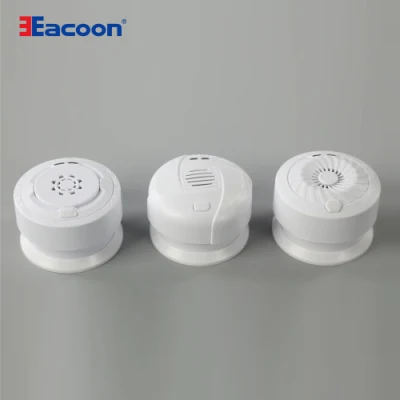

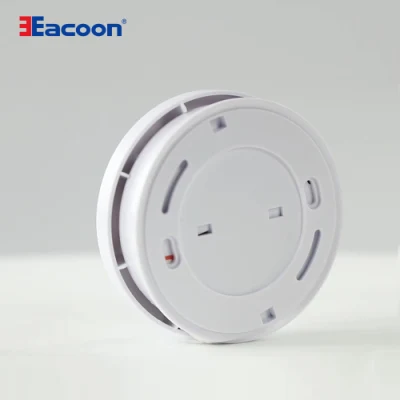

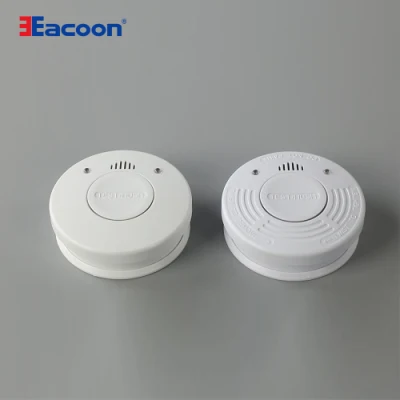

Smoke System Wall Mounted Sensitive Gas Alarm Detector
Optical/photoelectric Smoke Alarm
Battery operated
Low battery single
Test button(RED LED)
Solid connections and battery included
CE-CPD EN14604 APPROVAL
Technical Parameter:
Power Source: 9V battery
Quiescent current: 612uA
Working Temperature: -10~+40
Alarm decibel: ≥85db/3 m
Size: (diameter) 101×34mm
The smoke alarm works on the principle that infrared scatters in the smoke to probe the smoke which is generated by the incomplete combustion at the initial stage of the fire. It consists of photoelectric system, signal processing identification circuit and alarm circuit. The infrared scatters on the surface of the smoke when the smoke enters the darkroom of the detector, then the photoelectric diode receives the scattered light and generates the photoelectric signal current. The photoelectric signal generates the alarm signal after being processed by the identification circuit, accordingly the purpose of alarming is achieved.
