Touch Screen Monitor Vending Hospital Self Service Kiosk Body Fat Analysis

BodyTech Analyzer: introducing our revolutionary touch screen monitor vending hospital self-service kiosk for accurate body fat analysis. Proudly made in our factory.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • After Sales Service
  • FAQ
Overview

Basic Info.

Model NO.
SH-T15
Gross Weight
80kg
Transport Package
Wooden Carton
Trademark
SHANGHE
Origin
China
HS Code
8423100000
Production Capacity
1000sets Per Month

Product Description

Product Description

Touch Screen Monitor Vending Hospital Self Service Kiosk Body Fat Analysis

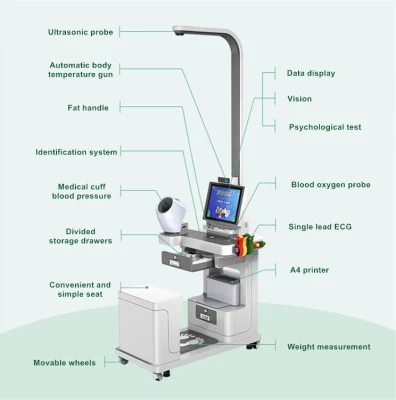

1.Ultrasonic height measuring instrument
2.Face recognition/no contact temperature meter
3.Fat body composition analysis system
4.Oxygen measuring meter
5.Blood pressure heart rate measurement system
6.Human weight measurement system
7.A4 print report system
8.Smart identity recognition system
9.Natural sitting position adjustment system
10.ECG measurement system
11.System testing system
12.Main operation platform, data show, health education
13.Visual, mental health, Chinese medicine physical examination health testing system
14.Move -resistant all -elephant pulley, convenient movement transfers


Touch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat Analysis

Detailed Photos


Touch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat AnalysisTouch Screen Monitor Vending Hospital Self Service Kiosk Body Fat Analysis

Product Parameters

Model SH-K5 Smart Health Checkup Kiosk
Main control system

15.0-inch high-definition touch screen, new Android system

Identification Face recognition, ID card, mobile phone number/etc., social security card (optional), QR code/barcode recognition (optional), etc.

Height measurement

New high-precision altimeter sensor
range: 50-205CM, accuracy ±0.5CM


Weight measurement

Industrial-grade large-capacity load cells
range: 5-500KG, accuracy ±0.1KG


Fat measurement

Range: 5.0%-75%, division value: 0.1%; can analyze body fat mass, body muscle mass, body bone mass, basal metabolism, protein and other human body components

Blood pressure measurement

Electronic sphygmomanometer,
blood pressure: 0-299mmHg (0-39.9kpa) pulse: 40-180times/min


Blood oxygen measurement

The finger clip oximeter measures blood oxygen, the measurement range is 35%-100%; the accuracy is ±2% within the range of 75%-100%; the accuracy is ±3% within the range of 50%-74%;

Temperature measurement

Infrared forehead thermometer to measure body temperature, optional wireless temperature measurement, measuring range: 32.0°C-42.5°C. Resolution: 0.1°C Measuring distance 1-5;

Blood sugar measurement

20-600mg/dl (1.1-33.3Mmol/L);
±20% when blood glucose concentration ≥ 75mg/dl (4.17mmol/L)


Uric acid test

Detection range: 3-20mg/dl (0.18-1.19mmol/L)

Cholesterol testing

Detection range: 100-400mg/dl (2059-10.35mmol/L)

Waist to hip ratio measurement

Waist and hip measurements;

Vision measurement

Vision depression and other mental health screenings

Mental Health Test

Mental health screening for stress, anxiety, depression, etc.

TCM constitution identification

Automatic judgment and analysis of the nine constitutions of TCM, including yang-deficiency constitution, qi-deficiency constitution, and phlegm-dampness constitution

Urinalysis

Test items: white blood cells, nitrite, urobilinogen, protein, pH value, occult blood, specific gravity, ketone bodies, bilirubin, glucose, vitamin C, microalbumin, creatinine, calcium ion and other fourteen items
Four blood lipidsc

Test items: total cholesterol, high-density lipoprotein, triglyceride, low-density lipoprotein

ECG detection

Single-lead/12-lead ECG (optional)

Print report

Thermal printer; optional A4 black and white/color printer

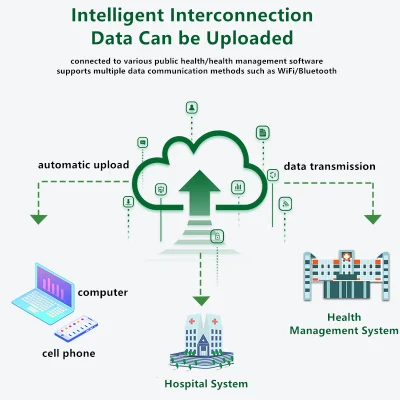

Data upload

Standard configuration: RS-232 serial port, optional configuration: Bluetooth, 4G, WIFI, cloud transmission, etc.

Docking system

APP, public health system, HIS/LIS system, membership management system, health software, etc.

Branding

Health education, you can customize screen pictures, videos, audios, text slogans, etc.

Health report

Print small ticket, A4 color/black and white report (optional), mobile phone WeChat scan code to view

Expand options

12-lead ECG, hemoglobin, vital capacity, glycosylated hemoglobin, alcohol testing, etc.;

Product Size

L*W*H: 965*709*2316mm;
Packing size: 1080*760*1550mm;
Net weight: 55KG
Gross weight: 80KG
(This is a full-featured specification, the actual product shall prevail)
