Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer

Get accurate water analysis with our Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer. Factory-direct quality for your testing needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Our Advantages
  • Product Parameters
  • Detailed Photos
  • Certifications
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
M500T
Type
Multi-Parameter Analyzer
Product Name
Touchscreen pH ORP Do Conductivity TDS Water Mult
Measuring Parameters
Touchscreen pH ORP Do Conductivity TDS Water Mult
pH
-2.000 to 20.000 pH
Resolution
0.1, 0.01, 0.001pH
ORP
-2000.00 to 2000.00 Mv
Px
-2.000 to 20.000 Px
ISE
1e-9 to 9.999e9
Conductivity
0.000 μs/Cm to 2000 Ms/Cm
Resistivity
5.00 Ω·cm~100.00 MΩ·cm
TDS
0.000~1000 Ppt
Salinity Type
Nacl%
Dissolved Oxygen Concentration
0.00 to 99.99 Mg/L
Saturation
(0.0 to 600)%
Temp Range
-10 to 135 C
Data Management
1000 Groups
Transport Package
55X40X50cm
Specification
10kg
Trademark
NANBEI
Origin
China
HS Code
9031809090
Production Capacity
1000PCS/Month

Product Description


                                   Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer
Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer


Product Description

  • Color High contrast LCD touchscreen, 7.0 inches.
  • Intelligent operation system provides features including user management, calibration management, method management, data management and etc.
  • Multi-reading feature allows auto-read, timed-read and continuous-read.
  • Automatic/Manual temperature compensation ensures accurate results.
  • Data Storage 1000 sets for each parameter (GLP-compliant).
  • Data analysis feature helps user review, compare and recalculate results.
  • Support for USB or RS-232 communication.
  • Reset feature automatically resumes all settings back to factory default options.
  • IP54 waterproof.

Our Advantages

pH

  • 1-6 points calibration with Standard Recognition.
  • Selectable pH buffer groups, including DIN, NIST, USA, MERK, JIS, GB.
  • Support for pH standard group customization.
  • Automatic electrode diagnosis with pH slope and offset display.

Ion
  • 1-6 points calibration
  • Selectable measurement unit, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.
  • Multi-measurement modes are supported, including Direct Reading mode, Standard Addition mode, Sample Addition mode and GRAN mode.
  • Over 10 methods are built-in, including F-, Cl-, Br-, I-, NO3-, BF4-, NH4+, K+, Na+, Ca2+, Cu2+, Pb2+, Ag+ and etc., user-defined method is supported.

Conductivity
  • 1-5 points calibration with Standard Recognition.
  • Settable parameters, including cell constant, reference temperature (5/10/15/18/20/25°C), temperature compensation coefficient and TDS factor.
  • Temperature compensation type (none, linear, pure water).

DO
  • Support for air-saturated water or zero oxygen calibration.
  • Auto barometric pressure compensation.
  • Manual Salinity Factor Correction.

Selectable pressure unit, including kPa, mbar, Torr, Atm.

Product Parameters

Model M500T
Parameters pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)
pH Range -2.000 to 20.000 pH
Resolution 0.1, 0.01, 0.001pH
Accuracy ±0.002 pH
Calibration Points Up to 6
Standard Customization Yes
Calibration Reminder Yes
Standard Recognition NIST, GB, DIN, USA, MERK, JIS buffers
Slope Limit Yes
mV/ORP Range -2000.00 to 2000.00 mV
Resolution 0.1, 0.01 mV
Accuracy ±0.1 mV or ±0.03% of
reading whichever is greater
EH ORP Mode Yes
ORP Calibration Points 1 custom point (relative mV)
pX Range -2.000 to 20.000 pX
Resolution 0.1, 0.01, 0.001 pX
Accuracy ±0.002 pX
Calibration Points Up to 6
ISE Range 1E-9 to 9.999E9
Units mol/L, mmol/L, g/L, mg/L, μg/L, ppm
Resolution Up to 4 significant digits
Accuracy ±0.3%
Calibration Points Up to 6
Conductivity Range 0.000 μS/cm to 2000 mS/cm
Resolution 0.001 μS/cm minimum,
various with range selection
Accuracy ±0.5% FS
Reference Temperature 5, 10, 15, 18, 20, 25 ºC
Calibration Points Up to 5
Calibration Reminder Yes
Standard Recognition 10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm
Resistivity Range 5.00 Ω·cm~100.00 MΩ·cm
Resolution 0.01 Ω·cm minimum
Accuracy ±0.5% FS
TDS Range 0.000~1000 ppt
Resolution 0.001 ppm minimum, changed with range
Accuracy ±0.5%FS
Salinity Type NaCl%
Range (0.00~8.00)%
Resolution 0.01%
Accuracy ±0.1%
Dissolved
Oxygen Concentration - Polarographic
Range 0.00 to 99.99 mg/L
Resolution 0.01 mg/L

Accuracy
±0.3mg/L (0.00 to 20.00 mg/L);
±10% (20.00 to 99.99 mg/L)
Calibration Reminder Yes
Calibration Points Air-saturated water or zero point
Barometric Compensation Yes
Manual Salinity Factor Correction Yes
% Saturation -Polarographic Range  (0.0 to 600)%
Resolution 0.10%

Accuracy
±2.0%
Temperature Range -10 to 135 ºC, 14 to 275 ºF
Unit ºC, ºF
Resolution 0.1
Accuracy ±0.1
Measurement Reading Mode Auto Read (Fast, Medium, Slow), Timed, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 1000 Groups
GLP Features Yes
Log Management Yes
Inputs pH Electrode BNC(Q9)
DO with Temp. Probe 4-pin aviation connector
Conductivity with Temp. Probe 5-pin aviation connector
Outputs USB USB 2.0 flash memory device, PC
RS 232 printer, scanner, auto-sampler
Display options Backlight Yes
Auto Shutdown 1~60 min, off
IP Rating IP54
Date and Time Yes
General Power AC Adapter, 100-240V AC input, DC24V output
Dimensions 220×195×68 mm
Weight 950g (2.09 lb)

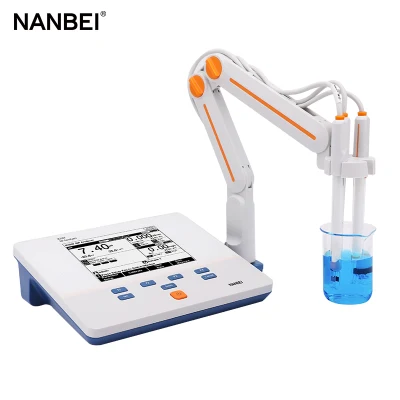

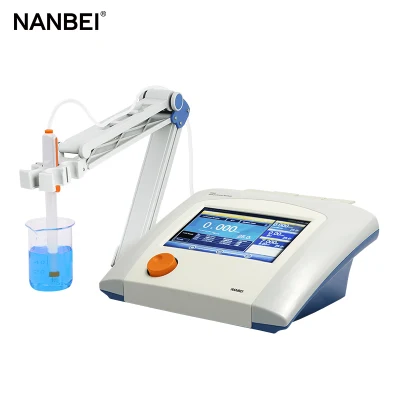

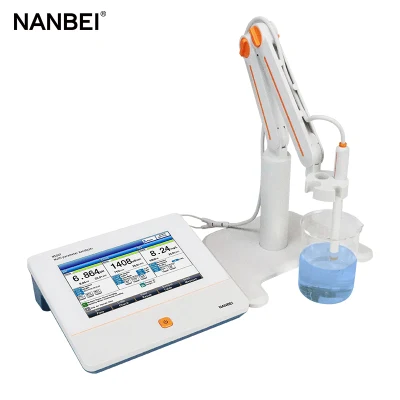

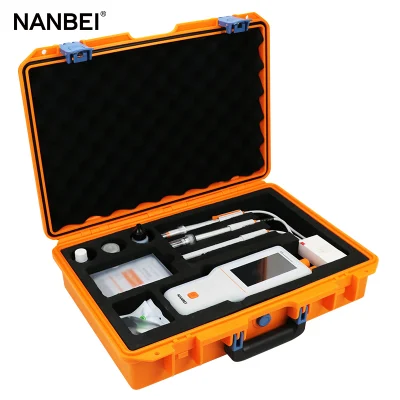

Detailed Photos

Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer



Certifications

Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer

Company Profile

Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter AnalyzerTouchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer


Packaging & Shipping

Touchscreen pH ORP Do Conductivity TDS Water Multi-Parameter Analyzer

FAQ

Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem

Q2:OEM,ODM acceptable or not?
Absolutely Yes

Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...

Q4:Can we visit your factory online?
Absolutely no problem

Q5:Can online video inspection before shipment?
Absolutely no problem

Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem

Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements

Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.

After-sale service:

  1. Warranty : 1 year
  2. We supply free part for quality problem in warranty
  3. Long life technical support and service
