Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor

Get accurate water level readings with our Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor. As a factory, we offer top-quality sensors for various applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SUP-ZP
Certification
ISO
Customized
Customized
Name
Level Transmitter
Output
4-20mA(2 Wires)
Accuracy
0.5%Fs
Range
0-30m
Power Supply
18~28V DC
Blind Zone
<0.4-1.8m(Different for Range)
Indication
OLED
Indication Resolution
1mm
Power Consumption
0-0.6W
Material
ABS
Transport Package
Carton
Specification
92mm*198mm*M60/ 79mm*300mm*DN80
Trademark
Supmea
Origin
China
HS Code
902610000
Production Capacity
50000piece/Year

Product Description

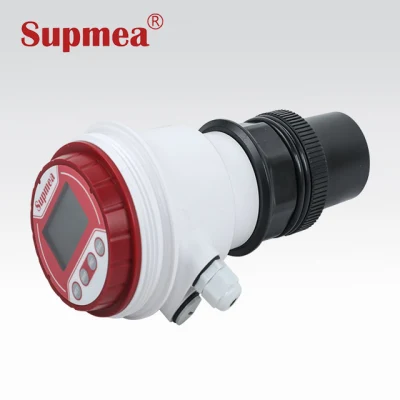

Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor

The Liquid integrated ultrasonic level transmitter for irrigation is mounted on top of the vessel. Under the control of the
electronic unit, the probe emits ultrasonic wave pulse to measured medium. The sound wave is reflected by the surface
of medium, a part of reflection echo is received by the probe and converted into electrical signal. From the emission of
the ultrasonic wave to the new reception,the time is direct proportion to the distance from the probe to the measured
medium. The electronic unit detects the time and calculates out the easured distance according to the known sound
velocity. Use subtraction to obtain the value of medium position. It is widely used in open pipe, oil tank, pump station,
water tower, dam, open channel, difference between levels etc.

Range 5,8,10,12,15,20,25,30m
Blind zone <0.4-1.8m(different for range)
Accuracy ≤5m  ±0.5%>5m  ±0.3%
Indication resolution 1mm
Indication OLED
Keyboard 3-digit SMT tactile keys
Power 18~28V DC
Power consumption <0.6W
Output (optional) 4~20mA  RL<600Ω
4~20mA + HART
Operating temperature normal
Operating pressure normal
Material   ABS
Overall dimension Φ92mm×198mm×M60/79mm×300mm×DN80
Installation M60X2 or ¢61MM/DN80 (Flange)
Protection degree  IP65 (optional)

Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Packing & Delivery:

Electromagnetic flow meter is packed in cartons ,and wooden boxes (from DN80)

Lead time : Most products within 7 working days(if have stock, could be sent same day), customized product would be longer

Delivery process:


1.Use customer's own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)

2.Delivery time is 2-7 working days, some products have stock in Malaysia.

3.Help to do the destination customs clearance

Overseas Service Center Address:

Singapore/ Philippines/ Malaysia/ Kroea/ Indonesia/ Germany/ India

Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor

Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
Ultrasonic Level Sensor Water Level Meter Tank Optical Level Sensor
FAQ:

Q: How long will you give me the reply?
A: we will contact you in 3 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory,Our factory and office are all in Hangzhou,Zhejiang.

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.

Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU ,Credit Assurance

Q: What is the warranty for your product ?
A: Warranty: 2 years, Lifetime maintenance.

Q: How soon can you arrange the production?
A: Once getting your product confirmation and receiving your payment, we will arrange the production immediately. For some products we have it in stock.

Q: Could you provide me the shortest lead time?
A: For somre standard products we have it in stock . Pls tell me your detailed requirements, we will send to you as early as we can.
