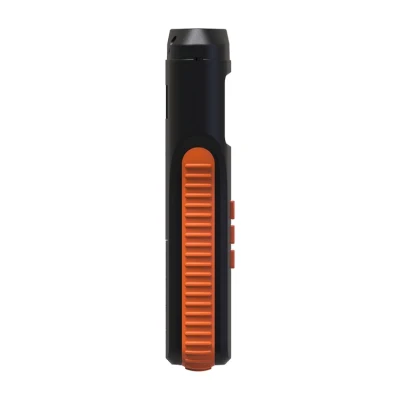

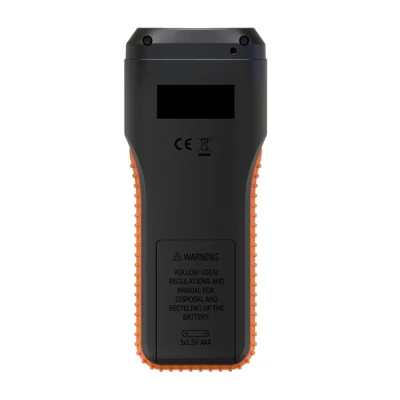

Yw-762f Handheld Non-Contact Optical Tachometer

Looking for a reliable handheld non-contact optical tachometer? Our Yw-762f is the perfect solution. Visit our factory for the best quality products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Specifications
  • Application
  • Related Products
  • FAQ
  • Why Choose Us
Overview

Basic Info.

Model NO.
YW-762F
Contact Accessories
No
Protection Level
IP43
Transport Package
Carton
Specification
190*68*33mm
Trademark
YOWEXA
Origin
Shenzhen, China
Production Capacity
50000PCS/Year

Product Description

YW-762F Handheld Non-Contact Optical Tachometer
Yw-762f Handheld Non-Contact Optical Tachometer

Product Description

Yw-762f Handheld Non-Contact Optical Tachometer

Specifications

DESCRIPTION: YW-762 series of instruments are used to measure rotational speed, line speed and flicker frequency of light source.


YW-762F is photoelectric non-contact measurement, the instrument does not need to contact the object to be tested;
YW-762J is contact measurement, there are four kinds of contact accessories can be replaced, as long as the appropriate accessories can be installed when measuring;
YW-762 includes two measurement methods.



Model YW-762 YW-762J YW-762F
Measuring range Photoelectric speed: 9.0~99999RPM Speed of contact: 1.0~19999RPM Photoelectric speed: 9.0~99999RPM
Light source flicker frequency: 0.1~6000.0Hz Line velocity: 0.10~1999.9m/min Light source flicker frequency:
Speed of contact: 1.0~19999RPM 0.4~6560ft/min 0.1~6000.0Hz
Line velocity: 0.10~1999.9m/min
0.4~6560ft/min
Accuracy ±(0.5% reading+5)
Resolution Photoelectric speed: 0.1RPM (9.0~999.9RPM) Speed of contact: Photoelectric speed:
1RPM (over 1000RPM) 0.1RPM (1.0~999.9RPM) 0.1RPM (9.0~999.9RPM)
Light source flicker frequency: 0.1Hz 1RPM (over 1000RPM) 1RPM (over 1000RPM)
Speed of contact: 0.1RPM (1.0~999.9RPM) Line velocity: Light source flicker frequency: 0.1Hz
1RPM (over 1000RPM) 0.01m/min (0.10~99.99m/min)
Line velocity: 0.01m/min (0.10~99.99m/min) 0.1m/min (over 100m/min)
0.1m/min (over 100m/min) 0.1ft/min (0.4~999.9ft/min)
0.1ft/min (0.4~999.9ft/min) 1ft/min (over 1000ft/min)
1ft/min (over 1000ft/min)
Unit RPM, Hz, m/min, ft/min RPM, m/min, ft/min RPM, Hz
Effective distance 50~500mm (non-contact measurements) No 50~500mm
Range selection Automatic range
Display Large LCD screen with backlight
Contact accessories Yes No
Protection level IP43
Power supply 3 pcs of 1.5V AAA alkaline batteries /1.2V AAA rechargeable batteries
Dimension 190*68*33mm 190*68*33mm 157*65*30mm
Material ABS
weight About 149g About 149g About 126g




Application

Yw-762f Handheld Non-Contact Optical Tachometer

Related Products

Yw-762f Handheld Non-Contact Optical Tachometer

Yw-762f Handheld Non-Contact Optical Tachometer

FAQ

Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our clients.


Q. How long is your lead time for samples?
A. 5-7 days. For bulk orders, 10-30 days depending on the quantity.


Q. What is your terms of payment?
A. 100% for small orders. 30% in advance as deposit and 70% balance before the delivery.


Q. How can we pay?
A. You can pay via T/T, PayPal and Western Union.


Why Choose Us

Shenzhen Yowexa Sensor System Co., Ltd., established in 2010, is a high-tech enterprise with 3 holding subsidiaries and a production area of 1,500 square meters, focusing on the R&D, manufacturing, sales, and solutions of precision measuring instruments and sensors. There are more than 30 R&D personnel and dozens of independent intellectual property rights.
