ASTM D2863 ISO4589 Combustion Performance of Plastic Materials Oxygen Index Tester

Get accurate combustion performance results with our ASTM D2863 ISO4589 Oxygen Index Tester. As a factory, we ensure top-quality plastic materials. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
  • Product Description
  • Factory Overview
  • Customer Feedback
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
ISO4589
Power Supply
220V, 50Hz
Weight
50kg
Dimension
650 mm (W) X 450 mm (D) X 500 mm (H)
Gas Supplies
Oxygen,Nitrogen and Propane
Color
White
Display
LCD Touch Screen
Repeatability
±0.1% Oxygen
Linearity
±0.1% Oxygen
Oxygen Sensor
Paramagnetic Oxygen Sensor
O2 Concentration Measuring Range
0~100%
Response Time
< 10s
Glass Column Inner Diameter
80mm
Height of Glass Column
500mm
Test Time
5 Mins
Transport Package
Plywood Case
Specification
high temperater quartz glass
Trademark
AI
Origin
China
HS Code
9031809090
Production Capacity
50 Sets/Month

Packaging & Delivery

Package Size
65.00cm * 45.00cm * 50.00cm
Package Gross Weight
55.000kg

Product Description

I

Detailed Photos

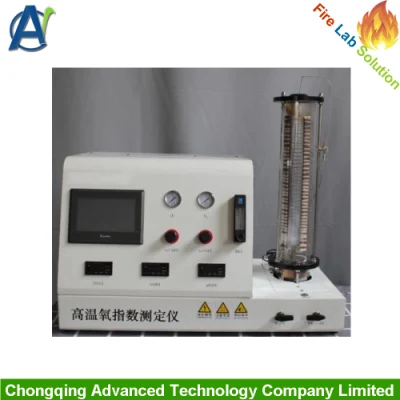

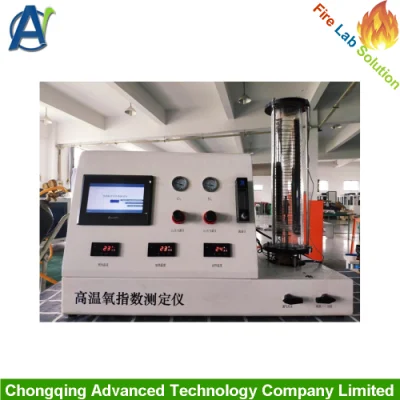

ASTM D2863 ISO4589 Combustion Performance of Plastic Materials Oxygen Index Tester

Product Description

Introduction:
This Limited Oxyen Index Tester for the determination under the test conditions specified in oxygen and nitrogen gas mixture just to maintain a minimum sample combustion oxygen concentration required. This tester is equipped with imported paramagnetic oxygen sensor and imported mass flow controller to make sure the measurement accuracy and durability. For the assessment of the performance of a homogeneous combustion of solid materials, laminates, foams, films and films under specified conditions.

Standard: ASTM D 2863, ISO 4589-2

Technical Parameters:
1, The oxygen concentration measurement range: 0~100%;
2, The oxygen concentration in accuracy of ± 0.1%
3, N2 mass flow controller range:1.0~15.0L/min;Accuracy:2%
4, O2 mass flow controller range:1.0~15.0L/min;Accuracy:2%

5, Oxygen sensor response time: <2s;
6, Response time of equipment < 10s

7, The gas flow rate in combustion column is 40mm / s ± 2mm /s;Concentration regulation accuracy ± 0.1%;
8, The gas flow rate in top of the combustion tube is 90mm ± 10mm/s;
9, Portable igniter, downward spray 16 ± 4mm, flame adjustable range 10 ~ 30mm.
10, The measurement time is 5 mins, and the accuracy is ± 0.5s.
11, Double flow meter and pressure gauge device: accuracy ± 1%;
12.Working pressure:0.1Mpa;
13.Glass column inner diameter: 80mm , heigh 500mm.


Main Features:
1, Imported paramagnetic oxygen oxygen concentration sensor.
2, The oxygen index meter is equipped with a high temperature quartz glass column, the opening DIAM. of column cap is 40mm.

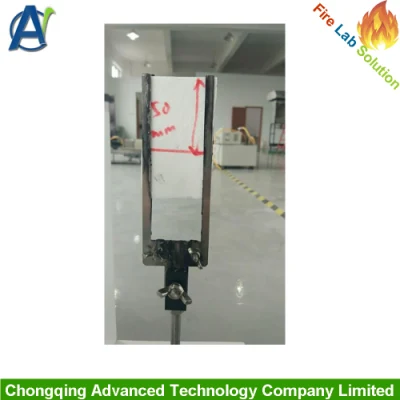

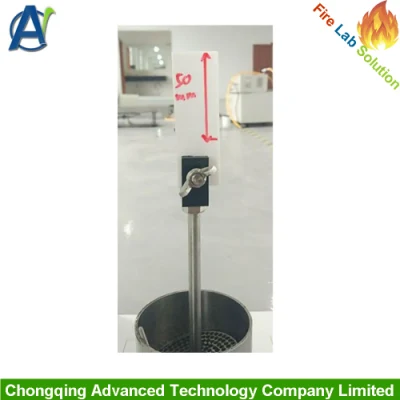

3. The LOI meter is supplied with samples holders for physically self-supporting specimens and supported film or sheet test specimens,
4. Mass flow controller automatically adjusts oxygen and nitrogen gas flow rate according to set concentration.
5. The patented gas flow mixing control unit is equipped with nitrogen and oxygen mass flow controllers to precisely control the gas flow.
6. After the oxygen concentration is set on the screen, the PLC touch screen control system will automatically adjust the oxygen concentration according to the set value. Accurate and convenient;
7. Patented gas mixing chamber ensures more accurate determination of oxygen concentration and more sufficient mixing of oxygen and nitrogen

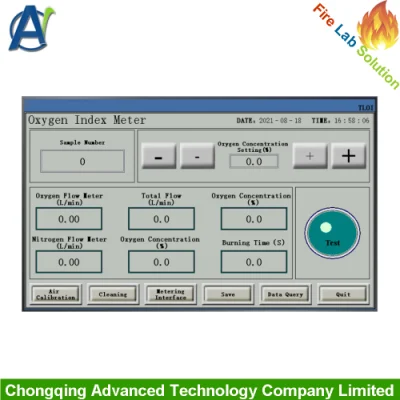

8.The color LCD touch screen displays the parameters of flow, time and test results in real time.
9. The limited oxyen index tester is equipped with special igniter, easy to operate.

Control System:
1,PLC and touch screen make the test more automatic.
2, After the oxygen concentration value is set, the system automatically adjusts the oxygen concentration.
3,The key electrical components are imported, accurate, reliable and durable;
4, The oxygen index tester is equipped with an automatic calibration system to avoid the influence of the oxygen sensor drift due to the environmental impact on the test results.
5.
One button automatic calibration system, convenient and fast, avoid the trouble of regular calibration.
6.The OI tester is e
quipped with safety protection circuit.

Configuration
No. Description No. Place of Origin REMARKS
1 Paramagnetic oxygen sensor 1 UK SERVOMEX
2 O2 Mass flow controller 1 Japan KOFLOC
3 N2 Mass flow controller 1 Japan KOFLOC
4 Flowmeter  1 Japan KOFLOCK
5 Scram button 1 China CHNT
6 Switch 1 China CHNT
7 Circuit breaker 1 China CHNT
8 Relays 5 China CHNT
9 Burning torch 1 China AIC
10 Compression release valve 2 China AirTac
11 Pressure gauge 2 China AirTac
12 PLC 1 China Xinje
13 Touch screen 1 China Xinje
14 Solenoid valve 2 China JULIANG
15 Sample holder 2 China AIC
16 Glass burning tube 2 China AIC
