Basic Info.
Model NO.
DODS615
Item
Digital Dissolved Oxygen Sensor Electrode
Model No.
Dods615
Power/Outlet
9~36VDC/RS485 Modbus RTU
Measurement Methods
Polarography
Housing Material
POM+ Stainless Steel
Waterproof Grade
IP68
Measurement Range
0-20mg/L
Accuracy
±1%F.S
Pressure Range
≤0.3MPa
Temperature Compensation
Ntc10K
Temperature Range
0-50ºC
Measuring/Storage Temperature
0-45ºC
Calibration
Anaerobic Water Calibration
Connection Methods
4 Core Cable
Cable Length
Standard 10m Cable Can Be Extended to 100m
Transport Package
A5 Export Standard Carton
Trademark
OEM
Origin
China
Production Capacity
50000
Product Description

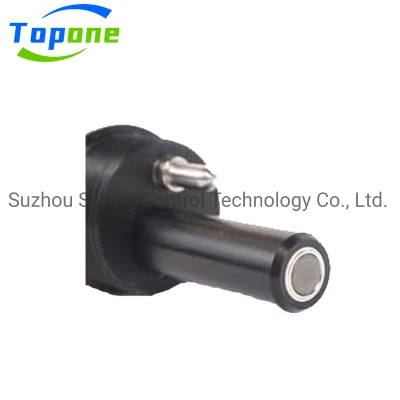

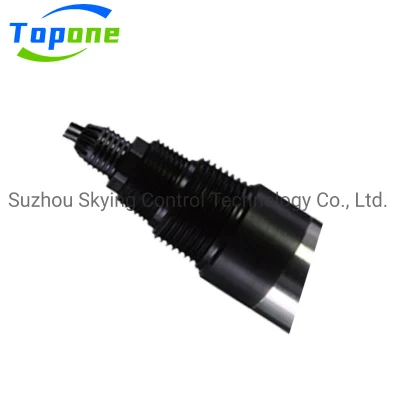

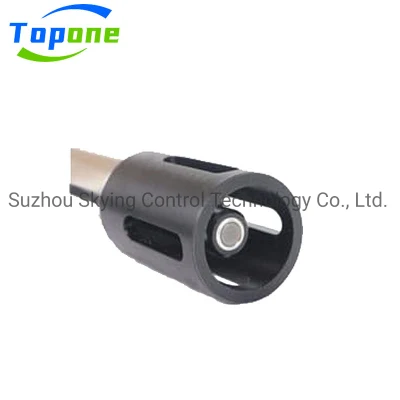

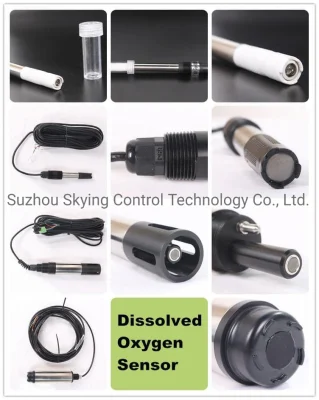

DODS615 Digital Dissolved Oxygen Sensor Electrode
Product Description:
The dissolved oxygen digital sensor has the advantages of high stability, good repeatability and multi-function. It can accurately measure the DO value and temperature value in the solution. Dissolved oxygen sensors are widely used in wastewater treatment, purified water, circulating water, boiler water and other systems, as well as continuous monitoring of dissolved oxygen values in solutions such as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceuticals, fermentation, chemical aquaculture and tap water.
The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be titanium-plated, which also performs well under strong corrosion.
The dissolved oxygen sensor is based on the latest polarographic analysis technology and integrates a silicone rubber permeable membrane as the steel mesh structure of the permeable membrane, which has the advantages of collision resistance, corrosion resistance, high temperature resistance, no deformation, and low maintenance.
The dissolved oxygen sensor is based on the latest polarographic analysis technology, and adopts the integrated production of breathable membrane and membrane head, which is convenient for maintenance and replacement. Suitable for waste water, sewage treatment, aquaculture and other fields.
Technical parameters:
Product Description:
The dissolved oxygen digital sensor has the advantages of high stability, good repeatability and multi-function. It can accurately measure the DO value and temperature value in the solution. Dissolved oxygen sensors are widely used in wastewater treatment, purified water, circulating water, boiler water and other systems, as well as continuous monitoring of dissolved oxygen values in solutions such as electronics, aquaculture, food, printing and dyeing, electroplating, pharmaceuticals, fermentation, chemical aquaculture and tap water.
The electrode body is made of 316L stainless steel, which is corrosion-resistant and more durable. The sea water version can also be titanium-plated, which also performs well under strong corrosion.
The dissolved oxygen sensor is based on the latest polarographic analysis technology and integrates a silicone rubber permeable membrane as the steel mesh structure of the permeable membrane, which has the advantages of collision resistance, corrosion resistance, high temperature resistance, no deformation, and low maintenance.
The dissolved oxygen sensor is based on the latest polarographic analysis technology, and adopts the integrated production of breathable membrane and membrane head, which is convenient for maintenance and replacement. Suitable for waste water, sewage treatment, aquaculture and other fields.
Technical parameters:
Model NO.: DODS615
Power/Outlet: 9~36VDC/RS485 MODBUS RTU
Measurement methods: Polarography
Housing material: POM+ Stainless Steel
Waterproof grade: IP68
Measurement range: 0-20mg/L
Accuracy: ±1%F.S
Pressure range: ≤0.3Mpa
Temperature compensation: NTC10K
Temperature range: 0-50ºC
Measuring/Storage Temperature: 0-45ºC
Calibration: Anaerobic water calibration and air calibration
Connection methods: 4 core cable
Cable length: Standard 10m cable can be extended to 100m
Installation thread: Upper NPT3/4''+1 inch tail thread
Application:
General application, river, lake, drink water, environmental protection, etc.
Production:
Application:
Company profile:
We-Suzhou Skying Control Technology Co., Ltd. is a leading manufacturer, supplier and exporter of water analysis instruments.
We specialize in the production water quality analysis instruments and various sensors:
1. Online PH/ORP meter and sensors; Conductivity meter, TDS meter, dissolved oxygen meter,
fluorescence dissolved oxygen meter, residual chlorine analyzer, chlorine dioxide analyzer,
acid-base salt analyzer, dissolved ozone meter, nitrate meter, turbidity meter,
2. Multi-parameter water quality analysis instrument controller, portable water quality analysis instrument
3. Digital online controllers and sensors, (PH/ORP/Conductivity/TDS/dissolved oxygen/residual chlorine......)
4. COD sensor
5. Pen type
6. Portable
The product range covers industrial, handheld, laboratory, aquarium, agriculture and other application fields.
In addition, we also provide instrument-related products such as instrument protection boxes, integrated systems, and control panels.
Products are widely used in power plants, petrochemicals, mining and metallurgy, environmental protection water treatment, light industry electronics, water plants and drinking water pipe networks, food and beverages, hospitals, hotels, aquaculture, new agricultural planting and biological fermentation processes and other industries.
Excellent Quality, best price, excellent after-sales service and technical support, as well as good communication with customers, that makes us be preferred the partner for many overseas customers.
