Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p

Looking for reliable Fiber Optic Clean Equipment? Our factory offers the handheld Fiber Optical Inspection Probe FLK-FIP-600P for quality inspection.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Main Products:
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
FLK-FIP-600P
Internal Battery
Lithium Battery 4000mAh
Transport Package
Carton Box
Specification
235(W)*95(D)*30(H)mm
Origin
China
HS Code
901380100
Production Capacity
2000pieces/Month

Product Description

Product Description

Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe FLK-FIP-600P

Descriptions
FLK-FIP-600P Handheld Fiber Inspection Probe provides ergonomic ease-of-use and versatile inspection of the endfaces for
fiber optic male and female, single, and multi-channel connectors. Fiber Optic Inspection Probe is a portable video microscope
used to examine installed fiber terminations or ensure terminations are smooth and clean. It can inspect all kinds of fiber optic
terminations, especially for the female ones. It eliminates the need to access the backside of patch panels or disassemble
hardware devices which prior to inspection.

Features
•Rotary metal bracket, stable and convenient.

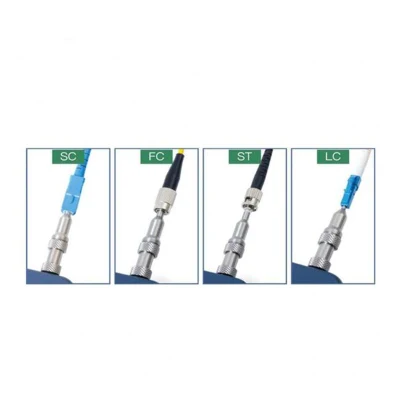

•Compatible / FC/SC/ST/LC/SC female connector/LC male connector

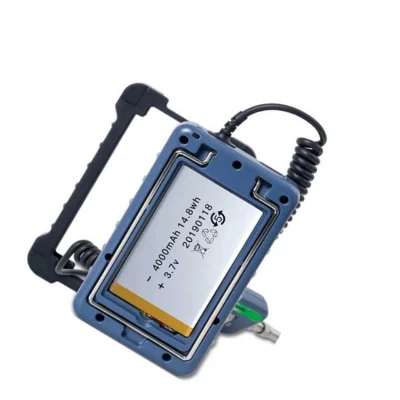

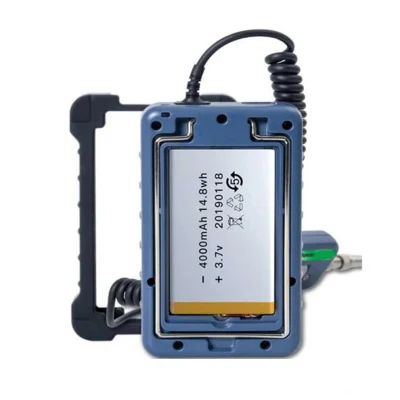

•4000mAH large capacity lithium power, 20 hours standby.
•real time video, support extend t-flash card ,quick check the pollution degree of female connector and male conector
•400 times magnification, the stain is clearly visible.
•3.5 inch HD LCD display.
•1/3 inch sensor, 300,000 effective pixels
•removable Silicon Case, reduce the damage by collising or dropping in a certain extent
Small size, one-handed, convenient and fast

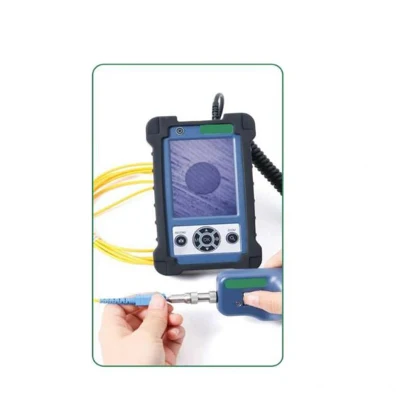

Support Adapter & Connector Inspection
Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600pUSE DISPLAY
Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600pFiber Inspection Probe Performance
Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600pFiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p
Real-time video recording and expansion of TF card, convenient and fast recording of measurement information, Support data
playback to facilitate inspection and data statistics. The panel design is concise, the operation is simple and practical, and the
use is more humanized.
Specifications
Probe
Magnification
400X
Resolution(|jm)
surpass 1.0
Visual range(pm)
0.316*0.285
Dimension(jjm)
235(W)*95(D)*30(H)
Innage Sensor
1/3 480
Storage Temperatrue
-18°C -35°C
Weight(kg)
0.11
3.5-inch LCD display
Image size(mm)
22
Pixels
307200
Video
Frequency
25FPS
LCD screen
960*240 LCD
Video output mode
NTSG/PAL
Playback Format
AVI
User interface
Compatible memory cards
TF
Capacity
8GB
USB
1.1/2.0
Hard disk format
FAT32
Power supply
AC adapter
DC 5V/2A
Internal Battery
Lithium battery 4000Mah
Media Player
>7
Weight(kg)/W*D*H(mm)
0.085/78*22*56

Main Products:

Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p

Company Profile

Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p

Shenzhen Fiberlink Communication Limited,established in 2008 in Shenzhen China, We specialized in Fiber Optic products manufacturing for more than 10 years.  With an area of 15000 square meters and capacity, 20000 pcs fiber optic cables every year.

Our factory:
Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p
Certifications

Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p

Packaging & Shipping




Fiber Optic Clean Equipment Handheld Fiber Optical Inspection Probe Flk-Fip-600p
FAQ

Q1. Can I have a sample before order?
Sure, you can have sample to test firstly, we also can provide free sample, but without shipping fee.


Q2. What about the lead time?
Sample need 3-5days, mass production need 1-2 weeks.


Q3. How do you ship the goods and how long does it take to arrive?
DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q4. Can I need customized color or put logo?
Sure, support OEM and ODM.


Q5. What's your MOQ?
Support small quantity order, and we can negotiate.


Q6. What's your payment terms?
T/T, Western Union are acceptable.


Q7:Why choose us to cooperate?
1.  We have first-class production line and strict quality management system.
2.  We have professional procedure system and big production capacity to guarantee fast deliver and on time shipment.
3.  We can provide the most competitive price to meet your budget.
4.  We also design and innovate the new products based on our rich experience .
5.   We have professional team to provide comprehensive one-stop service for you.
