Machinery Condition Monitoring System

Get reliable Machinery Condition Monitoring System from our factory. Ensure top performance and minimize downtime with our cutting-edge technology.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RH1000
HS Code
9031809090
Production Capacity
1000/Month

Product Description

Introduction:

RH1000 online monitoring station consists 16 vibration and temperature optional channels, 2 process information channels, 1 speed channel. Taking advantage of the patent of RONDS, it can realize synchronous data acquisition with all channels.

Working Diagram:

Machinery Condition Monitoring System


System Features:
  1. Maximal 16 channels synchronous data acquisition
  2. Machine Data Overview
  3. DAQ Definition Group Management & Characteristic Parameter Group Management
  4. Configuration Information Tree
  5. Remote Data Viewing
  6. Plenty of Data Analysis Tools
  7. Automatic Calculation of Characteristic Frequency
  8. Intelligent Alarm Function
  9. Create report Function

Technical Parameters
Max.channels 16 channels vibration/temperature, 1 channel speed, 2 channels processing
Vibration(temperature measurement is optional)
Channel No. 16 channels
Sensor integrated IEPE acceleration sensor High/ low frequency and dual acceleration acquisition synchronously
Input impedance 200kΩ
Input coupling AC
Sensor drive current 4mA@24V
A/D converter 24 bits delta-sigma ADC
  256Hz,512Hz,1280Hz,2560Hz,5120Hz,
12.8KHz,25.6KHz,51.2KHz,102.4kHz

Dynamic range 100dB
Signal range -10~10V
Precision ±1%,160Hz
Frequency response 0.2dB(10Hz ~ 5kHz)
0.6dB(2Hz ~ 20kHz)

Integrated temperature measurement Support
Temperature measurement range -40ºC ~ 120ºC
Temperature measurement range ±2ºC
Speed channel
Channel No. 1 channel
Sensor integrated TTL isolation,12V non isolated,24V PLC isolation
Power output 12VDC
Trigger level 5V,12V,24V
Speed measurement range (1)Against proximity switch,PLC,speed range:0 ~ 20000 RPM.
(2)Against high speed encoder,incremental encoder,shaft encoder,speed range:0 ~ 10000 RPM,impulse per circle:1-2048.

precision ±0.5%
Sway channel(optional for wind turbine tower measurement, sensor model RH123)
Channel No. 1 channel,two axial
Signal range 0~5V
Processing channel(optional)
Channel No. 2 channels
Input impedance voltage:≥ 10kΩ
current:≤ 250Ω

Signal access voltage:-10V ~ 10V
current:4mA ~ 20mA

precision ±0.5%
Signal processing
Acquire long time waveform length 2M samples/CH
Acquire measurement definition length 1K,2K,4K,8K,16K,32K,64K,128K,256K
Spectrum lines 400,800,1600,3200,6400,12800,25600,51200,102400
Basic parameter
CPU frequency 400MHz
Data storage RAM:64M Bytes,Flash:standard 1G Bytes
Internet TCP/IP,10/100baseT,optical fiber(optional)
communications RS485,default 1 channel(2 channels max.) Hardware support for oil and inclinometer incidence sensor access
Using condition
Dimension 400mm×300mm×110mm
Weight <5kg
IP Grade IP65
Working environment -40~70ºC,≤95%RH,non-condensing
Storage environment -50~85ºC,≤95%RH,non-condensing
atmospheric pressure 70kPa ~110kPa The highest altitude is 3000 meters
Power supply
Working voltage Outdoor: 220VAC±20%,50~60Hz
Indoor: 12-24VDC
Need to replace transformer to support 85~135VAC
Consumption <8W
Certification
Certificate CE
Immunity to electromagnetic interference
ESD immunity EN61000-4-2  4 level ±8kV(contact discharge)   ±15kV(air discharge)
Radio frequency electromagnetic radiation immunity EN61000-4-3  3 level 10V/m
EFT immunity EN61000-4-4  4 level ±4kV
Surge immunity EN61000-4-5  4 level ±4kV
radio frequency transmission immunity EN61000-4-6  3 level 10V
Magnetic field immunity EN61000-4-8  5 level  100A/m
Impulse magnetic field immunity EN61000-4-9  5 level 1000A/m
Damped oscillation field immunity EN61000-4-10  5 level  100A/m
Voltage drop, interrupt, and voltage fluctuation immunity EN61000-4-11  60% rated voltage 10  cycles


MOS3000 Software

Machinery Condition Monitoring System
Machinery Condition Monitoring System

Machinery Condition Monitoring System
Machinery Condition Monitoring System

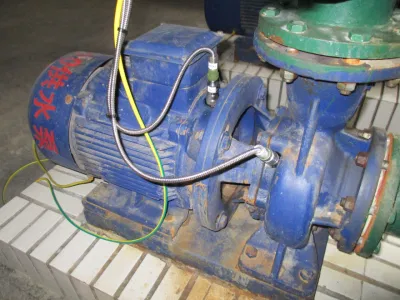

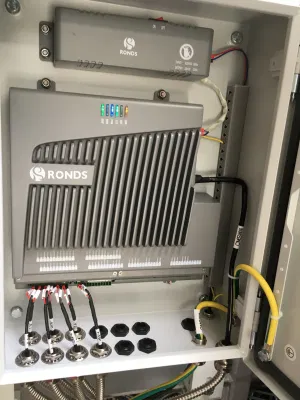

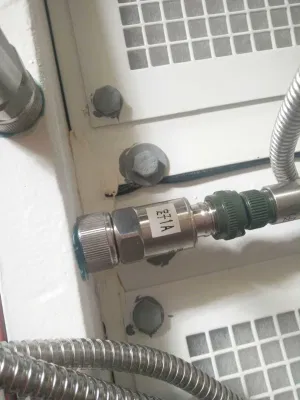

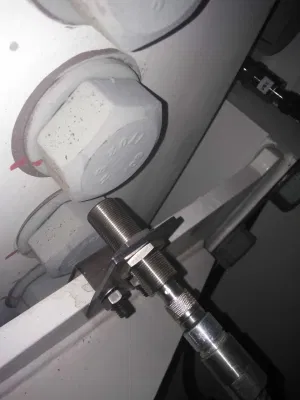

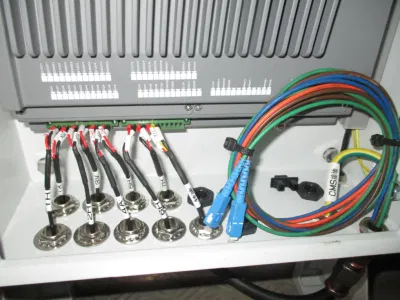

Site Installation
