Optical Encoder Disk

Welcome to our factory! We produce high-quality optical encoder disks designed to provide precise and accurate motion control for various industrial applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Package
SMD
Installation Form
Axonia
Brand
None
Axonia
Servo Installation Type
Material
Stainless Steel
Process
Chemical Etching
Finish
Polish
Packing
Each in an Wood Packing
Original Country
China
Production
10000PCS Per Month
Size
8*3
Transport Package
Each in a Poly Bag
Specification
8*5*3cm
Trademark
None
Origin
China
HS Code
7613405000
Production Capacity
50000PC Per Year

Product Description

Encoder specifiction:

Machining Type

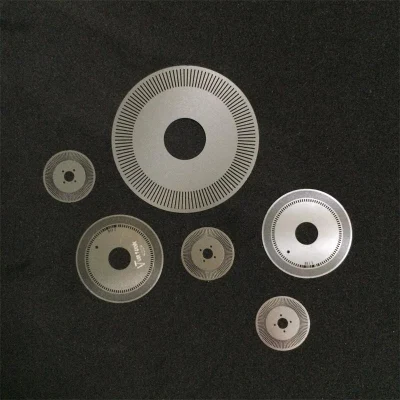

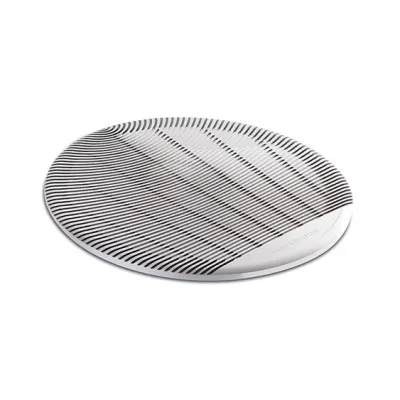

photo chemical etching stainless steel precision optical encoder disk

Material Capabilities Brass, Bronze, Copper, Hardened Metals, Precious Metals, Stainless Steel, Aluminum, Alloy (Thickness from 0.03 mm up to 1 mm)
Product Dimension 220*280 mm
Product precision 0.01
Smallest open hole D= 0.1mm when Thickness range from 0.03mm to 0.05mm
1.5*Thickness
Centre to Centre for holes 1.5*Thickness
Surface treatment Surface treatment


Optical Encoder Disk

Our factory specializes in hardware precision etching processing.
The precision parts of etching processing are widely used in electronic communication, automobile manufacturing, aerospace , automobile manufacturing, medical equipment, instruments, hardware and home appliances and other industries.


At present, Our company has two production line factory.both located in dalang town Dongguan city.The factory covers a total area of 20,000 square meters and has more than 200 employees. Now the company has 8 etching production lines, the new planned production base will build 8 industrial advanced automatic etching production lines, and put into the international advanced continuous exposure equipment, which can carry out the continuous etching processing of roll to roll.


At present,Our factory has passed ISO9001 quality management system and QC080000 hazardous substances management system; The ISO14001 environmental management system is being imported into Hongfu Plant. We are good at etching precision parts with high quality requirements and complicated difficulty. We can process products with thickness range of 0.02-2.0mm, and the minimum tolerance of product size can be controlled within ±0.005mm

Optical Encoder Disk Optical Encoder Disk Optical Encoder Disk Optical Encoder Disk Optical Encoder Disk
