Smoke Alarm Fire Detector with Optical Photoelectric Sensor

Protect your home with our Smoke Alarm Fire Detector with Optical Photoelectric Sensor. As a factory, we ensure reliable and high-quality fire detection products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
PZ168
Wire Type
Standalone Wireless
Power
9V Battery
Standard
Ce
Input Type
Soud and Light
Transport Package
Carton
Specification
110*60MM
Trademark
detector
Origin
China
HS Code
8531100000
Production Capacity
500000/Month

Product Description

Features:
Independent installation on ceilings and walls, with mounting bracket, which is easy to install and do not need to debug.
With specially designed cover, can protect it from dust.
Built-in dedicated IC: with stable performance and high sensitivity.
Can monitor air and detect smoke with optical principles. When it reaches the maximum amount that the chamber can bear, it will alert.
LED light flash indicator.
Low battery indication.
With a test button: can take analog alarm tests of the smoke alarm.
Can warn and alert people to stay far away from dangerous field when it detects smoke.
Suitable for use in house, shop, school, office building, storage areas, etc.

Specifications:
Color: white
Material: ABS

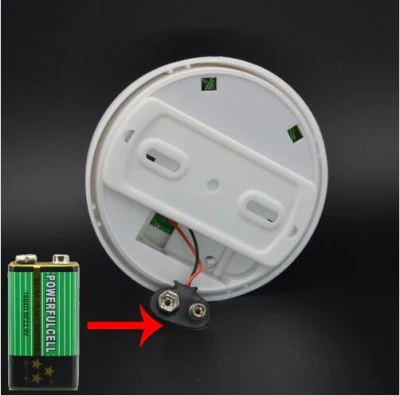

Power supply: 9V battery (not included)
Standby current:<=10μA
Alarm current:<=15mA
Operating voltage: DC9V
Alarm indication: red LED flash & sound
Loudness:<=120dB
Operating temperature: -10 degrees centigrade to +50 degrees centigrade
Operating humidity:<=95%RH (40+/-2 degrees centigrade)
Detecting area: 60 sqm
Item size: 3.4 * 10.7cm/ 1.3 * 4.2in (diameter)
Item weight: 100g/ 3.5oz
Package size: 10.5 * 10.5 * 4cm/ 4.1 * 4.1 * 1.5in
Package weight: 133g/ 4.7oz

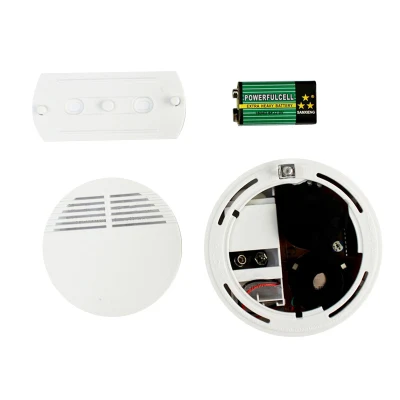

Packing list:
1 * Smoke alarm
1 * Bag of screws
1 * User manual
